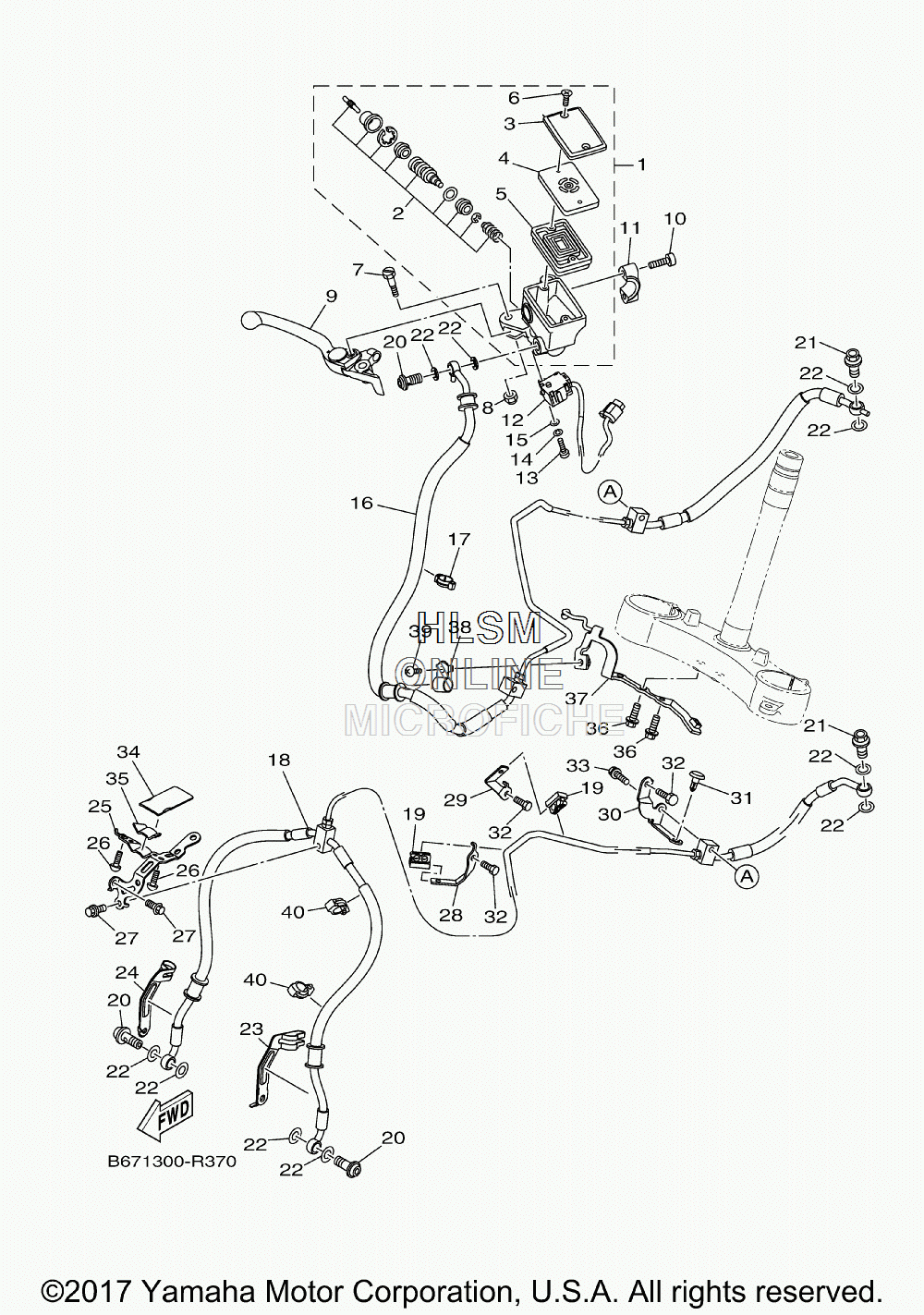

BRAKE - FRONT MASTER CYLINDER для Yamaha FZ10 - 2017 года выпуска
-
№АртикулНазвание
-
11XB-2580A-00-00 MASTER CYLINDER SUB ASSY 2MASTER CYLINDER SUB ASSY 2
-
21WS-25807-00-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
35VS-25852-00-00 ...CAP, RESERVOIR...CAP, RESERVOIR
-
45VS-25855-00-00 ......BUSH, DIAPHRAGM......BUSH, DIAPHRAGM
-
520S-25854-00-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
65VS-2589H-00-00 ...SCREW...SCREW
-
75VS-2589F-00-00 BOLT, LEVERBOLT, LEVER
-
895617-06100-00 NUT, S/LNUT, S/L
-
95VS-83922-00-00 LEVER 2LEVER 2
-
105VS-26332-00-00 BOLTBOLT
-
115VS-25867-00-00 BRACKET, MASTER CYLINDERBRACKET, MASTER CYLINDER
-
12B67-83980-00-00 FRONT STOP SWITCH ASSYFRONT STOP SWITCH ASSY
-
1398502-04012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1492902-04100-00 WASHER, SPRINGWASHER, SPRING
-
1592902-04600-00 WASHER, PLATEWASHER, PLATE
-
16B67-2584A-00-00 BRAKE HOSE ASSYBRAKE HOSE ASSY
-
1790464-14003-00 CLAMPCLAMP
-
18B67-2584B-00-00 HOSE, BRAKEHOSE, BRAKE
-
1990464-07014-00 CLAMPCLAMP
-
2090401-10172-00 BOLT, UNIONBOLT, UNION
-
2190401-10049-00 BOLT, UNIONBOLT, UNION
-
2290430-10005-00 GASKETGASKET
-
232CR-25875-00-00 HOLDER, BRAKE HOSE 1HOLDER, BRAKE HOSE 1
-
242CR-25876-00-00 HOLDER, BRAKE HOSE 2HOLDER, BRAKE HOSE 2
-
25B67-2612E-00-00 BRACKETBRACKET
-
2692017-06016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2795027-06014-00 BOLT, FLANGEBOLT, FLANGE
-
282CR-2612K-00-00 BRACKET 2BRACKET 2
-
292CR-2612L-00-00 BRACKET 3BRACKET 3
-
30B67-2612M-00-00 BRACKET 4BRACKET 4
-
3190269-08005-00 RIVETRIVET
-
3297022-06016-00 BOLT, HEXAGONBOLT, HEXAGON
-
3395022-06030-00 BOLT, FLANGEBOLT, FLANGE
-
343YL-12232-00-00 DAMPERDAMPER
-
352CR-2622F-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
3690110-06218-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
37B67-23377-00-00 BRACKET, HORNBRACKET, HORN
-
3890461-10132-00 CLAMPCLAMP
-
3992012-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
4090464-12013-00 CLAMPCLAMP
