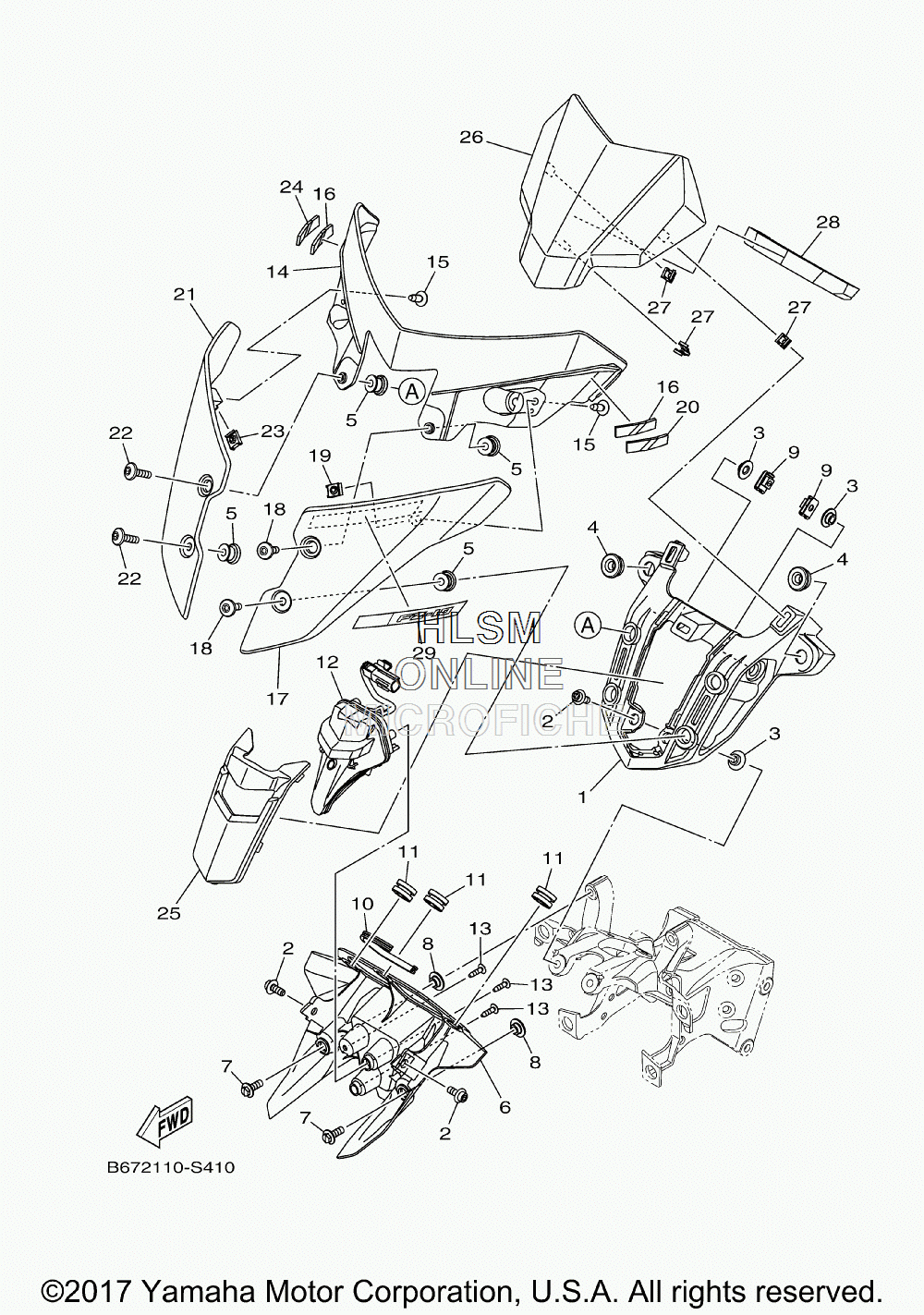

COWLING 2 для Yamaha FZ10 - 2017 года выпуска
-
№АртикулНазвание
-
1B67-28357-00-00 STAY 2STAY 2
-
290110-06245-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
390387-06170-00 COLLARCOLLAR
-
490480-13398-00 GROMMETGROMMET
-
590179-06072-00 NUTNUT
-
6B67-2836R-00-00 PANEL, INNER 5PANEL, INNER 5
-
790105-06170-00 BOLT, FLANGEBOLT, FLANGE
-
890387-06170-00 COLLARCOLLAR
-
990183-060A6-00 NUT, SPRINGNUT, SPRING
-
102D1-24785-00-00 MOLD, SEATMOLD, SEAT
-
114XV-83513-00-00 DAMPERDAMPER
-
12B67-84301-00-00 PILOT LIGHT ASSY 1PILOT LIGHT ASSY 1
-
1397702-40016-00 SCREW, TAPPINGSCREW, TAPPING
-
14B67-23121-00-00 COVER, UPPER 1COVER, UPPER 1
-
1597707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
164XV-2411G-00-00 HOOK, SIDE COVER 1HOOK, SIDE COVER 1
-
17B67-23122-00-P0 COVER, OUTER 1 (MDNM6 - DARK METALLIC)COVER, OUTER 1 (MDNM6 - DARK METALLIC)
-
17B67-23122-00-P2 COVER, OUTER 1 (BNS4 - BLUISH GRAY)COVER, OUTER 1 (BNS4 - BLUISH GRAY)
-
1890111-06123-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1990183-05042-00 NUT, SPRINGNUT, SPRING
-
204XV-2411G-00-00 HOOK, SIDE COVER 1HOOK, SIDE COVER 1
-
21B67-23132-00-P0 COVER, OUTER 2 (MDNM6 - DARK METALLIC)COVER, OUTER 2 (MDNM6 - DARK METALLIC)
-
21B67-23132-00-P2 COVER, OUTER 2 (BNS4 - BLUISH GRAY)COVER, OUTER 2 (BNS4 - BLUISH GRAY)
-
2290111-06123-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2390183-05042-00 NUT, SPRINGNUT, SPRING
-
244XV-2411G-00-00 HOOK, SIDE COVER 1HOOK, SIDE COVER 1
-
25B67-28261-00-00 PANELPANEL
-
26B67-83559-00-00 COVER, METERCOVER, METER
-
2790468-040A0-00 CLIPCLIP
-
2890520-20003-00 DAMPER, PLATEDAMPER, PLATE
-
29B67-2832B-40-00 GRAPHIC, 15 (BNS4 - BLUISH GRAY)GRAPHIC, 15 (BNS4 - BLUISH GRAY)
-
29B67-2832B-30-00 GRAPHIC, 15 (MDNM6 - DARK METALLIC)GRAPHIC, 15 (MDNM6 - DARK METALLIC)
