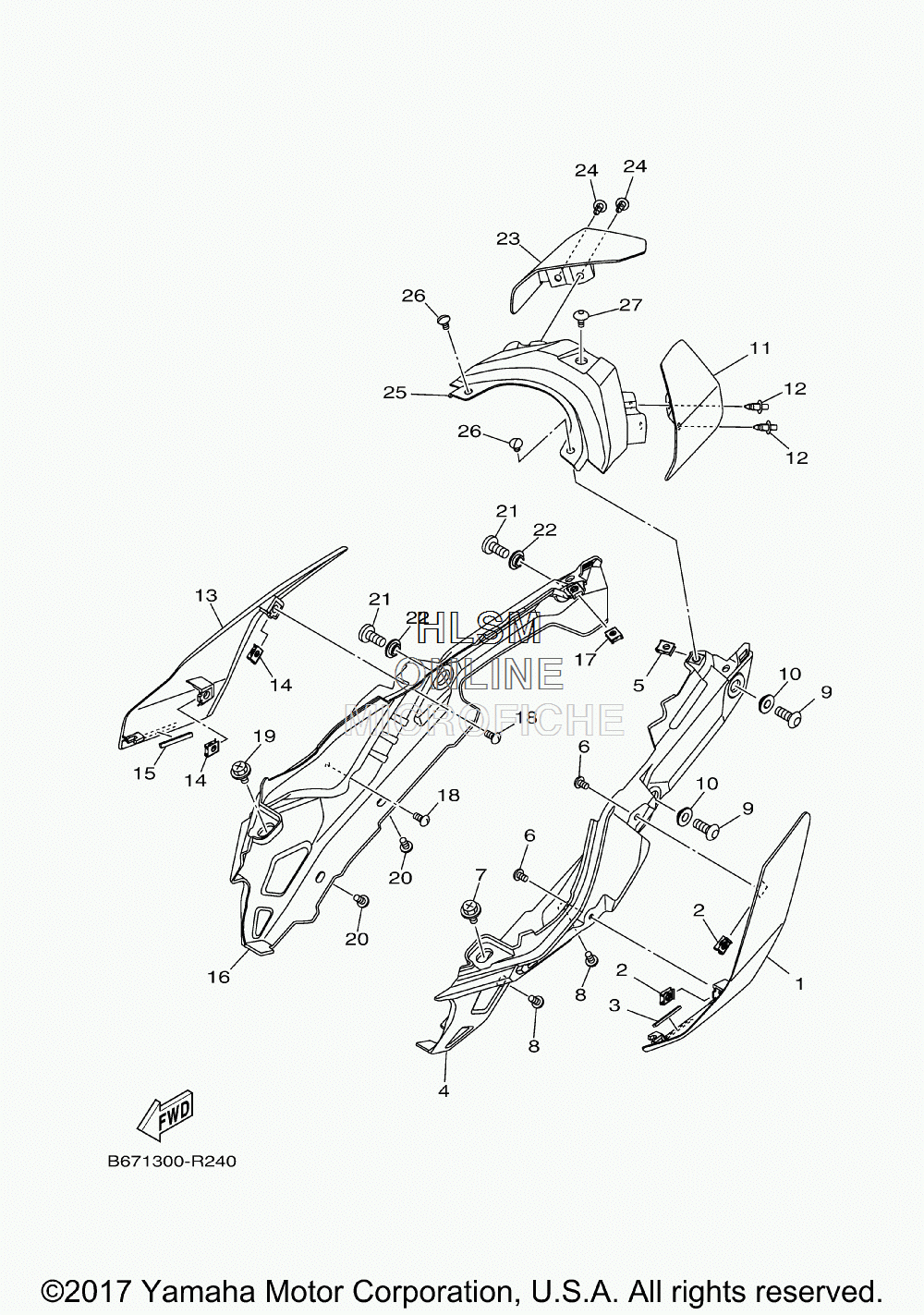

SIDE COVER для Yamaha FZ10 - 2017 года выпуска
-
№АртикулНазвание
-
1B67-21711-00-P0 COVER, SIDE 1 (FOR MDNM6 - MAT DARK METALLIC)COVER, SIDE 1 (FOR MDNM6 - MAT DARK METALLIC)
-
1B67-21711-00-P2 COVER, SIDE 1 (MBL2 - MAT BLACK FOR BNS4 - BLUISH GRAY)COVER, SIDE 1 (MBL2 - MAT BLACK FOR BNS4 - BLUISH GRAY)
-
290183-05042-00 NUT, SPRINGNUT, SPRING
-
32C0-28247-00-00 DAMPER 4DAMPER 4
-
4B67-21731-00-00 COVER, SIDE 3COVER, SIDE 3
-
590183-05042-00 NUT, SPRINGNUT, SPRING
-
697702-50012-00 SCREW, TAPPINGSCREW, TAPPING
-
790109-06202-00 BOLTBOLT
-
890269-07007-00 RIVETRIVET
-
990111-08010-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1090387-08079-00 COLLARCOLLAR
-
11B67-2471K-00-00 COVER, TAIL 1COVER, TAIL 1
-
1290269-06008-00 RIVETRIVET
-
13B67-21721-00-P0 COVER, SIDE 2 (FOR MDNM6 - MAT DARK METALLIC)COVER, SIDE 2 (FOR MDNM6 - MAT DARK METALLIC)
-
13B67-21721-00-P2 COVER, SIDE 2 (MBL2 - MAT BLACK FOR BNS4 - BLUISH GRAY)COVER, SIDE 2 (MBL2 - MAT BLACK FOR BNS4 - BLUISH GRAY)
-
1490183-05042-00 NUT, SPRINGNUT, SPRING
-
152C0-28247-00-00 DAMPER 4DAMPER 4
-
16B67-21741-00-00 COVER, SIDE 4COVER, SIDE 4
-
1790183-05042-00 NUT, SPRINGNUT, SPRING
-
1897702-50012-00 SCREW, TAPPINGSCREW, TAPPING
-
1990109-06202-00 BOLTBOLT
-
2090269-07007-00 RIVETRIVET
-
2190111-08010-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2290387-08079-00 COLLARCOLLAR
-
23B67-2472K-00-00 COVER, TAIL 2COVER, TAIL 2
-
2490269-06008-00 RIVETRIVET
-
25B67-2171E-00-00 COVER, SIDE 5COVER, SIDE 5
-
2697702-50012-00 SCREW, TAPPINGSCREW, TAPPING
-
2790111-05045-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
