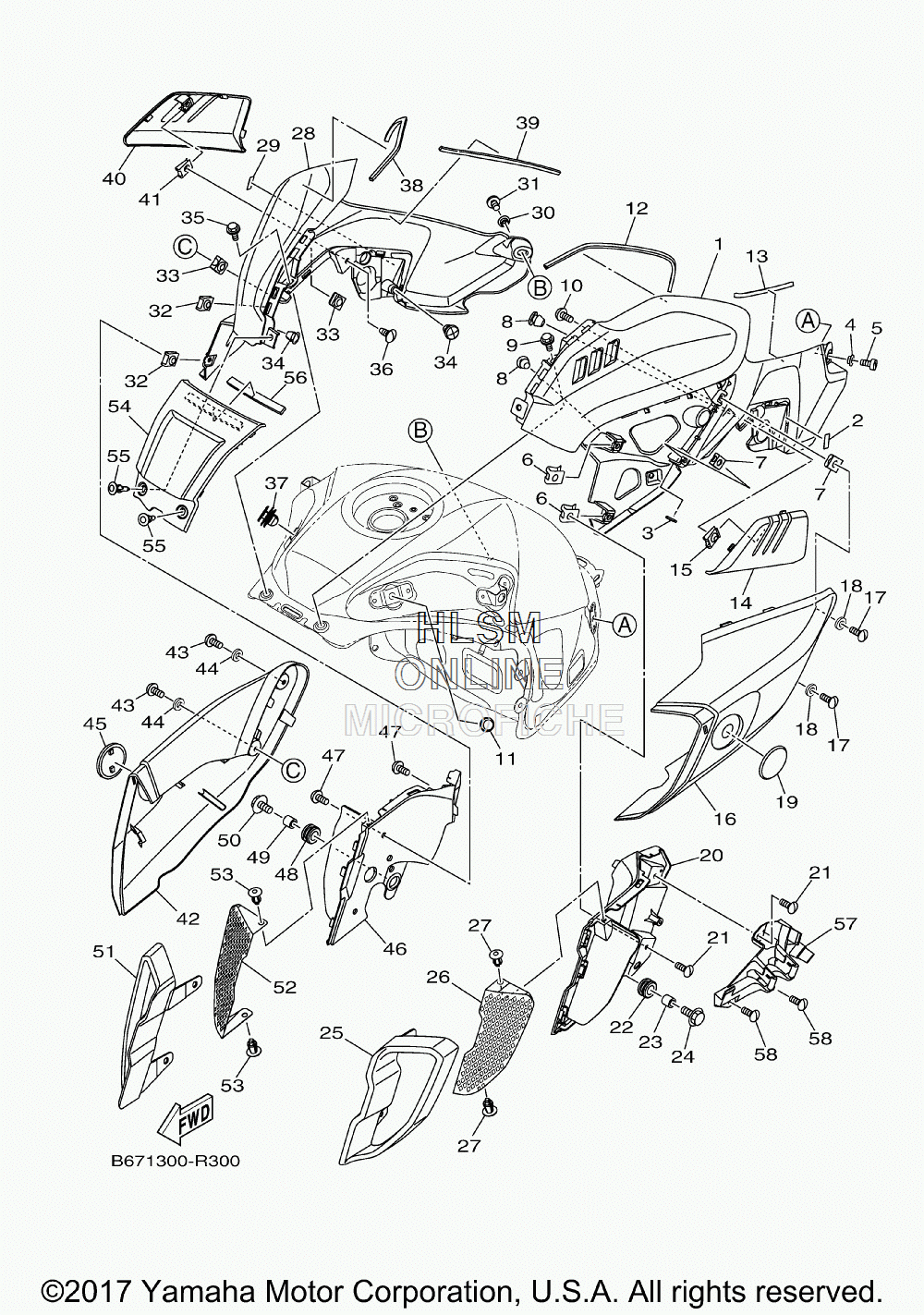

FUEL TANK SIDE COVER для Yamaha FZ10 - 2017 года выпуска
-
№АртикулНазвание
-
1B67-24129-00-P0 COVER, SIDE 1 (DNMG - DARK GRAY FOR MDNM6 - DARK METALLIC)COVER, SIDE 1 (DNMG - DARK GRAY FOR MDNM6 - DARK METALLIC)
-
1B67-24129-00-P2 COVER, SIDE 1 (BNS4 - BLUISH GRAY)COVER, SIDE 1 (BNS4 - BLUISH GRAY)
-
21S4-2476U-00-00 PROTECTOR 1PROTECTOR 1
-
390520-01001-00 DAMPER, PLATEDAMPER, PLATE
-
490387-05035-00 COLLARCOLLAR
-
598902-05008-00 SCREW, BINDSCREW, BIND
-
690183-05042-00 NUT, SPRINGNUT, SPRING
-
790183-05076-00 NUT, SPRINGNUT, SPRING
-
890338-06018-00 PLUGPLUG
-
990110-05014-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1097702-50012-00 SCREW, TAPPINGSCREW, TAPPING
-
1190269-09006-00 RIVETRIVET
-
124C8-21746-00-00 DAMPERDAMPER
-
135YU-2177N-00-00 DAMPER, LOCATING 4DAMPER, LOCATING 4
-
14B67-28345-00-00 MOLE 1MOLE 1
-
1590183-05042-00 NUT, SPRINGNUT, SPRING
-
16B67-2137W-00-P0 SCOOP, AIR 1 (MDNM6 - DARK METALLIC)SCOOP, AIR 1 (MDNM6 - DARK METALLIC)
-
16B67-2137W-00-P1 SCOOP, AIR 1 (MBL2 - MAT BLACK FOR BNS4 - BLUISH GRAY)SCOOP, AIR 1 (MBL2 - MAT BLACK FOR BNS4 - BLUISH GRAY)
-
1790111-05021-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1890202-05180-00 WASHER, PLATEWASHER, PLATE
-
191RC-2413B-00-00 EMBLEMEMBLEM
-
20B67-2172E-00-P0 STAY, SIDE COVER 1 (MDNM6 - DARK METALLIC)STAY, SIDE COVER 1 (MDNM6 - DARK METALLIC)
-
20B67-2172E-00-P1 STAY, SIDE COVER 1 (MBL2 - MAT BLACK FOR BNS4 - BLUISH GRAY)STAY, SIDE COVER 1 (MBL2 - MAT BLACK FOR BNS4 - BLUISH GRAY)
-
2197707-50014-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
2290480-14003-00 GROMMETGROMMET
-
2390387-06260-00 COLLARCOLLAR
-
2495802-06016-00 BOLT, FLANGEBOLT, FLANGE
-
25B67-27475-00-P0 CAP 1 (DNMG - DARK GRAY FOR MDNM6 - DARK METALLIC)CAP 1 (DNMG - DARK GRAY FOR MDNM6 - DARK METALLIC)
-
25B67-27475-00-P1 CAP 1 (MBL2 - MAT BLACK FOR BNS4 - BLUISH GRAY)CAP 1 (MBL2 - MAT BLACK FOR BNS4 - BLUISH GRAY)
-
26B67-2837N-00-00 GRILL, AIR INTAKE 1GRILL, AIR INTAKE 1
-
2790269-06019-00 RIVETRIVET
-
28B67-24139-00-P0 COVER, SIDE 2 (DNMG - DARK GRAY FOR MDNM6 - DARK METALLIC)COVER, SIDE 2 (DNMG - DARK GRAY FOR MDNM6 - DARK METALLIC)
-
28B67-24139-00-P2 COVER, SIDE 2 (OPT)COVER, SIDE 2 (OPT)
-
291S4-2476U-00-00 PROTECTOR 1PROTECTOR 1
-
3090387-05035-00 COLLARCOLLAR
-
3198902-05008-00 SCREW, BINDSCREW, BIND
-
3290183-05042-00 NUT, SPRINGNUT, SPRING
-
3390183-05076-00 NUT, SPRINGNUT, SPRING
-
3490338-06018-00 PLUGPLUG
-
3590110-05014-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3697702-50012-00 SCREW, TAPPINGSCREW, TAPPING
-
3790269-09006-00 RIVETRIVET
-
384C8-21746-00-00 DAMPERDAMPER
-
395YU-2177N-00-00 DAMPER, LOCATING 4DAMPER, LOCATING 4
-
40B67-28346-00-00 MOLE 2MOLE 2
-
4190183-05042-00 NUT, SPRINGNUT, SPRING
-
42B67-2137X-00-P0 SCOOP, AIR 2 (MDNM6 - DARK METALLIC)SCOOP, AIR 2 (MDNM6 - DARK METALLIC)
-
42B67-2137X-00-P1 SCOOP, AIR 2 (MBL2 - MAT BLACK FOR BNS4 - BLUISH GRAY)SCOOP, AIR 2 (MBL2 - MAT BLACK FOR BNS4 - BLUISH GRAY)
-
4390111-05021-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
4490202-05180-00 WASHER, PLATEWASHER, PLATE
-
451RC-2413B-00-00 EMBLEMEMBLEM
-
46B67-2174E-00-P0 STAY, SIDE COVER 2 (MDNM6 - DARK METALLIC)STAY, SIDE COVER 2 (MDNM6 - DARK METALLIC)
-
46B67-2174E-00-P1 STAY, SIDE COVER 2 (MBL2 - MAT BLACK FOR BNS4 - BLUISH GRAY)STAY, SIDE COVER 2 (MBL2 - MAT BLACK FOR BNS4 - BLUISH GRAY)
-
4797707-50014-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
4890480-14003-00 GROMMETGROMMET
-
4990387-06260-00 COLLARCOLLAR
-
5095802-06016-00 BOLT, FLANGEBOLT, FLANGE
-
51B67-27476-00-P0 CAP 2 (DNMG - DARK GRAY FOR MDNM6 - DARK METALLIC)CAP 2 (DNMG - DARK GRAY FOR MDNM6 - DARK METALLIC)
-
51B67-27476-00-P1 CAP 2 (MBL2 - MAT BLACK FOR BNS4 - BLUISH GRAY)CAP 2 (MBL2 - MAT BLACK FOR BNS4 - BLUISH GRAY)
-
52B67-2837R-00-00 GRILL, AIR INTAKE 2GRILL, AIR INTAKE 2
-
5390269-06019-00 RIVETRIVET
-
54B67-241B1-00-P0 COVER, TANK (DNMG - DARK GRAY FOR MDNM6 - DARK METALLIC)COVER, TANK (DNMG - DARK GRAY FOR MDNM6 - DARK METALLIC)
-
54B67-241B1-00-P2 COVER, TANK (BNS4 - BLUISH GRAY)COVER, TANK (BNS4 - BLUISH GRAY)
-
5590269-06008-00 RIVETRIVET
-
564B5-2174X-00-00 DAMPERDAMPER
-
57B67-2172M-00-00 BRACKET 3BRACKET 3
-
5897707-50014-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
