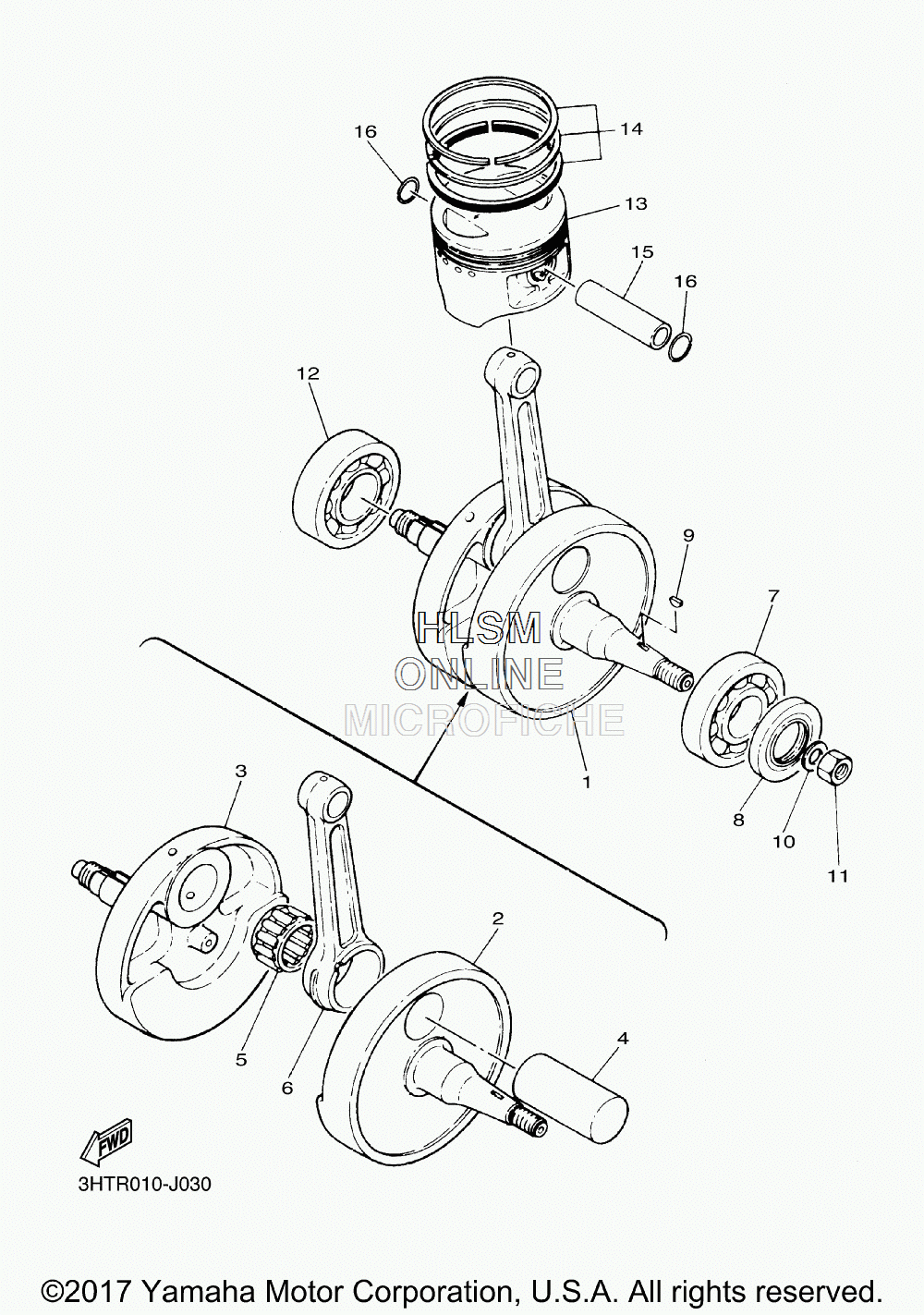

CRANKSHAFT - PISTON для Yamaha SR400 - 2017 года выпуска
-
№АртикулНазвание
-
12H6-11400-01-00 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
22H6-11412-00-00 ...CRANK 1...CRANK 1
-
32H6-11422-01-00 ...CRANK 2...CRANK 2
-
4583-11681-01-00 ...PIN, CRANK 1...PIN, CRANK 1
-
593310-635A5-00 ...BEARING...BEARING
-
62H6-11651-00-00 ...ROD, CONNECTING...ROD, CONNECTING
-
793306-30630-00 BEARINGBEARING
-
893102-30145-00 OIL SEALOIL SEAL
-
990280-05048-00 KEY, WOODRUFFKEY, WOODRUFF
-
1090201-12593-00 WASHER, PLATEWASHER, PLATE
-
1190170-12347-00 NUTNUT
-
1293306-30702-00 BEARINGBEARING
-
132H6-11631-01-96 PISTON (STD)PISTON (STD)
-
14583-11610-02-00 PISTON RING SET (STD)PISTON RING SET (STD)
-
152J2-11633-01-00 PIN, PISTONPIN, PISTON
-
1693450-22027-00 CIRCLIPCIRCLIP
