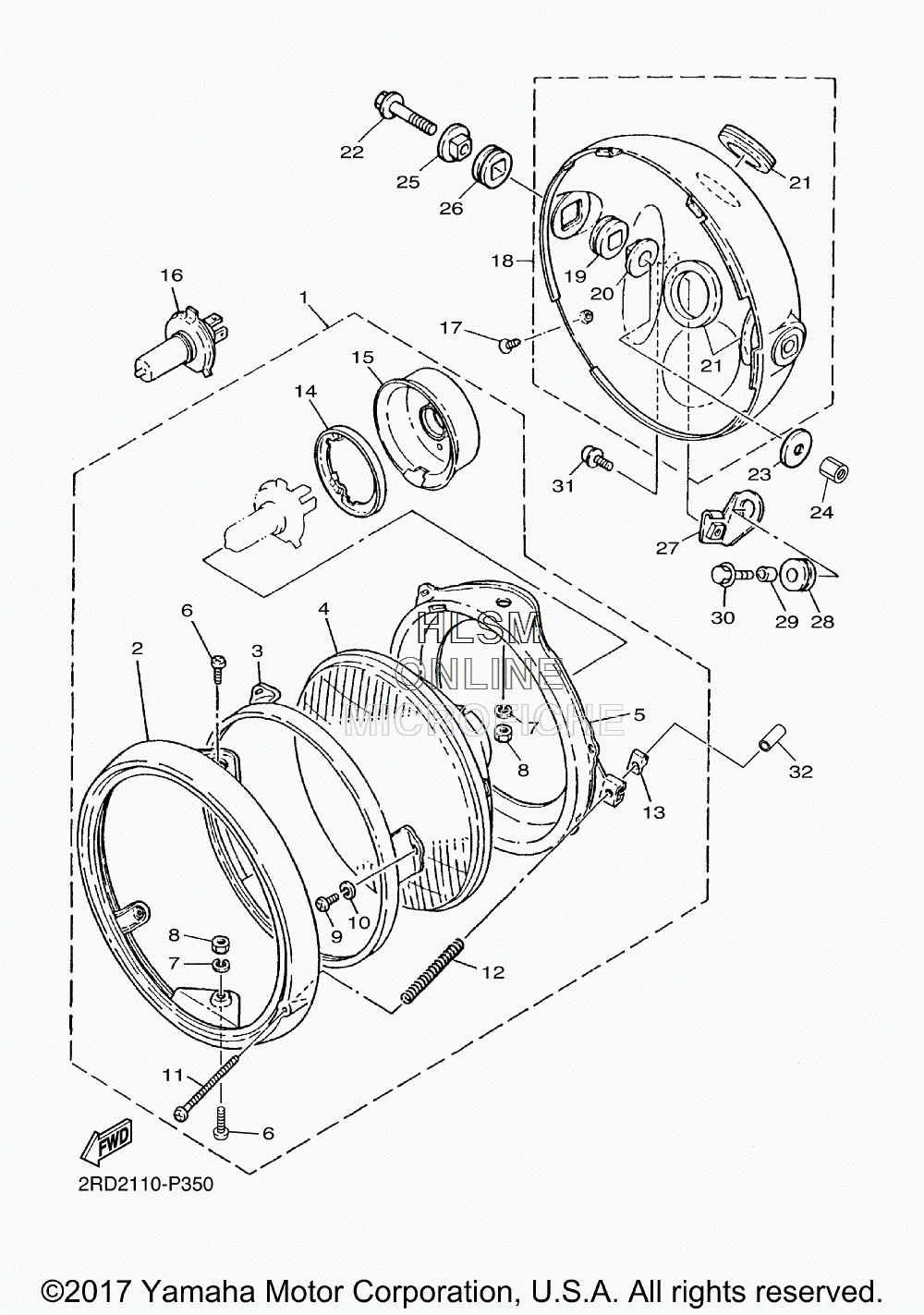

HEADLIGHT для Yamaha SR400 - 2017 года выпуска
-
№АртикулНазвание
-
12F3-84303-A0-00 HEADLIGHT UNIT ASSYHEADLIGHT UNIT ASSY
-
2341-84315-40-00 ...RIM, HEADLIGHT...RIM, HEADLIGHT
-
32F9-84395-00-00 ...RING, RETAINING...RING, RETAINING
-
42F3-84321-A0-00 ...LENS ASSY...LENS ASSY
-
52F9-84394-00-00 ...RING, MOUNTING...RING, MOUNTING
-
61JK-84365-09-00 ...SCREW...SCREW
-
792901-05100-00 ...WASHER, SPRING...WASHER, SPRING
-
895302-04600-00 ...NUT, HEXAGON...NUT, HEXAGON
-
998501-04008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1092901-04100-00 ...WASHER, SPRING...WASHER, SPRING
-
112F9-84331-00-00 ...SCREW, RIM ADJUSTING...SCREW, RIM ADJUSTING
-
12341-84332-60-00 ...SPRING, SCREW...SPRING, SCREW
-
13198-84334-60-00 ...NUT, ADJUSTING...NUT, ADJUSTING
-
142F9-84375-00-00 ...SETTING PLATE, BULB...SETTING PLATE, BULB
-
152F9-84397-01-00 ...COVER, SOCKET...COVER, SOCKET
-
162F9-84314-00-00 BULB (12V-60/55W) (H4) HALOGENBULB (12V-60/55W) (H4) HALOGEN
-
1790152-05005-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
182J2-84330-60-93 BODY ASSYBODY ASSY
-
19584-84345-60-00 ...DAMPER, HEADLIGHT...DAMPER, HEADLIGHT
-
20584-84338-60-00 ...COLLAR, BODY FITTING...COLLAR, BODY FITTING
-
21214-84153-60-00 ...GROMMET, WIREHERNESS...GROMMET, WIREHERNESS
-
2290105-08244-00 BOLT, FLANGEBOLT, FLANGE
-
2390209-08098-00 WASHERWASHER
-
2490170-08009-00 NUTNUT
-
25341-83316-02-00 COLLAR, FLASHER 1COLLAR, FLASHER 1
-
26341-83321-01-00 DAMPER, FLASHER 1DAMPER, FLASHER 1
-
273HT-84318-00-00 STAY, HEADLIGHT 1STAY, HEADLIGHT 1
-
2890480-14229-00 GROMMETGROMMET
-
2990387-0714B-00 COLLARCOLLAR
-
3090119-06038-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3190159-06160-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
323HT-84385-00-00 CAP,1CAP,1
