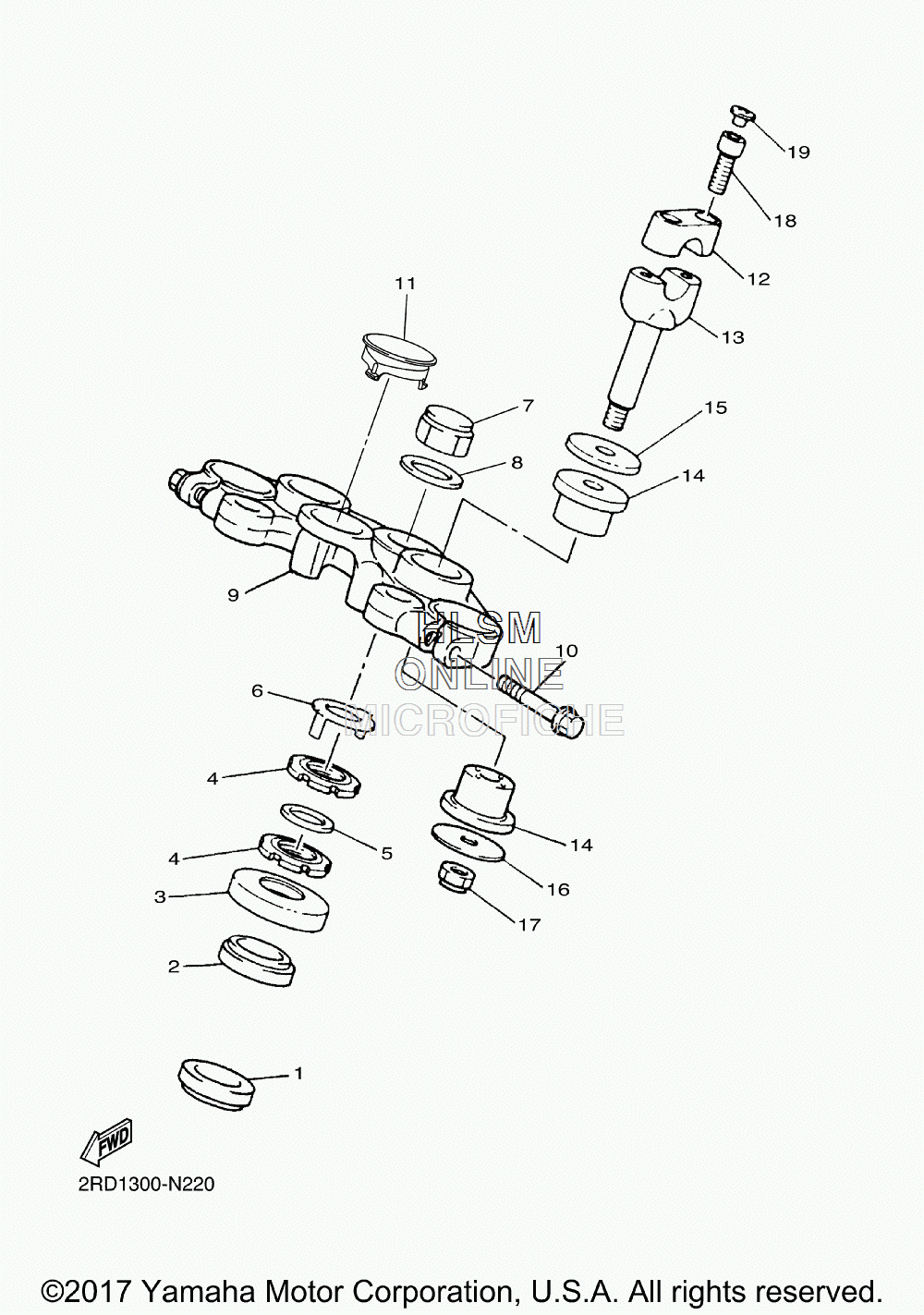

STEERING для Yamaha SR400 - 2017 года выпуска
-
№АртикулНазвание
-
193399-99942-00 BEARINGBEARING
-
293399-99949-00 BEARINGBEARING
-
310V-23416-01-00 COVER, BALL RACE 2COVER, BALL RACE 2
-
490179-25004-00 NUTNUT
-
590202-26142-00 WASHER, PLATEWASHER, PLATE
-
626H-23418-01-00 WASHER, SPECIALWASHER, SPECIAL
-
790176-22081-00 NUT, CROWNNUT, CROWN
-
890201-220T0-00 WASHER, PLATEWASHER, PLATE
-
93HT-23435-10-00 CROWN, HANDLECROWN, HANDLE
-
1095024-08040-00 BOLT, FLANGE (SMALL HEAD)BOLT, FLANGE (SMALL HEAD)
-
1136P-82552-00-00 CAP, SWITCHCAP, SWITCH
-
124H7-23441-01-38 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
134AA-23442-01-38 HOLDER, HANDLE LOWERHOLDER, HANDLE LOWER
-
141T4-23434-00-00 HOLDER, DAMPERHOLDER, DAMPER
-
1590209-12008-00 WASHERWASHER
-
1690201-10026-00 WASHER, PLATEWASHER, PLATE
-
1795607-10100-00 NUT, UNUT, U
-
1891314-08035-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1990338-08163-00 PLUGPLUG
