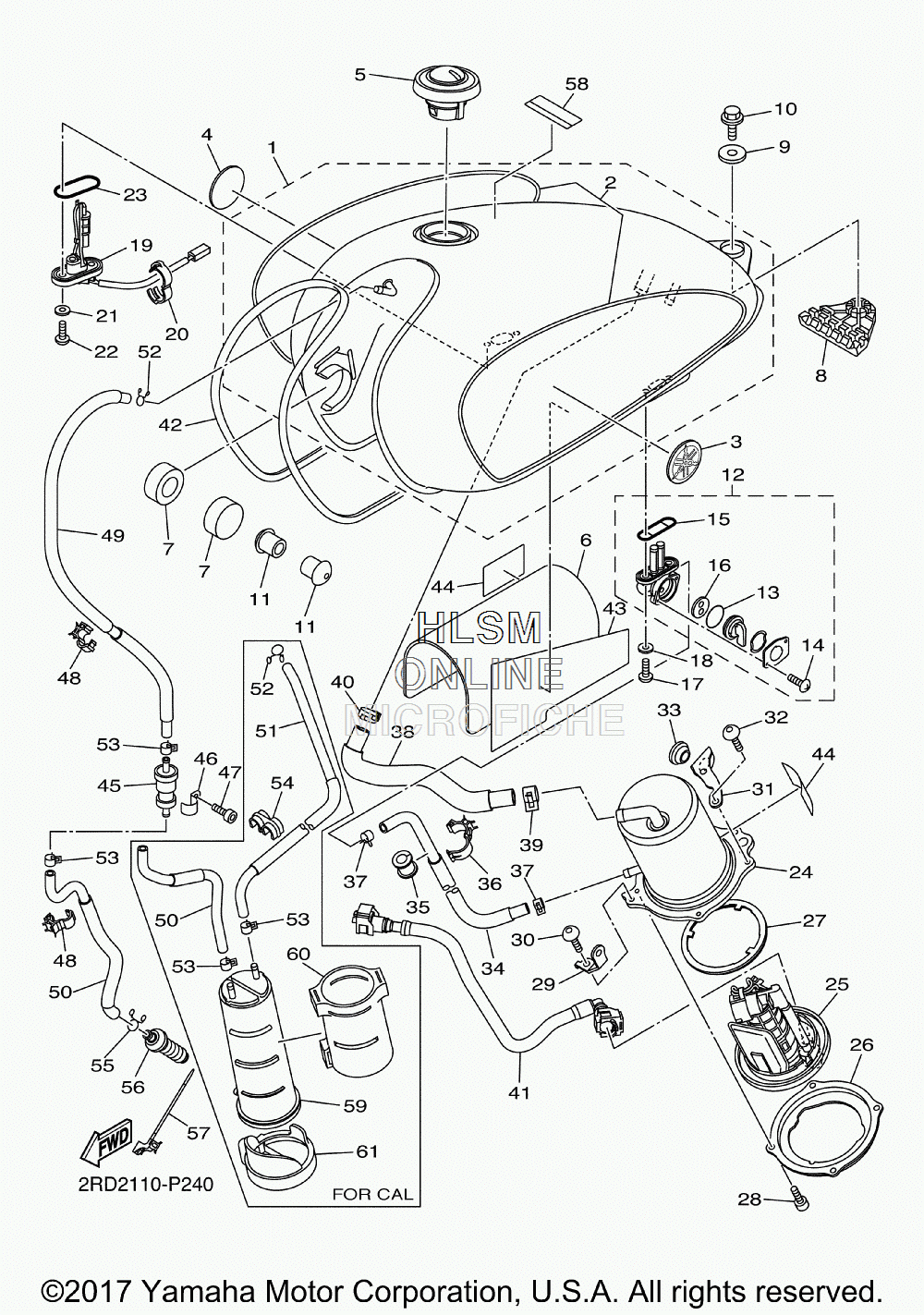

FUEL TANK для Yamaha SR400 - 2017 года выпуска
-
№АртикулНазвание
-
13HT-Y2410-10-08 FUEL TANK COMP. (YB - YAMAHA BLACK)FUEL TANK COMP. (YB - YAMAHA BLACK)
-
22RD-24240-60-00 ...GRAPHIC SET...GRAPHIC SET
-
31JN-24161-10-00 EMBLEMEMBLEM
-
41JN-24162-10-00 EMBLEMEMBLEM
-
55BN-24602-10-00 CAP ASSYCAP ASSY
-
54NK-24602-20-00 CAP ASSY (CALIF ONLY)CAP ASSY (CALIF ONLY)
-
690520-03008-00 DAMPER, PLATEDAMPER, PLATE
-
72J2-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
81J7-24182-01-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
990209-08098-00 WASHERWASHER
-
1095807-08012-00 BOLT, FLANGEBOLT, FLANGE
-
112J2-24183-01-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
124DP-24500-10-00 FUEL COCK ASSY 1FUEL COCK ASSY 1
-
133AJ-24534-10-00 ...SEAL, COCK...SEAL, COCK
-
1498507-03008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
154X8-24512-10-00 ...GASKET...GASKET
-
163AC-24523-00-00 ...VALVE PACKING...VALVE PACKING
-
1790149-06108-00 SCREWSCREW
-
1890202-05193-00 WASHER, PLATEWASHER, PLATE
-
193HT-85752-01-00 SENDER UNIT ASSY, FUEL METERSENDER UNIT ASSY, FUEL METER
-
2090464-16001-00 CLAMPCLAMP
-
2190202-05193-00 WASHER, PLATEWASHER, PLATE
-
2290149-06108-00 SCREWSCREW
-
2342X-85753-00-00 GASKET, SENDER UNITGASKET, SENDER UNIT
-
243HT-244A0-00-00 PUMP CASE COMP.PUMP CASE COMP.
-
253HT-13907-01-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
2635C-24491-00-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
271S4-24486-00-00 O-RINGO-RING
-
2891312-05010-00 BOLTBOLT
-
293HT-24425-00-00 BRACKET, FUEL PUMP 1BRACKET, FUEL PUMP 1
-
3092012-06010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
313HT-24426-00-00 BRACKET, FUEL PUMP 2BRACKET, FUEL PUMP 2
-
3292012-06010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
3390480-15004-00 GROMMETGROMMET
-
342RD-24311-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
3590480-20543-00 GROMMETGROMMET
-
3690464-20191-00 CLAMPCLAMP
-
3790467-10135-00 CLIPCLIP
-
382RD-24312-00-00 PIPE 2PIPE 2
-
3990467-160A2-00 CLIPCLIP
-
405PX-2411M-00-00 CLIPCLIP
-
413HT-13971-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
423EB-24189-10-00 PLATE, MOLDPLATE, MOLD
-
433HT-21735-00-00 SEAL 2SEAL 2
-
441JK-21735-00-00 SEAL 2SEAL 2
-
455PX-24180-00-00 ROLL OVER VALVE ASSYROLL OVER VALVE ASSY
-
465PX-24136-00-00 CLAMP 2CLAMP 2
-
4791317-05010-00 BOLT, HEX. SOCKET HEADBOLT, HEX. SOCKET HEAD
-
4890464-10190-00 CLAMP (CALIF ONLY)CLAMP (CALIF ONLY)
-
4890464-10190-00 CLAMP (EXCEPT CALIF)CLAMP (EXCEPT CALIF)
-
493HT-24313-00-00 PIPE 3PIPE 3
-
502RD-24314-00-00 PIPE 4 (CALIF ONLY)PIPE 4 (CALIF ONLY)
-
503HT-24314-00-00 PIPE 4 (EXCEPT CALIF)PIPE 4 (EXCEPT CALIF)
-
512RD-24315-00-00 PIPE 5 (CALIF ONLY)PIPE 5 (CALIF ONLY)
-
5290467-09006-00 CLIP (EXCEPT CALIF)CLIP (EXCEPT CALIF)
-
5290467-09006-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
5390467-090A1-00 CLIP (EXCEPT CALIF)CLIP (EXCEPT CALIF)
-
5390467-090A1-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
5490464-12224-00 CLAMP (CALIF ONLY)CLAMP (CALIF ONLY)
-
5590467-11106-00 CLIPCLIP
-
565UX-24481-00-00 PLUGPLUG
-
5790464-15200-00 CLAMPCLAMP
-
581TP-2118K-A1-00 LABEL, CAUTIONLABEL, CAUTION
-
592RC-24170-00-00 CANISTER ASSY (CALIF ONLY)CANISTER ASSY (CALIF ONLY)
-
602RD-24181-00-00 DAMPER, LOCATING 1 (CALIF ONLY)DAMPER, LOCATING 1 (CALIF ONLY)
-
612RD-2419E-00-00 COVER, CANISTER (CALIF ONLY)COVER, CANISTER (CALIF ONLY)
