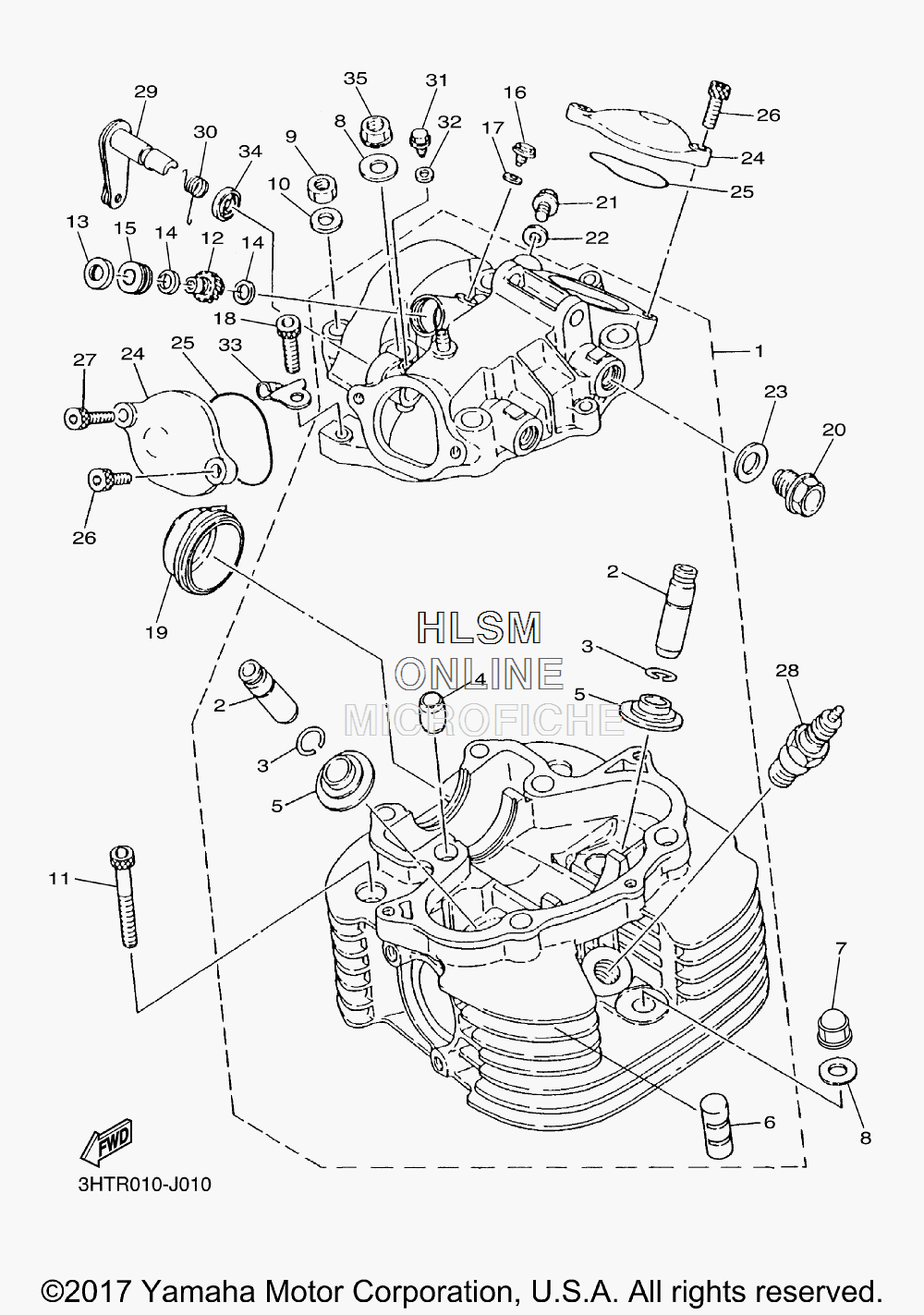

CYLINDER HEAD для Yamaha SR400 - 2017 года выпуска
-
№АртикулНазвание
-
13HT-11101-R9-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
24X7-11133-10-00 ...GUIDE, IN./EX. VALVE...GUIDE, IN./EX. VALVE
-
393440-14086-00 ...CIRCLIP...CIRCLIP
-
499530-14016-00 ...PIN, DOWEL...PIN, DOWEL
-
54X7-12116-00-00 ...SEAT, VALVE SPRING...SEAT, VALVE SPRING
-
61JK-11127-00-00 ...ABSORBER 3...ABSORBER 3
-
790176-10005-00 NUT, CROWNNUT, CROWN
-
890201-10124-00 WASHER, PLATEWASHER, PLATE
-
995302-08600-00 NUT, HEXAGONNUT, HEXAGON
-
1090201-08081-00 WASHER, PLATEWASHER, PLATE
-
1191312-06055-00 BOLTBOLT
-
121E6-17841-00-00 GEAR, DRIVEN (15T)GEAR, DRIVEN (15T)
-
1393101-08132-00 OIL SEALOIL SEAL
-
1490201-08587-00 WASHER, PLATEWASHER, PLATE
-
151E6-17843-00-00 BUSH, DRIVEN GEAR OUTERBUSH, DRIVEN GEAR OUTER
-
1690109-06276-00 BOLTBOLT
-
1790430-06014-00 GASKETGASKET
-
1891314-06025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
192J2-11197-00-00 PLUG, VIEWERPLUG, VIEWER
-
2090340-14038-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
2195804-08012-00 BOLT, FLANGEBOLT, FLANGE
-
2290430-08119-00 GASKETGASKET
-
2390430-14043-00 GASKETGASKET
-
242J2-11186-00-00 COVER, CYLINDER HEAD SIDE 2COVER, CYLINDER HEAD SIDE 2
-
2593210-49296-00 O-RINGO-RING
-
2691314-06018-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2790110-06247-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2894701-00234-00 PLUG, SPARK (NGK BPR6ES)PLUG, SPARK (NGK BPR6ES)
-
29583-12288-01-00 CAM, DECOMPRESSIONCAM, DECOMPRESSION
-
3090508-16303-00 SPRING, TORSIONSPRING, TORSION
-
3190109-06276-00 BOLTBOLT
-
3290430-06014-00 GASKETGASKET
-
33583-12283-00-00 BRACKET, DECOMPRESSIONBRACKET, DECOMPRESSION
-
3493104-12054-00 OIL SEALOIL SEAL
-
3590179-10279-00 NUTNUT
