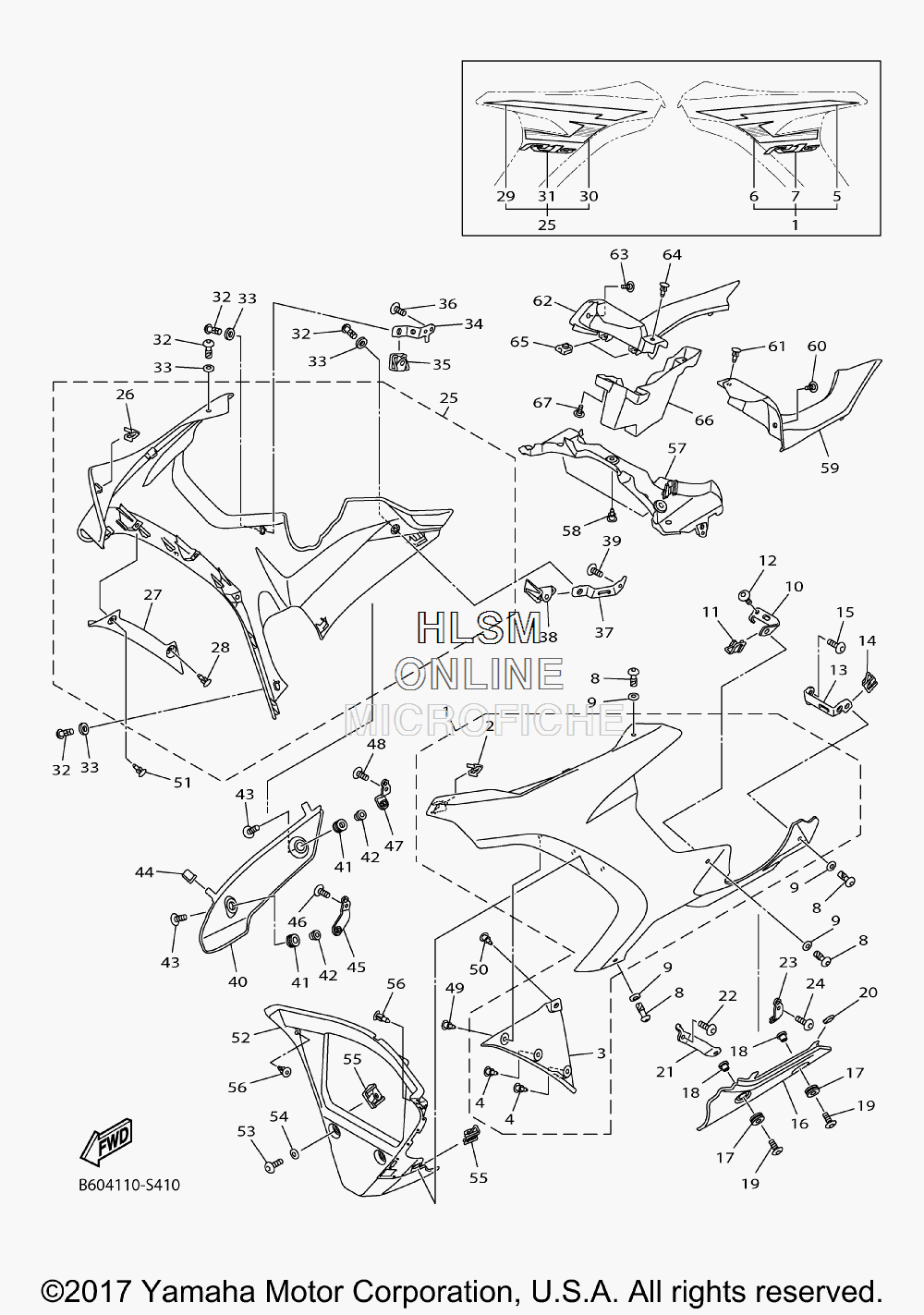

COWLING 2 для Yamaha YZFR1S - 2017 года выпуска
-
№АртикулНазвание
-
12CR-Y283U-C0-P2 PANEL ASSEMBLY 1 (SMX - BLACK METALLIC)PANEL ASSEMBLY 1 (SMX - BLACK METALLIC)
-
290468-040A0-00 ...CLIP...CLIP
-
32CR-2836K-00-00 ...PANEL, INNER 1...PANEL, INNER 1
-
490269-06008-00 ...RIVET...RIVET
-
5B60-28391-30-00 ...GRAPHIC 1...GRAPHIC 1
-
6B60-28398-10-00 ...GRAPHIC 5...GRAPHIC 5
-
7B60-28328-10-00 ...EMBLEM...EMBLEM
-
82CR-28386-00-00 HEADHEAD
-
98HG-21757-00-00 WASHER, SPECIAL 1WASHER, SPECIAL 1
-
102CR-2833K-00-00 BRACKET 13BRACKET 13
-
112CR-2177L-00-00 PLATE, SPRINGPLATE, SPRING
-
1290111-06127-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
132CR-2833L-00-00 BRACKET 14BRACKET 14
-
142CR-2177L-00-00 PLATE, SPRINGPLATE, SPRING
-
1590111-06127-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
162CR-2834V-00-00 PROTECTOR 1PROTECTOR 1
-
1790480-14477-00 GROMMETGROMMET
-
1890387-06307-00 COLLARCOLLAR
-
1990111-06071-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
205PW-2411J-01-00 DAMPER, SIDE COVERDAMPER, SIDE COVER
-
212CR-2833R-00-00 BRACKET, 17BRACKET, 17
-
2290111-06127-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
232CR-2833T-00-00 BRACKET,18BRACKET,18
-
2490111-06127-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
252CR-Y283V-C0-P2 PANEL ASSEMBLY 2 (SMX - BLACK METALLIC)PANEL ASSEMBLY 2 (SMX - BLACK METALLIC)
-
2690468-040A0-00 ...CLIP...CLIP
-
272CR-2836L-00-00 ...PANEL, INNER 2...PANEL, INNER 2
-
2890269-06008-00 ...RIVET...RIVET
-
29B60-28392-30-00 ...GRAPHIC 2...GRAPHIC 2
-
30B60-28399-10-00 ...GRAPHIC 6...GRAPHIC 6
-
31B60-28328-10-00 ...EMBLEM...EMBLEM
-
322CR-28386-00-00 HEADHEAD
-
338HG-21757-00-00 WASHER, SPECIAL 1WASHER, SPECIAL 1
-
342CR-2833M-00-00 BRACKET 15BRACKET 15
-
352CR-2177L-00-00 PLATE, SPRINGPLATE, SPRING
-
3690111-06127-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
372CR-2833N-00-00 BRACKET 16BRACKET 16
-
382CR-2177L-00-00 PLATE, SPRINGPLATE, SPRING
-
3990111-06127-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
402CR-2834W-00-00 PROTECTOR 2PROTECTOR 2
-
4190480-14477-00 GROMMETGROMMET
-
4290387-06307-00 COLLARCOLLAR
-
4390111-06071-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
445PW-2411J-01-00 DAMPER, SIDE COVERDAMPER, SIDE COVER
-
452CR-2833U-00-00 BRACKET, 19BRACKET, 19
-
4690111-06127-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
472CR-2833V-00-00 BRACKET, 20BRACKET, 20
-
4890111-06127-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
4990269-06001-00 RIVETRIVET
-
5090269-06008-00 RIVETRIVET
-
5190269-06001-00 RIVETRIVET
-
522CR-2836M-00-P2 PANEL, INNER 3 (SMX - BLACK METALLIC)PANEL, INNER 3 (SMX - BLACK METALLIC)
-
5390149-06302-00 SCREWSCREW
-
5490387-06309-00 COLLARCOLLAR
-
552CR-2177L-00-00 PLATE, SPRINGPLATE, SPRING
-
5690269-06008-00 RIVETRIVET
-
572CR-23174-00-00 STAY, HEADLIGHTSTAY, HEADLIGHT
-
5890269-06008-00 RIVETRIVET
-
592CR-2837L-00-00 PANEL, CONSOLE 1PANEL, CONSOLE 1
-
6090111-05011-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
6190269-06008-00 RIVETRIVET
-
622CR-2837M-00-00 PANEL, CONSOLE 2PANEL, CONSOLE 2
-
6390111-05011-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
6490269-06008-00 RIVETRIVET
-
6590183-05076-00 NUT, SPRINGNUT, SPRING
-
662CR-2838K-00-00 BOX 1BOX 1
-
6790111-05011-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
