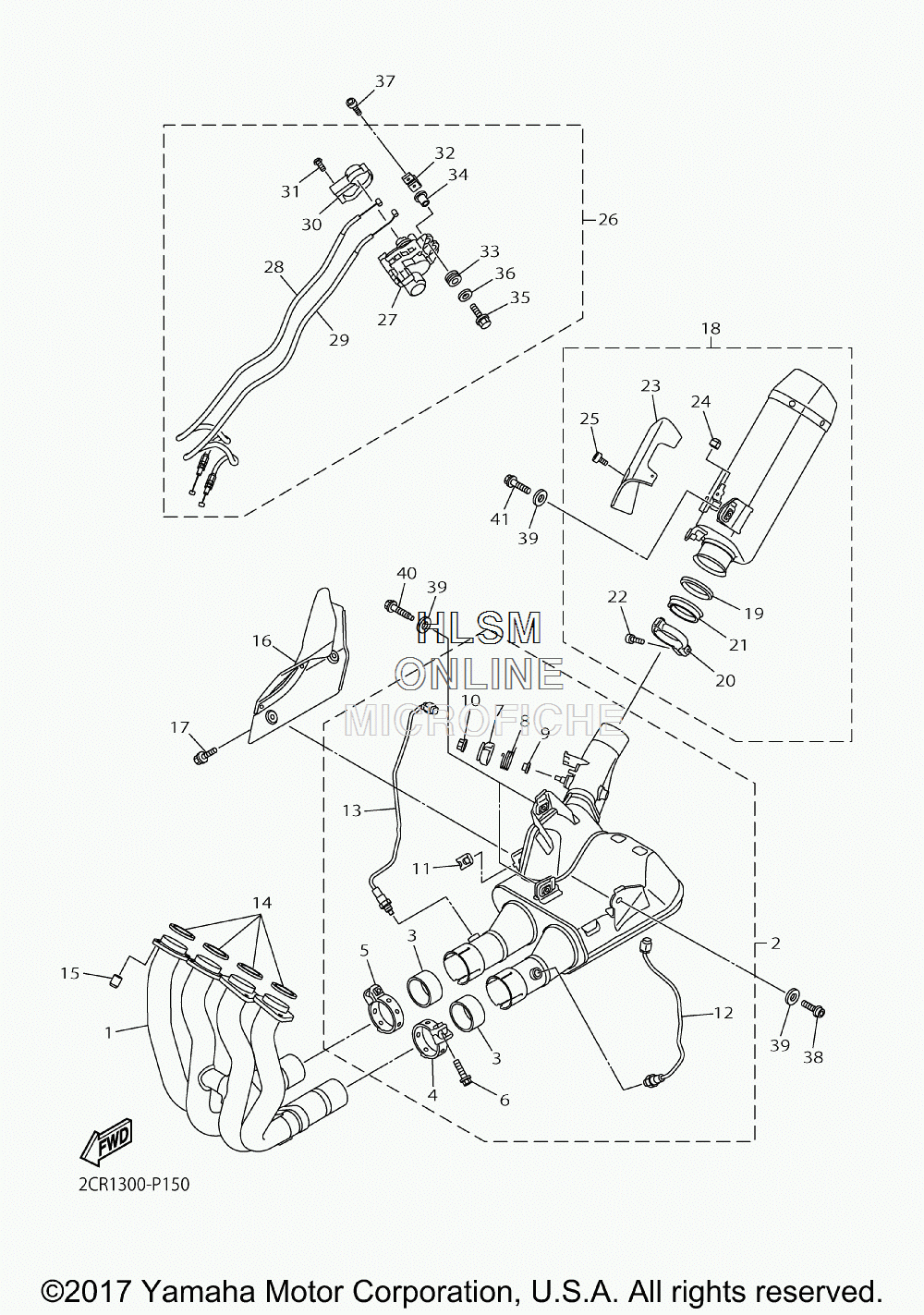

EXHAUST для Yamaha YZFR1S - 2017 года выпуска
-
№АртикулНазвание
-
1B60-14602-00-00 EXHAUST PIPE COMP.EXHAUST PIPE COMP.
-
22CR-14730-00-00 CHAMBER ASSYCHAMBER ASSY
-
35YU-14714-10-00 ...GASKET, MUFFLER...GASKET, MUFFLER
-
439P-14715-00-00 ...BAND, MUFFLER...BAND, MUFFLER
-
52CR-14715-00-00 ...BAND, MUFFLER...BAND, MUFFLER
-
695024-08035-00 ...BOLT, FLANGE (SMALL HEAD)...BOLT, FLANGE (SMALL HEAD)
-
72C0-14865-00-00 ...PULLEY...PULLEY
-
82C0-14856-00-00 ...SPRING...SPRING
-
92D1-14843-00-00 ...SEAT, SPRING...SEAT, SPRING
-
1090179-06063-00 ...NUT...NUT
-
1190183-060A2-00 ...NUT, SPRING...NUT, SPRING
-
121WS-8592A-00-00 ...SENSOR, OXYGEN...SENSOR, OXYGEN
-
132CR-8592A-10-00 ...SENSOR, OXYGEN...SENSOR, OXYGEN
-
142CR-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
1590179-08673-00 NUTNUT
-
162CR-14708-00-00 PROTECTOR ASSYPROTECTOR ASSY
-
1790111-06153-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
182CR-14750-00-00 SILENCER ASSYSILENCER ASSY
-
192CR-14623-00-00 ...GASKET, EXHAUST PIPE...GASKET, EXHAUST PIPE
-
202CR-14725-00-00 ...BAND, MUFFLER...BAND, MUFFLER
-
212CR-14618-00-00 ...RING, STOPPER...RING, STOPPER
-
2290110-06343-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
232CR-14718-00-00 ...PROTECTOR, MUFFLER 1...PROTECTOR, MUFFLER 1
-
245S7-14737-00-00 ...DAMPER, MUFFLER...DAMPER, MUFFLER
-
2590111-06153-00 ...BOLT, HEX. SOCKET BUTTON...BOLT, HEX. SOCKET BUTTON
-
262CR-4616A-00-00 SERVO MOTOR COMPSERVO MOTOR COMP
-
272CR-85820-00-00 ...SERVO MOTOR ASSY...SERVO MOTOR ASSY
-
282CR-1133E-00-00 ...CABLE, PULLEY 1...CABLE, PULLEY 1
-
292CR-1133F-00-00 ...CABLE, PULLEY 2...CABLE, PULLEY 2
-
305VY-85829-01-00 ...COVER, SERVO MOTOR...COVER, SERVO MOTOR
-
3197702-50514-00 ...SCREW, TAPPING...SCREW, TAPPING
-
322CR-2116J-00-00 ...BRACKET 7...BRACKET 7
-
3390480-14005-00 ...GROMMET...GROMMET
-
3490387-063E6-00 ...COLLAR...COLLAR
-
3595022-06020-00 ...BOLT, FLANGE...BOLT, FLANGE
-
3690201-06M31-00 ...WASHER, PLATE...WASHER, PLATE
-
3790110-06106-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3890110-08099-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3990201-087G2-00 WASHER, PLATEWASHER, PLATE
-
4090109-08238-00 BOLTBOLT
-
4190110-08071-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
