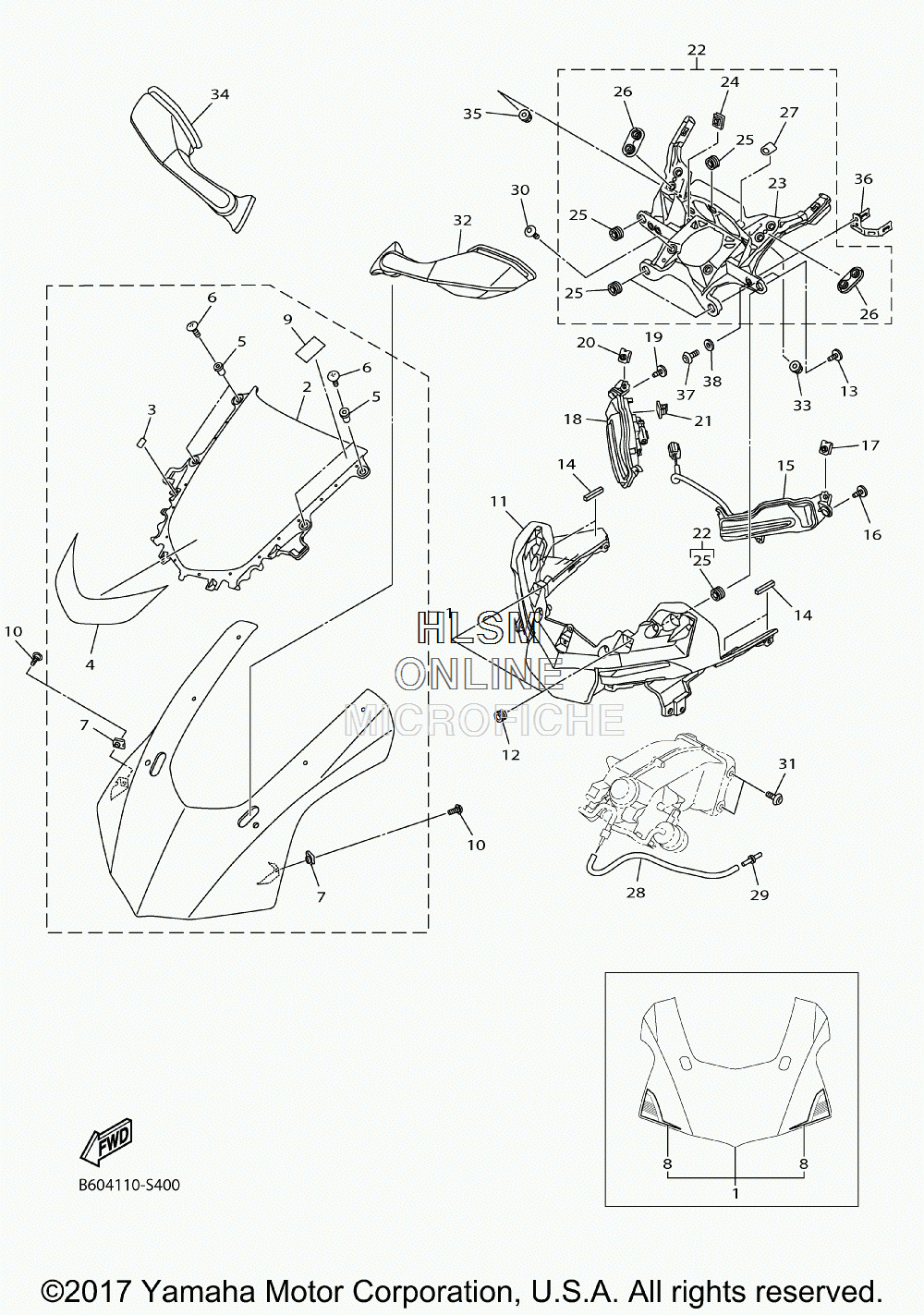

COWLING для Yamaha YZFR1S - 2017 года выпуска
-
№АртикулНазвание
-
12CR-Y283G-Y0-P8 BODY, FRONT UPPER 1 (BS4 - BLUISH SILVER)BODY, FRONT UPPER 1 (BS4 - BLUISH SILVER)
-
22CR-28381-10-00 ...WINDSHIELD...WINDSHIELD
-
31S4-2476U-00-00 ...PROTECTOR 1...PROTECTOR 1
-
42CR-2832P-00-00 ...GRAPHIC, 18...GRAPHIC, 18
-
590179-05523-00 ...NUT...NUT
-
690150-05023-00 ...SCREW, ROUND HEAD...SCREW, ROUND HEAD
-
790183-05076-00 ...NUT, SPRING...NUT, SPRING
-
8B60-2834X-10-00 ...GRAPHIC SET 1, COWLING...GRAPHIC SET 1, COWLING
-
94B5-2815K-00-00 ...LABEL, NOTICE WINDSHIELD 1...LABEL, NOTICE WINDSHIELD 1
-
1090111-05045-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
112CR-2835H-00-00 BODY, FRONT UPPER 2BODY, FRONT UPPER 2
-
1290480-10003-00 GROMMETGROMMET
-
1390164-05001-00 SCREW, TAPPINGSCREW, TAPPING
-
142C0-28247-00-00 DAMPER 4DAMPER 4
-
152CR-84301-00-00 PILOT LIGHT ASSY 1PILOT LIGHT ASSY 1
-
1697702-50014-00 SCREW, TAPPINGSCREW, TAPPING
-
1790183-05076-00 NUT, SPRINGNUT, SPRING
-
182CR-84302-00-00 PILOT LIGHT ASSY 2PILOT LIGHT ASSY 2
-
1997702-50014-00 SCREW, TAPPINGSCREW, TAPPING
-
2090183-05076-00 NUT, SPRINGNUT, SPRING
-
2190464-25160-00 CLAMPCLAMP
-
222CR-28320-00-00 LEG SHIELD STAY SETLEG SHIELD STAY SET
-
232CR-28356-00-00 ...STAY 1...STAY 1
-
2490183-060A1-00 ...NUT, SPRING...NUT, SPRING
-
254XV-83513-00-00 ...DAMPER...DAMPER
-
264C8-26298-00-00 ...PLATE, MIRROR FITTING 1...PLATE, MIRROR FITTING 1
-
272CR-22873-00-00 ...SEAL 1...SEAL 1
-
2890445-086J3-00 HOSE (L320)HOSE (L320)
-
295PS-14568-00-00 JOINTJOINT
-
3090111-06038-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
3190111-06071-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
322CR-26280-10-00 REAR VIEW MIRROR ASSY (LEFT)REAR VIEW MIRROR ASSY (LEFT)
-
3390176-06055-00 NUT, CROWNNUT, CROWN
-
342CR-26290-10-00 REAR VIEW MIRROR ASSY (RIGHT)REAR VIEW MIRROR ASSY (RIGHT)
-
3590176-06055-00 NUT, CROWNNUT, CROWN
-
362CR-2836J-00-00 BRACKET 6BRACKET 6
-
3792012-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
3890387-06184-00 COLLARCOLLAR
