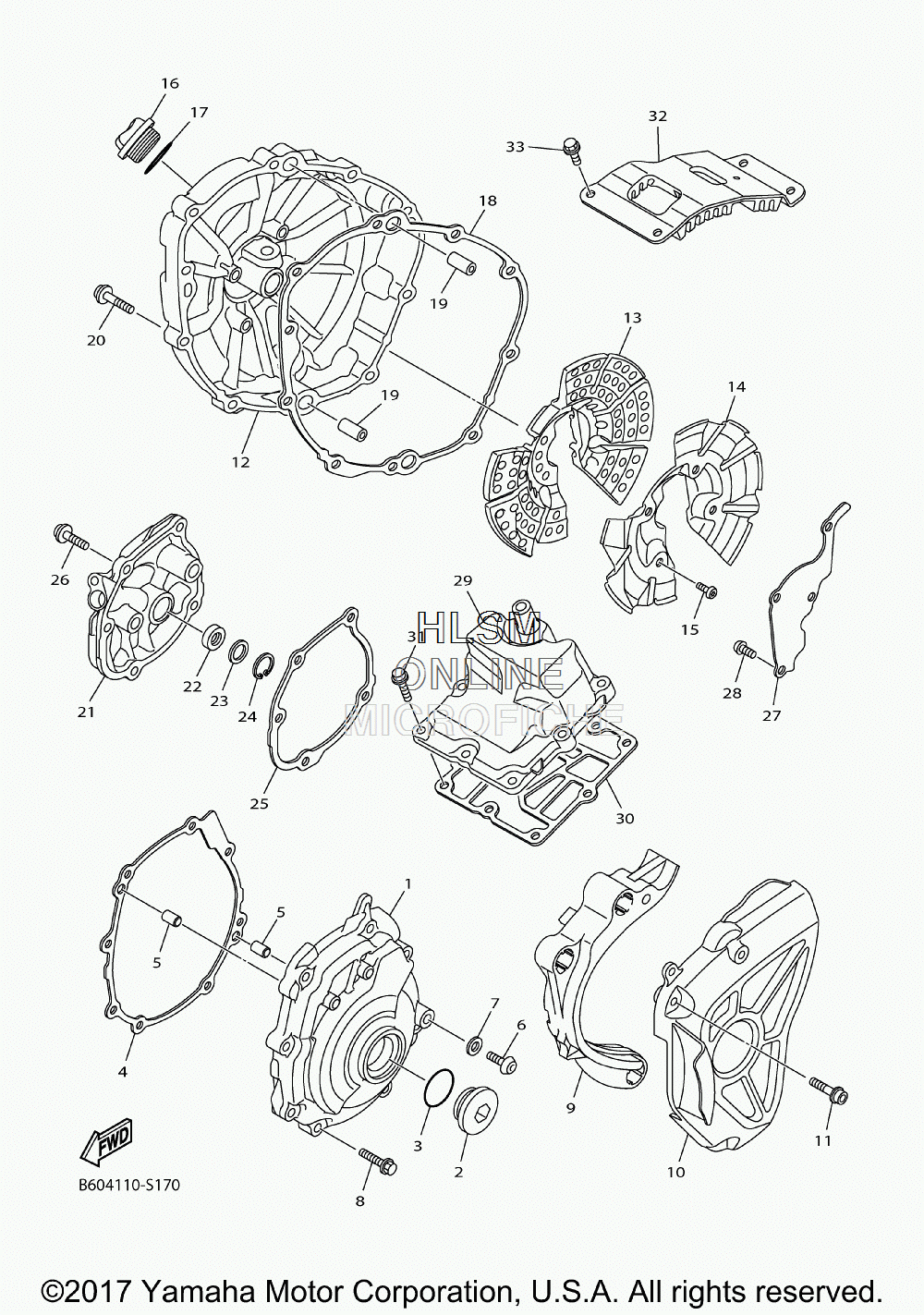

CRANKCASE COVER для Yamaha YZFR1S - 2017 года выпуска
-
№АртикулНазвание
-
1BX4-15411-00-00 COVER, CRANKCASE 1COVER, CRANKCASE 1
-
290340-27003-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
393210-27370-00 O-RINGO-RING
-
42CR-15451-00-00 GASKET, CRANKCASE COVER 1GASKET, CRANKCASE COVER 1
-
599530-08012-00 PIN, DOWELPIN, DOWEL
-
692014-08016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
790430-08143-00 GASKETGASKET
-
890110-06387-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
92CR-15377-10-00 GUIDE, INLETGUIDE, INLET
-
102CR-15418-00-00 COVER, CHAIN CASECOVER, CHAIN CASE
-
1190110-06387-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
12B60-15421-10-00 COVER, CRANKCASE 2COVER, CRANKCASE 2
-
132CR-15316-00-00 DAMPER 1DAMPER 1
-
142CR-15492-00-00 COVERCOVER
-
1590149-06158-00 SCREWSCREW
-
162CR-15363-01-00 PLUG, OILPLUG, OIL
-
1793210-29574-00 O-RINGO-RING
-
182CR-15461-00-00 GASKET, CRANKCASE COVER 2GASKET, CRANKCASE COVER 2
-
1993610-20189-00 PIN, DOWELPIN, DOWEL
-
2090110-06388-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
21B60-15416-10-00 COVER, OIL PUMPCOVER, OIL PUMP
-
2293101-10004-00 OIL SEALOIL SEAL
-
2390201-12166-00 WASHER, PLATEWASHER, PLATE
-
2499009-19500-00 CIRCLIPCIRCLIP
-
252CR-15456-00-00 GASKET, OIL PUMP COVER 1GASKET, OIL PUMP COVER 1
-
2690110-06396-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
272CR-11165-00-00 PLATE, BREATHERPLATE, BREATHER
-
2890149-06158-00 SCREWSCREW
-
292CR-15413-00-00 COVERCOVER
-
302CR-15462-00-00 GASKET, CRANKCASE COVER 3GASKET, CRANKCASE COVER 3
-
3190110-06387-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
322CR-15113-00-00 PLATEPLATE
-
3390110-06108-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
