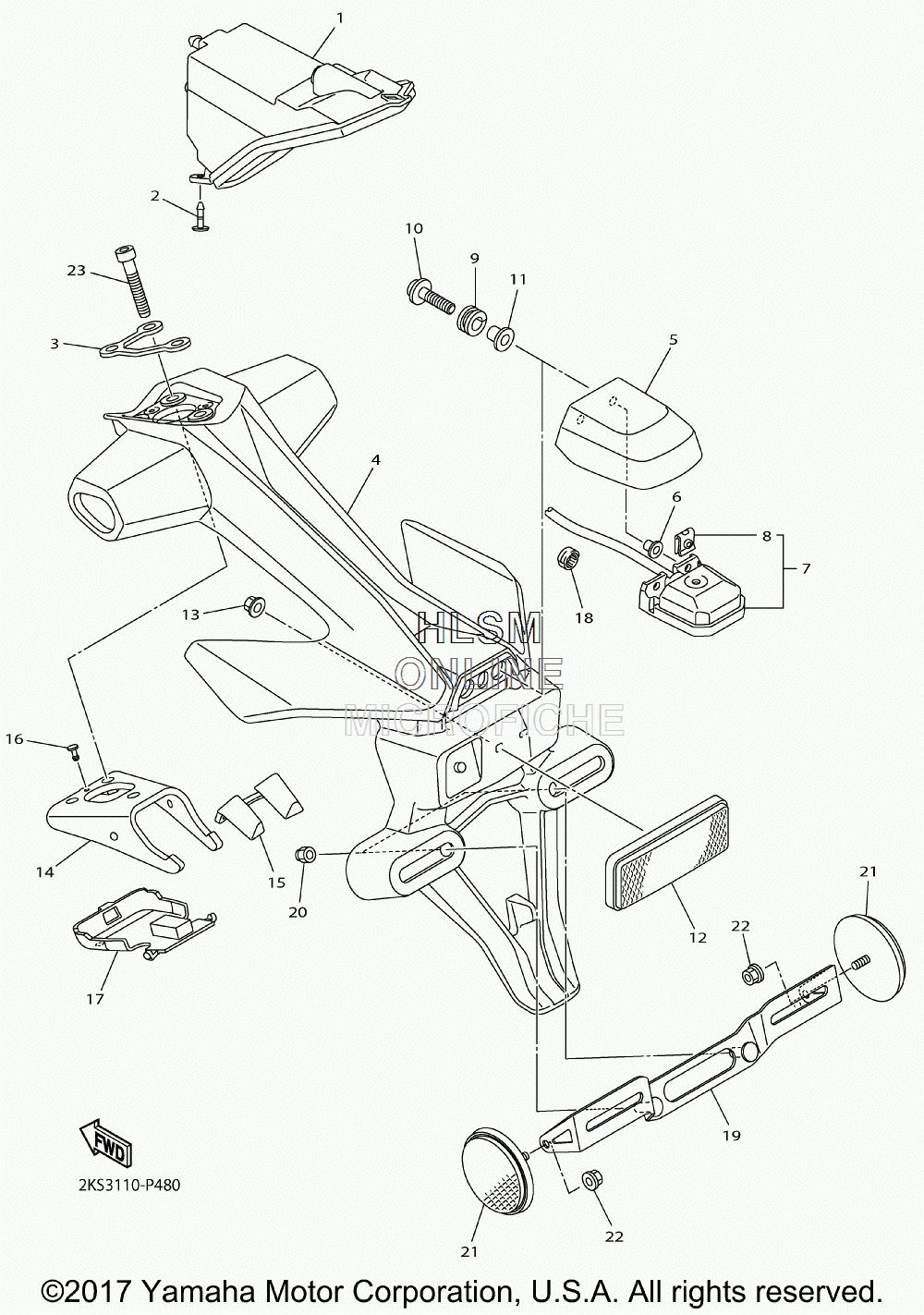

TAILLIGHT для Yamaha YZFR1S - 2017 года выпуска
-
№АртикулНазвание
-
12CR-84710-00-00 TAILLIGHT UNIT ASSYTAILLIGHT UNIT ASSY
-
290269-06008-00 RIVETRIVET
-
32CR-21615-00-00 WASHER, SPECIAL 1WASHER, SPECIAL 1
-
42CR-21629-00-00 GUARD, MUDGUARD, MUD
-
52CR-2163F-00-00 COVER, REAR FENDER 3COVER, REAR FENDER 3
-
690387-05035-00 COLLARCOLLAR
-
72CR-84745-00-00 LICENSE LIGHT UNIT ASSYLICENSE LIGHT UNIT ASSY
-
890183-05061-00 ...NUT, SPRING...NUT, SPRING
-
990480-11009-00 GROMMETGROMMET
-
1090159-05035-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
1190387-05003-00 COLLARCOLLAR
-
123Y6-85130-02-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
1395607-05200-00 NUT, S/L FLANGENUT, S/L FLANGE
-
142CR-2161G-00-00 BRACKET 6BRACKET 6
-
152CR-21639-00-00 DAMPER 2DAMPER 2
-
1690267-32146-00 RIVET, BLINDRIVET, BLIND
-
172CR-2163A-00-00 COVER, REAR FENDER 1COVER, REAR FENDER 1
-
1890464-13227-00 CLAMPCLAMP
-
191RC-84751-00-00 BRACKET, LICENSEBRACKET, LICENSE
-
2095607-06200-00 NUT, SELF U-FLANGENUT, SELF U-FLANGE
-
21449-85131-02-00 REFLECTOR, REAR 1REFLECTOR, REAR 1
-
2295707-05500-00 NUT, FLANGENUT, FLANGE
-
2390110-06140-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
