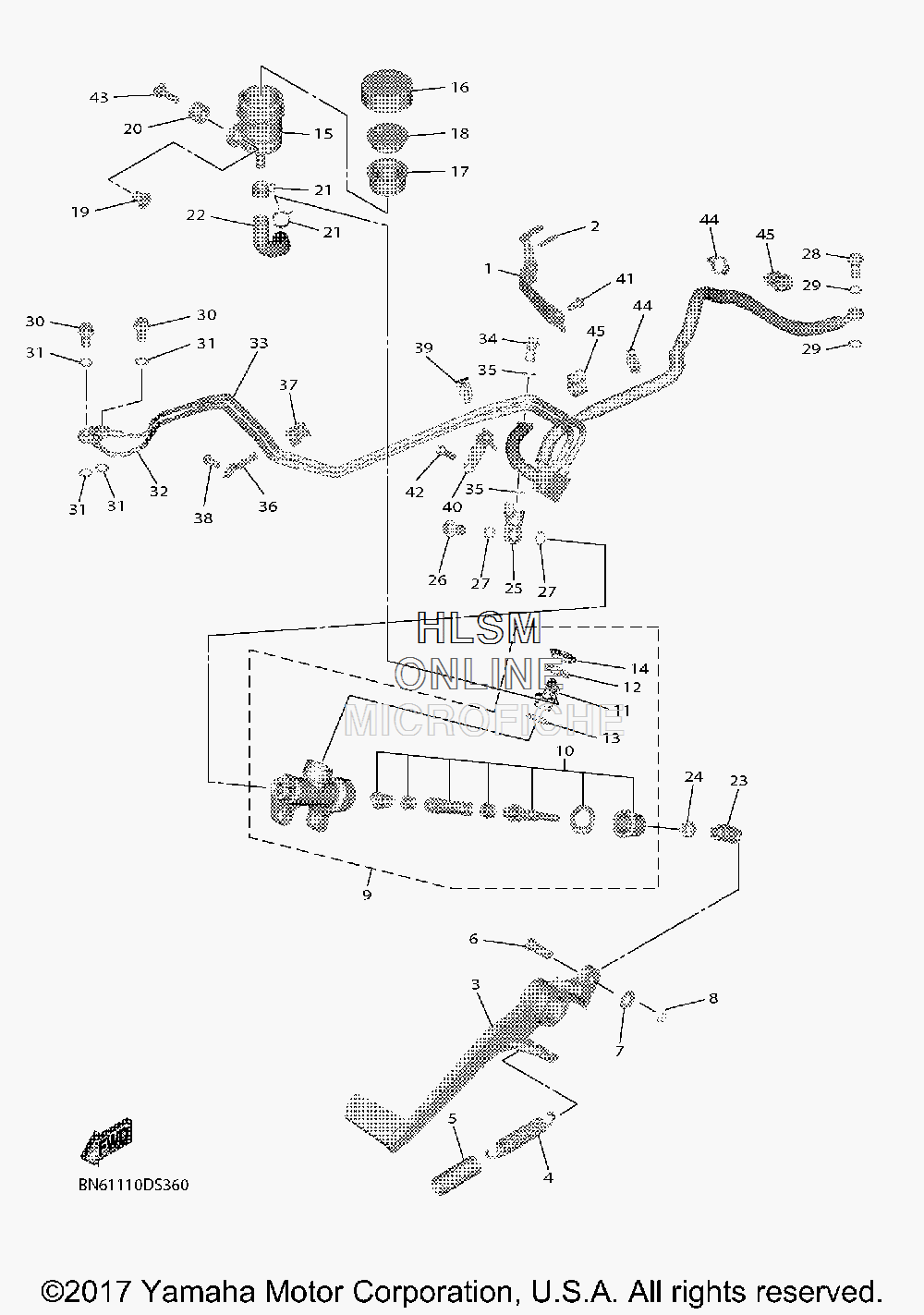

BRAKE - REAR MASTER CYLINDER для Yamaha YZFR6 - 2017 года выпуска
-
№АртикулНазвание
-
1BN6-21228-00-00 BRACKET, RESERVE TANKBRACKET, RESERVE TANK
-
23C3-2837J-00-00 DAMPER 5DAMPER 5
-
32C0-27211-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
490506-20193-00 SPRING, TENSIONSPRING, TENSION
-
590446-15386-00 HOSEHOSE
-
691702-06018-00 PIN, CLEVISPIN, CLEVIS
-
792907-06200-00 WASHERWASHER
-
891402-16012-00 PIN, COTTERPIN, COTTER
-
9BN6-2583V-00-00 REAR MASTER CYLINDER ASSY.REAR MASTER CYLINDER ASSY.
-
10BN6-25808-00-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
114ML-2582A-50-00 ...JOINT...JOINT
-
122VN-25866-00-00 ...CIRCLIP...CIRCLIP
-
1393210-15620-00 ...O-RING...O-RING
-
143FV-2589A-00-00 ...COVER, DUST...COVER, DUST
-
152C0-25894-00-00 TANK, RESERVOIRTANK, RESERVOIR
-
162C0-25852-00-00 CAP, RESERVOIRCAP, RESERVOIR
-
172VN-25854-00-00 DIAPHRAGM, RESERVOIRDIAPHRAGM, RESERVOIR
-
182VN-25855-00-00 BUSH,DIAPHRAGMBUSH,DIAPHRAGM
-
1990387-05028-00 COLLARCOLLAR
-
202C0-26326-00-00 GROMMETGROMMET
-
2190467-12085-00 CLIPCLIP
-
22BN6-25895-50-00 HOSE, RESERVOIRHOSE, RESERVOIR
-
234XV-27222-01-00 JOINTJOINT
-
2495307-08700-00 NUTNUT
-
25BN6-25885-00-00 JOINTJOINT
-
2690401-10172-00 BOLT, UNIONBOLT, UNION
-
2790430-10005-00 GASKETGASKET
-
2890401-10172-00 BOLT, UNIONBOLT, UNION
-
2990430-10005-00 GASKETGASKET
-
3090401-10052-00 BOLT, UNIONBOLT, UNION
-
3190430-10005-00 GASKETGASKET
-
32BN6-2584C-01-00 HOSE, BRAKEHOSE, BRAKE
-
33BN6-2584D-01-00 HOSE, BRAKEHOSE, BRAKE
-
3490401-10049-00 BOLT, UNIONBOLT, UNION
-
3590430-10005-00 GASKETGASKET
-
36BN6-2787A-00-00 BRACKET 1BRACKET 1
-
3790464-07014-00 CLAMPCLAMP
-
3892017-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
3990464-07014-00 CLAMPCLAMP
-
40BN6-2787F-00-00 BRACKET 3BRACKET 3
-
4192012-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
4292012-06025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
4390111-05026-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
4490464-14003-00 CLAMPCLAMP
-
4590464-10233-00 CLAMPCLAMP
