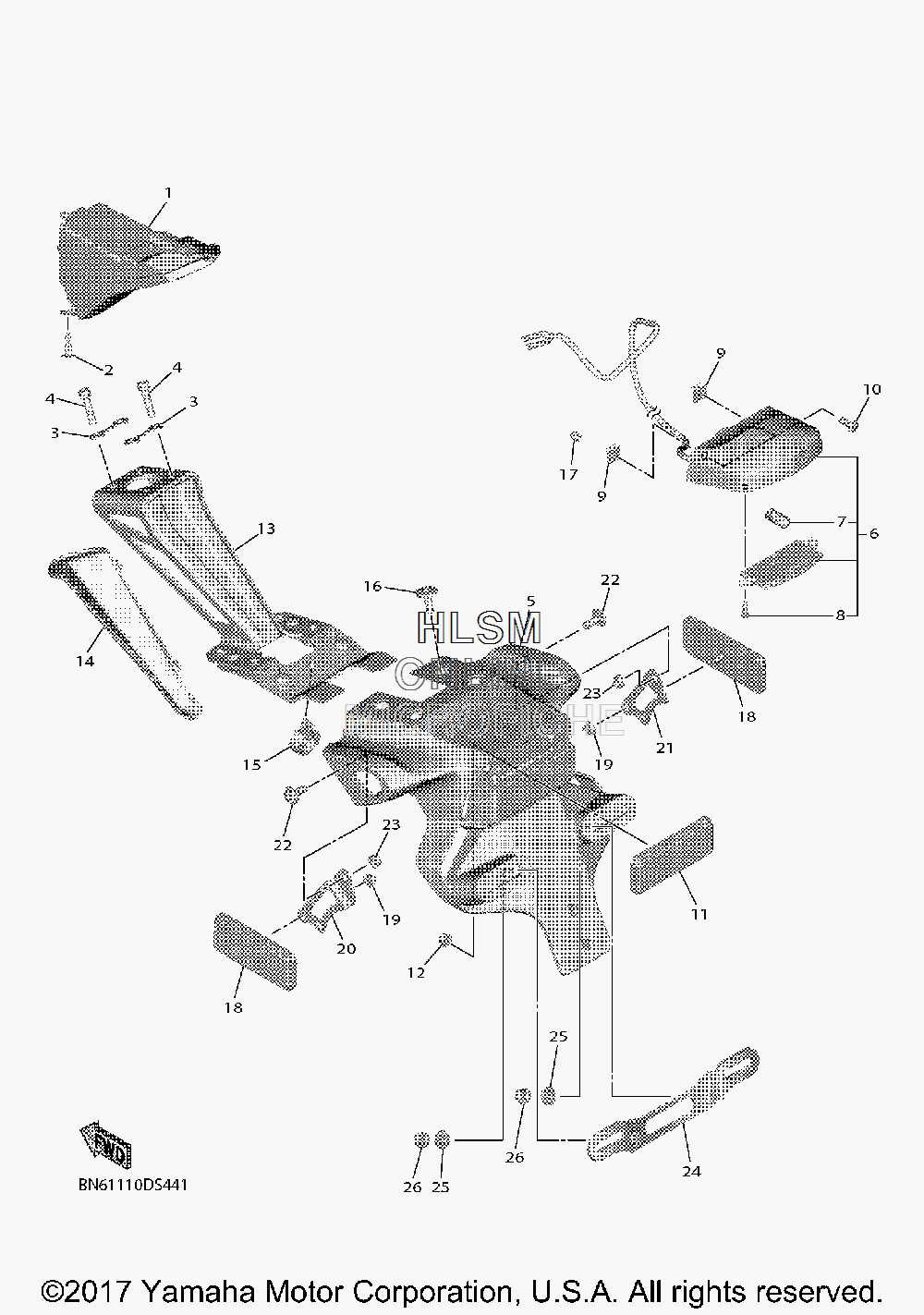

TAILLIGHT для Yamaha YZFR6 - 2017 года выпуска
-
№АртикулНазвание
-
12CR-84710-00-00 TAILLIGHT UNIT ASSYTAILLIGHT UNIT ASSY
-
290269-06008-00 RIVETRIVET
-
3BN6-21615-00-00 WASHER, SPECIAL 1WASHER, SPECIAL 1
-
490110-06295-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
52C0-21629-11-00 GUARD, MUDGUARD, MUD
-
65VX-84745-01-00 LICENSE LIGHT UNIT ASSYLICENSE LIGHT UNIT ASSY
-
74HC-84744-00-00 ...BULB (12V-5W)...BULB (12V-5W)
-
897706-04012-00 ...SCREW, TAPPING...SCREW, TAPPING
-
990183-05061-00 NUT, SPRINGNUT, SPRING
-
1098902-05014-00 SCREW, BINDSCREW, BIND
-
113Y6-85130-02-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
1295602-05200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
13BN6-21640-00-00 REAR STAY COMP.REAR STAY COMP.
-
14BN6-2163E-00-00 COVER, REAR FENDER 2COVER, REAR FENDER 2
-
1590464-14228-00 CLAMPCLAMP
-
1690109-06182-00 BOLTBOLT
-
175VX-13569-01-00 PLUG, BLINDPLUG, BLIND
-
183Y6-85130-02-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
1995702-05500-00 NUT, FLANGENUT, FLANGE
-
202C0-21688-00-00 BRACKET, REAR STAYBRACKET, REAR STAY
-
212C0-21689-00-00 BRACKET, REAR STAY 2BRACKET, REAR STAY 2
-
2290159-06011-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
2395602-06100-00 NUT, UNUT, U
-
245MT-84751-00-00 BRACKET, LICENSEBRACKET, LICENSE
-
2590201-06057-00 WASHER, PLATEWASHER, PLATE
-
2695602-06100-00 NUT, UNUT, U
