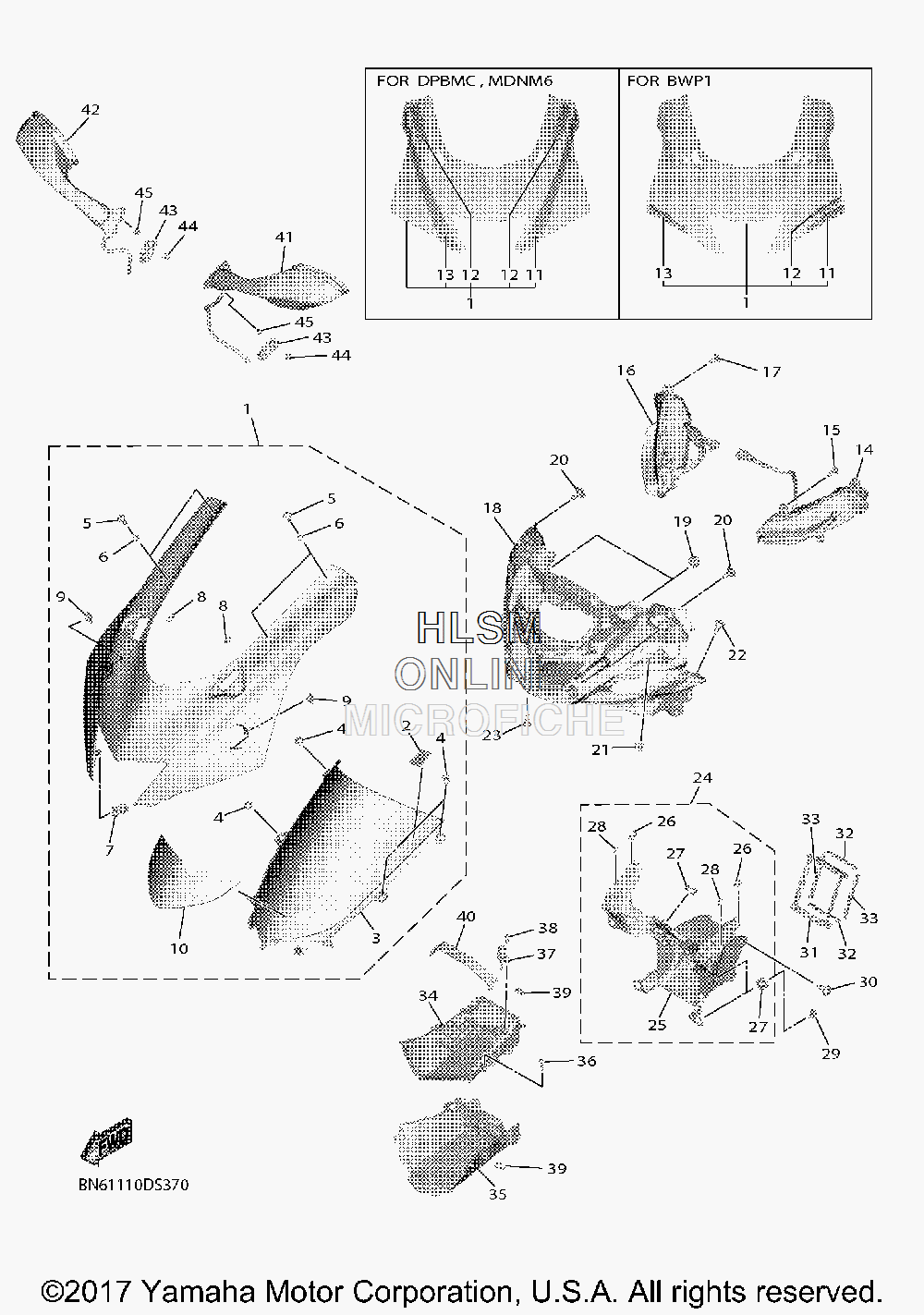

COWLING для Yamaha YZFR6 - 2017 года выпуска
-
№АртикулНазвание
-
1BN6-Y283G-00-P0 BODY, FRONT UPPER 1 (DPBMC - BLUE METALLIC)BODY, FRONT UPPER 1 (DPBMC - BLUE METALLIC)
-
1BN6-Y283G-20-P1 BODY, FRONT UPPER 1 (MDNM6 - GRAY METALLIC)BODY, FRONT UPPER 1 (MDNM6 - GRAY METALLIC)
-
1BN6-Y283G-30-P2 BODY, FRONT UPPER 1 (OPT)BODY, FRONT UPPER 1 (OPT)
-
24B5-2815K-00-00 ...LABEL, NOTICE WINDSHIELD 1...LABEL, NOTICE WINDSHIELD 1
-
3BN6-28381-00-00 ...WINDSHIELD...WINDSHIELD
-
490179-05523-00 ...NUT...NUT
-
590150-05023-00 ...SCREW, ROUND HEAD...SCREW, ROUND HEAD
-
690202-05088-00 ...WASHER, PLATE...WASHER, PLATE
-
790464-07018-00 ...CLAMP...CLAMP
-
820S-2814H-11-00 ...HOOK 1...HOOK 1
-
990183-060A6-00 ...NUT, SPRING...NUT, SPRING
-
10BN6-2832P-00-00 ...GRAPHIC, 18...GRAPHIC, 18
-
11BN6-2832K-00-00 ......GRAPHIC, 12 (DPBMC - BLUE METALLIC)......GRAPHIC, 12 (DPBMC - BLUE METALLIC)
-
11BN6-2832K-10-00 ......GRAPHIC, 12 (MDNM6 - GRAY METALLIC)......GRAPHIC, 12 (MDNM6 - GRAY METALLIC)
-
11BN6-2832K-20-00 ......GRAPHIC, 12 (BWP1 - WHITE PEARL)......GRAPHIC, 12 (BWP1 - WHITE PEARL)
-
12BN6-28328-20-00 ......EMBLEM (BWP1 - WHITE PEARL)......EMBLEM (BWP1 - WHITE PEARL)
-
1299241-00100-00 ...EMBLEM, YAMAHA (DPBMC - BLUE METALLIC, MDNM6 - GRAY METALLIC)...EMBLEM, YAMAHA (DPBMC - BLUE METALLIC, MDNM6 - GRAY METALLIC)
-
13BN6-2832L-00-00 ......GRAPHIC, 13 (DPBMC - BLUE METALLIC)......GRAPHIC, 13 (DPBMC - BLUE METALLIC)
-
13BN6-2832L-10-00 ......GRAPHIC, 13 (MDNM6 - GRAY METALLIC)......GRAPHIC, 13 (MDNM6 - GRAY METALLIC)
-
13BN6-2832L-20-00 ......GRAPHIC, 13 (BWP1 - WHITE PEARL)......GRAPHIC, 13 (BWP1 - WHITE PEARL)
-
14BN6-84301-00-00 PILOT LIGHT ASSY 1PILOT LIGHT ASSY 1
-
1597707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
16BN6-84302-00-00 PILOT LIGHT ASSY 2PILOT LIGHT ASSY 2
-
1797707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
18BN6-2830A-00-00 BODY, COWLINGBODY, COWLING
-
1990480-10003-00 GROMMETGROMMET
-
2090109-06061-00 BOLTBOLT
-
2190183-05076-00 NUT, SPRINGNUT, SPRING
-
2290109-06061-00 BOLTBOLT
-
2390269-06008-00 RIVETRIVET
-
24BN6-28320-00-00 LEG SHIELD STAY SETLEG SHIELD STAY SET
-
25BN6-28356-00-00 ...STAY 1...STAY 1
-
2620S-2814H-11-00 ...HOOK 1...HOOK 1
-
274XV-83513-00-00 ...DAMPER...DAMPER
-
281HX-27415-00-00 ...PLATE, DAMPER...PLATE, DAMPER
-
2990160-05006-00 SCREW, ROUND TAPPINGSCREW, ROUND TAPPING
-
3090111-06116-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
312C0-28342-01-00 JOINTJOINT
-
322C0-28217-00-00 DAMPER 1DAMPER 1
-
332C0-28227-00-00 DAMPER 2DAMPER 2
-
34BN6-2838R-00-00 DUCT 2DUCT 2
-
35BN6-2838T-00-00 DUCT 3DUCT 3
-
3697707-40016-00 SCREW, TAPPINGSCREW, TAPPING
-
378FP-85886-00-00 SENSOR, AIR TEMPERATURESENSOR, AIR TEMPERATURE
-
3897702-50116-00 SCREW, TAPPINGSCREW, TAPPING
-
3951Y-21639-00-00 DAMPER 2DAMPER 2
-
40133-82131-00-00 BAND, BATTERYBAND, BATTERY
-
41BN6-26280-10-00 REAR VIEW MIRROR ASSY (LEFT)REAR VIEW MIRROR ASSY (LEFT)
-
42BN6-26290-10-00 REAR VIEW MIRROR ASSY (RIGHT)REAR VIEW MIRROR ASSY (RIGHT)
-
434C8-26298-00-00 PLATE, MIRROR FITTING 1PLATE, MIRROR FITTING 1
-
4490176-06055-00 NUT, CROWNNUT, CROWN
-
4590387-064T3-00 COLLARCOLLAR
