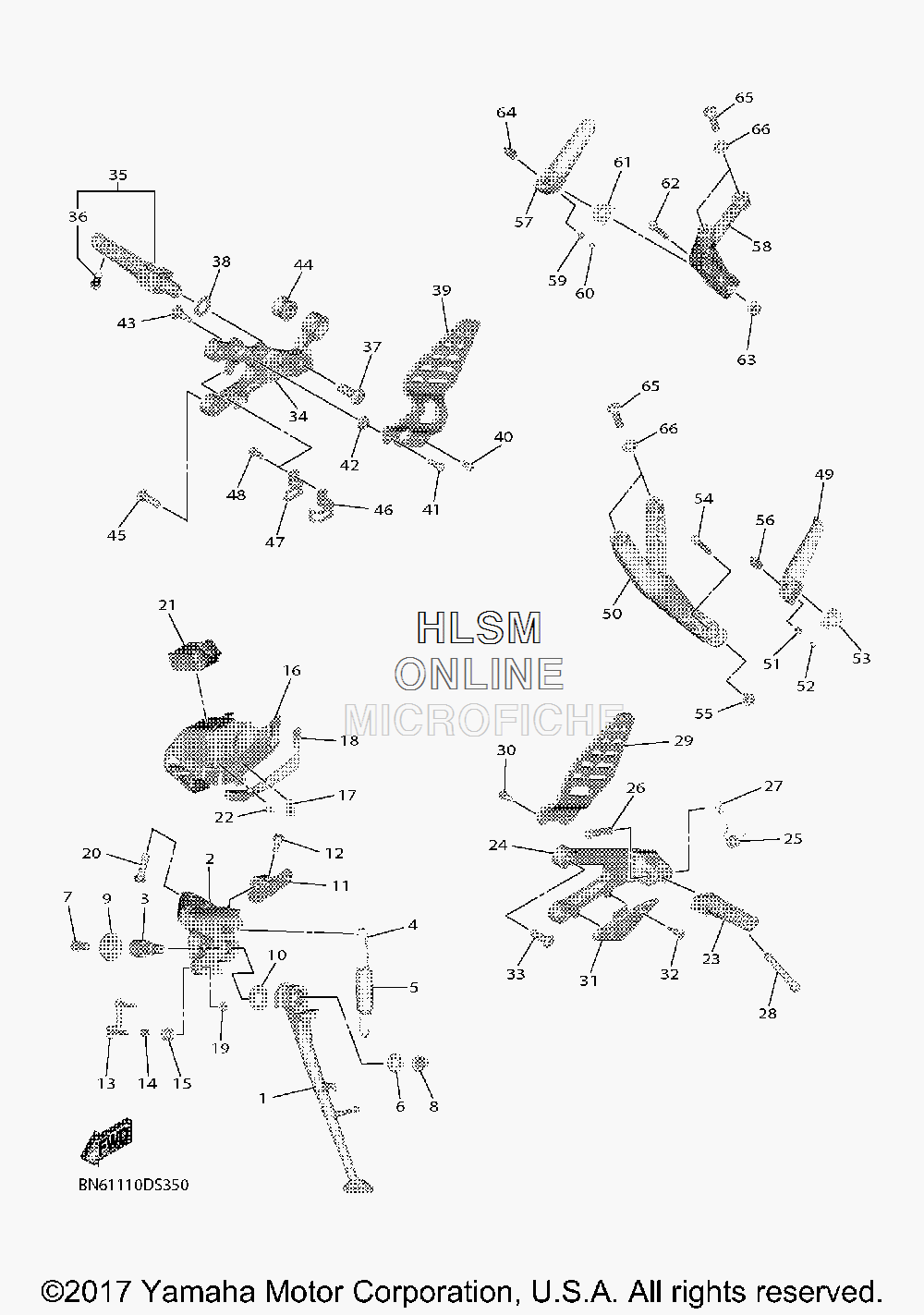

STAND W/ FOOTREST - BRAKE PEDAL для Yamaha YZFR6 - 2017 года выпуска
-
№АртикулНазвание
-
12C0-27311-10-00 STAND, SIDESTAND, SIDE
-
22C0-27321-10-00 BRACKET, SIDE STANDBRACKET, SIDE STAND
-
32C0-27351-00-00 GUIDE, SIDE STANDGUIDE, SIDE STAND
-
490506-18008-00 SPRING, TENSIONSPRING, TENSION
-
590445-19002-00 HOSE (L60)HOSE (L60)
-
690201-10035-00 WASHER, PLATEWASHER, PLATE
-
790101-08662-00 BOLTBOLT
-
895602-10200-00 NUT, S/L FLANGENUT, S/L FLANGE
-
990201-08050-00 WASHER, PLATEWASHER, PLATE
-
1090201-146F9-00 WASHER, PLATEWASHER, PLATE
-
1113S-2836F-00-00 BRACKET 3BRACKET 3
-
1290105-06020-00 BOLT, FLANGEBOLT, FLANGE
-
13BN6-27263-00-00 BRACKET 1BRACKET 1
-
1490387-05025-00 COLLARCOLLAR
-
1590480-11006-00 GROMMETGROMMET
-
16BN6-27453-00-00 COVER 1COVER 1
-
172C0-27414-00-00 DAMPER, FOOTRESTDAMPER, FOOTREST
-
1890520-10031-00 DAMPER, PLATEDAMPER, PLATE
-
1990185-05009-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2090111-08065-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
212C0-28425-00-00 DAMPER 3DAMPER 3
-
222C0-21485-00-00 DAMPER, RUBBER 1DAMPER, RUBBER 1
-
231KB-27451-00-00 FOOTRESTFOOTREST
-
242C0-27442-10-00 BRACKET 2BRACKET 2
-
2590508-18134-00 SPRING, TORSIONSPRING, TORSION
-
2690240-08084-00 PIN, CLEVISPIN, CLEVIS
-
2791402-25015-00 PIN, COTTERPIN, COTTER
-
2890109-08233-00 BOLTBOLT
-
292C0-27445-10-00 PLATE 1PLATE 1
-
3090149-06233-00 SCREWSCREW
-
312C0-27491-00-00 PROTECTORPROTECTOR
-
3290269-06008-00 RIVETRIVET
-
3390109-085G6-00 BOLTBOLT
-
342C0-27443-10-00 BRACKET 3BRACKET 3
-
35BN6-27420-00-00 FRONT FOOTREST ASSY (RIGHT)FRONT FOOTREST ASSY (RIGHT)
-
3690109-086F8-00 ...BOLT...BOLT
-
3790109-103A9-00 BOLTBOLT
-
3890214-13002-00 WASHER, CLAWWASHER, CLAW
-
3913S-27446-10-00 PLATE 2PLATE 2
-
4090149-06233-00 SCREWSCREW
-
4190111-06067-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
4290387-06215-00 COLLARCOLLAR
-
4390109-066F0-00 BOLTBOLT
-
442C0-14747-00-00 DAMPER, MUFFLERDAMPER, MUFFLER
-
4590109-085G6-00 BOLTBOLT
-
462C0-2116K-00-00 BRACKET 8BRACKET 8
-
472C0-2116L-00-00 BRACKET 9BRACKET 9
-
4895024-06012-00 BOLT, FLANGE (SMALL HEAD)BOLT, FLANGE (SMALL HEAD)
-
495JJ-27431-10-00 FOOTREST, REAR 1FOOTREST, REAR 1
-
502CR-2741L-00-00 BRACKET 4BRACKET 4
-
5190501-12743-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
5293501-04011-00 BALLBALL
-
535JJ-27437-01-00 WASHER, SPECIALWASHER, SPECIAL
-
5491312-06035-00 BOLTBOLT
-
5595602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
5690387-06697-00 COLLARCOLLAR
-
575JJ-27441-10-00 FOOTREST, REAR 2FOOTREST, REAR 2
-
582CR-2742L-00-00 BRACKET 5BRACKET 5
-
5990501-12743-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
6093501-04011-00 BALLBALL
-
615JJ-27437-01-00 WASHER, SPECIALWASHER, SPECIAL
-
6291312-06035-00 BOLTBOLT
-
6395602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
6490387-06697-00 COLLARCOLLAR
-
6590111-08066-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
6613S-27417-00-00 WASHER, FOOTRESTWASHER, FOOTREST
