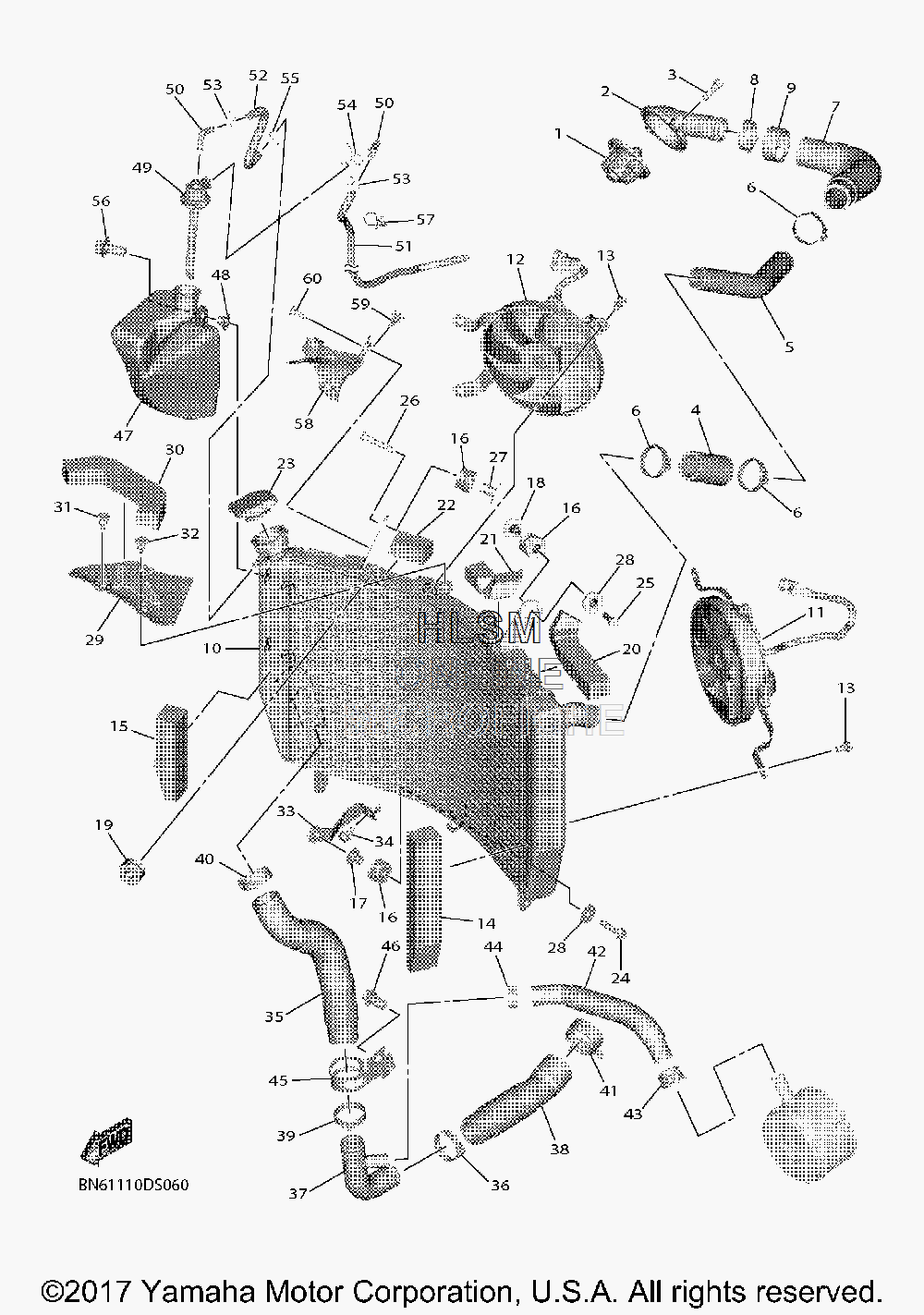

RADIATOR для Yamaha YZFR6 - 2017 года выпуска
-
№АртикулНазвание
-
15SL-12410-00-00 THERMOSTAT ASSYTHERMOSTAT ASSY
-
22C0-12413-00-00 COVER, THERMOSTATCOVER, THERMOSTAT
-
391312-06020-00 BOLTBOLT
-
42C0-12578-01-00 HOSE 3HOSE 3
-
52C0-12481-00-00 PIPE 1PIPE 1
-
690467-320A0-00 CLIPCLIP
-
72C0-12552-00-00 HOSE 8HOSE 8
-
890450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
95GV-1246E-00-00 COVER 2COVER 2
-
10BN6-12461-00-00 RADIATOR COMPRADIATOR COMP
-
112C0-12405-00-00 BLOWER ASSYBLOWER ASSY
-
122C0-12405-10-00 BLOWER ASSYBLOWER ASSY
-
135GJ-12675-00-00 BOLT, BLOWER HOLDINGBOLT, BLOWER HOLDING
-
142C0-12659-00-00 DAMPER, AIR SHROUD 2DAMPER, AIR SHROUD 2
-
152C0-12668-00-00 DAMPER, AIR SHROUD 3DAMPER, AIR SHROUD 3
-
1690480-15363-00 GROMMETGROMMET
-
1790387-07391-00 COLLARCOLLAR
-
1890387-0614M-00 COLLARCOLLAR
-
1990480-01029-00 GROMMETGROMMET
-
2013S-12659-00-00 DAMPER, AIR SHROUD 2DAMPER, AIR SHROUD 2
-
2113S-12678-00-00 DAMPER, AIR SHROUD 5DAMPER, AIR SHROUD 5
-
2213S-12688-00-00 DAMPER, SHROUD 7DAMPER, SHROUD 7
-
235SL-12462-00-00 CAP, RADIATORCAP, RADIATOR
-
2490105-06040-00 BOLT, FLANGEBOLT, FLANGE
-
2592017-06035-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2691317-06035-00 BOLT, HEX. SOCKET HEADBOLT, HEX. SOCKET HEAD
-
2790387-0614M-00 COLLARCOLLAR
-
2890201-06071-00 WASHER, PLATEWASHER, PLATE
-
29BN6-12535-00-00 PLATEPLATE
-
3013S-12669-00-00 DAMPER, AIR SHROUD 4DAMPER, AIR SHROUD 4
-
3190269-06081-00 RIVETRIVET
-
3290269-07007-00 RIVETRIVET
-
332C0-1244E-00-00 BRACKET 1BRACKET 1
-
3495827-06012-00 BOLT, FLANGEBOLT, FLANGE
-
352C0-12579-00-00 HOSE 4HOSE 4
-
3690467-320A0-00 CLIPCLIP
-
372C0-12582-00-00 JOINT, HOSE 2JOINT, HOSE 2
-
382C0-12551-00-00 HOSE 7HOSE 7
-
3990467-320A0-00 CLIPCLIP
-
4090467-320A0-00 CLIPCLIP
-
4190467-310A0-00 CLIPCLIP
-
422C0-12589-00-00 HOSE 6HOSE 6
-
4390467-200A0-00 CLIPCLIP
-
4490467-210A2-00 CLIPCLIP
-
452C0-12491-00-00 CLAMP 1CLAMP 1
-
4695027-10020-00 BOLT, FLANGEBOLT, FLANGE
-
472C0-21871-00-00 TANK, RECOVERYTANK, RECOVERY
-
4890387-06681-00 COLLARCOLLAR
-
492C0-21875-00-00 CAPCAP
-
5026H-21828-00-00 ELBOWELBOW
-
512C0-21816-01-00 PIPE 1PIPE 1
-
522C0-1243F-00-00 HOSE,3HOSE,3
-
5390467-08003-00 CLIPCLIP
-
5490467-10M04-00 CLIPCLIP
-
5590467-08003-00 CLIPCLIP
-
5695D02-06014-00 BOLT, FLANGE DEEP RECESSBOLT, FLANGE DEEP RECESS
-
5790464-10M38-00 CLAMPCLAMP
-
58BN6-1246H-00-00 COVER 5COVER 5
-
5990269-07007-00 RIVETRIVET
-
6090269-06083-00 RIVETRIVET
