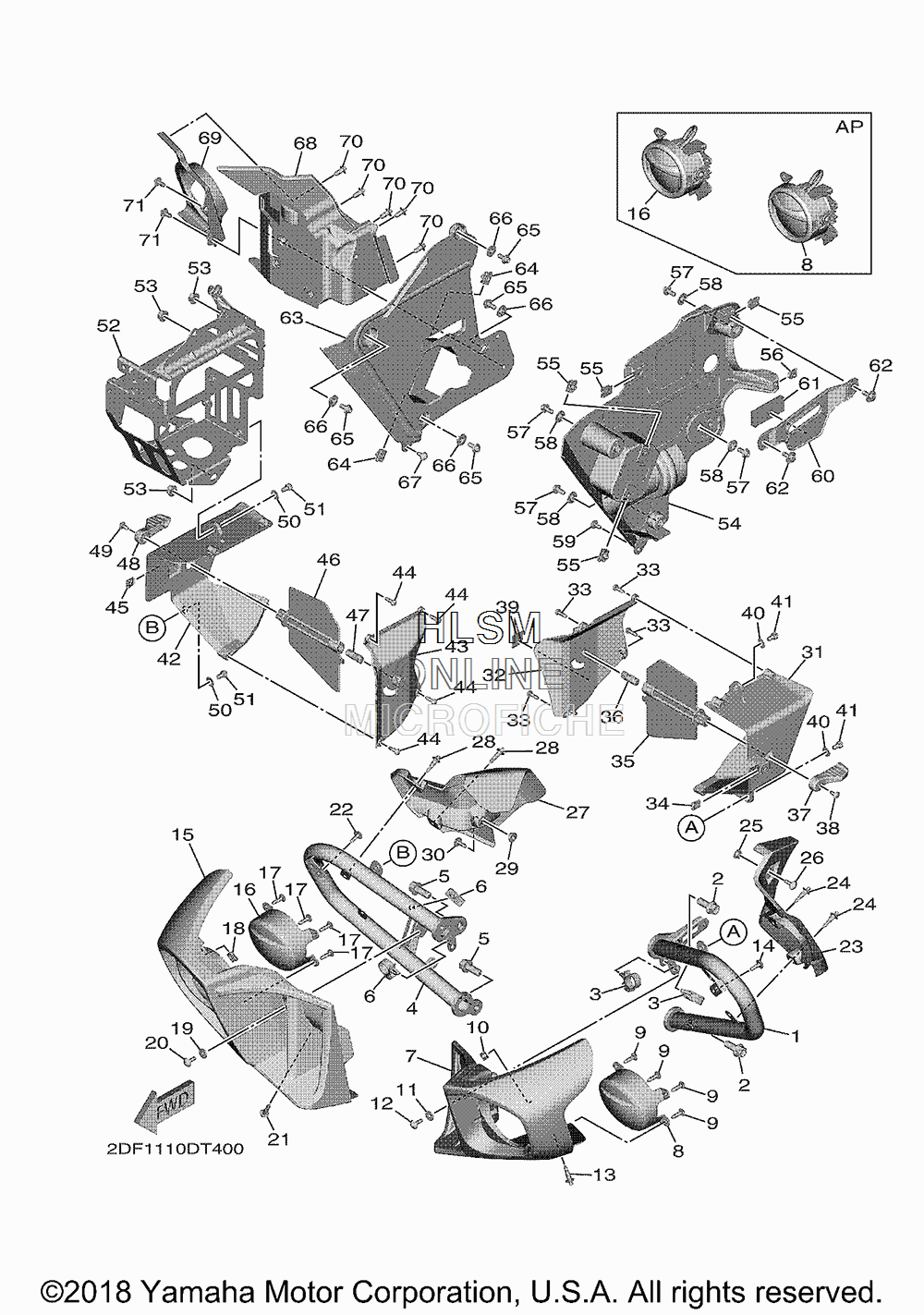

COWLING 4 для Yamaha STAR VENTURE - 2018 года выпуска
-
№АртикулНазвание
-
12DF-28418-00-00 GUARD, ENGINE 1GUARD, ENGINE 1
-
290105-10475-00 BOLT, FLANGEBOLT, FLANGE
-
390464-16006-00 CLAMPCLAMP
-
42DF-28419-00-00 GUARD, ENGINE 2GUARD, ENGINE 2
-
590105-10475-00 BOLT, FLANGEBOLT, FLANGE
-
690464-16006-00 CLAMPCLAMP
-
72DF-2835J-00-00 BODY, FRONT UNDER 1BODY, FRONT UNDER 1
-
82DF-28349-00-00 CAPCAP
-
82DF-85450-00-00 FOG LIGHT ASSY (OPT)FOG LIGHT ASSY (OPT)
-
997702-50020-00 SCREW, TAPPINGSCREW, TAPPING
-
1090183-05076-00 NUT, SPRINGNUT, SPRING
-
1190201-054K4-00 WASHER, PLATEWASHER, PLATE
-
1290111-05055-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1390269-06008-00 RIVETRIVET
-
1490111-05034-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
152DF-2835K-00-00 BODY, FRONT UNDER 2BODY, FRONT UNDER 2
-
162DF-28349-00-00 CAPCAP
-
162DF-85450-00-00 FOG LIGHT ASSY (OPT)FOG LIGHT ASSY (OPT)
-
1797702-50020-00 SCREW, TAPPINGSCREW, TAPPING
-
1890183-05076-00 NUT, SPRINGNUT, SPRING
-
1990201-054K4-00 WASHER, PLATEWASHER, PLATE
-
2090111-05055-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2190269-06008-00 RIVETRIVET
-
2290111-05034-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
232DF-84544-00-00 COVERCOVER
-
2490269-06008-00 RIVETRIVET
-
2590560-06244-00 SPACERSPACER
-
2690111-05021-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
272DF-84797-00-00 COVERCOVER
-
2890269-06008-00 RIVETRIVET
-
2990560-06244-00 SPACERSPACER
-
3090111-05021-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
312DF-2838X-00-00 BOX, 5BOX, 5
-
322DF-2833K-00-00 BRACKET 13BRACKET 13
-
3397707-50516-00 SCREW, TAPPINGSCREW, TAPPING
-
3490183-05042-00 NUT, SPRINGNUT, SPRING
-
352DF-28273-00-00 FIN 1FIN 1
-
362DF-2837F-00-00 HINGEHINGE
-
372DF-2836X-00-00 KNOB, 1KNOB, 1
-
3897707-50012-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
393TB-28217-00-00 DAMPER 1DAMPER 1
-
4090201-06049-00 WASHER, PLATEWASHER, PLATE
-
4191317-06010-00 BOLT, HEX. SOCKET HEADBOLT, HEX. SOCKET HEAD
-
422DF-2838Y-00-00 BOXBOX
-
432DF-2833L-00-00 BRACKET 14BRACKET 14
-
4497707-50516-00 SCREW, TAPPINGSCREW, TAPPING
-
4590183-05042-00 NUT, SPRINGNUT, SPRING
-
462DF-28273-00-00 FIN 1FIN 1
-
472DF-2837F-00-00 HINGEHINGE
-
482DF-2836Y-00-00 KNOB, 2KNOB, 2
-
4997707-50012-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
5090201-06049-00 WASHER, PLATEWASHER, PLATE
-
5191317-06010-00 BOLT, HEX. SOCKET HEADBOLT, HEX. SOCKET HEAD
-
522DF-283D0-00-00 INNER PANEL ASSYINNER PANEL ASSY
-
5395702-08500-00 NUT, FLANGENUT, FLANGE
-
542DF-2836M-00-00 PANEL, INNER 3PANEL, INNER 3
-
5590183-06053-00 NUT, SPRINGNUT, SPRING
-
5690183-05076-00 NUT, SPRINGNUT, SPRING
-
5790110-06245-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
5890387-07717-00 COLLARCOLLAR
-
5990167-05079-00 SCREW, TAPPINGSCREW, TAPPING
-
602DF-81174-00-00 HOOKHOOK
-
611UY-21638-00-00 DAMPER 1DAMPER 1
-
6290119-06209-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
632DF-2836N-00-00 PANEL, INNER 4PANEL, INNER 4
-
6490183-06053-00 NUT, SPRINGNUT, SPRING
-
6590110-06245-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
6690387-07717-00 COLLARCOLLAR
-
6790167-05079-00 SCREW, TAPPINGSCREW, TAPPING
-
682DF-2838K-00-00 BOX 1BOX 1
-
692DF-28276-00-00 PLATEPLATE
-
7090269-06019-00 RIVETRIVET
-
7190269-06019-00 RIVETRIVET
