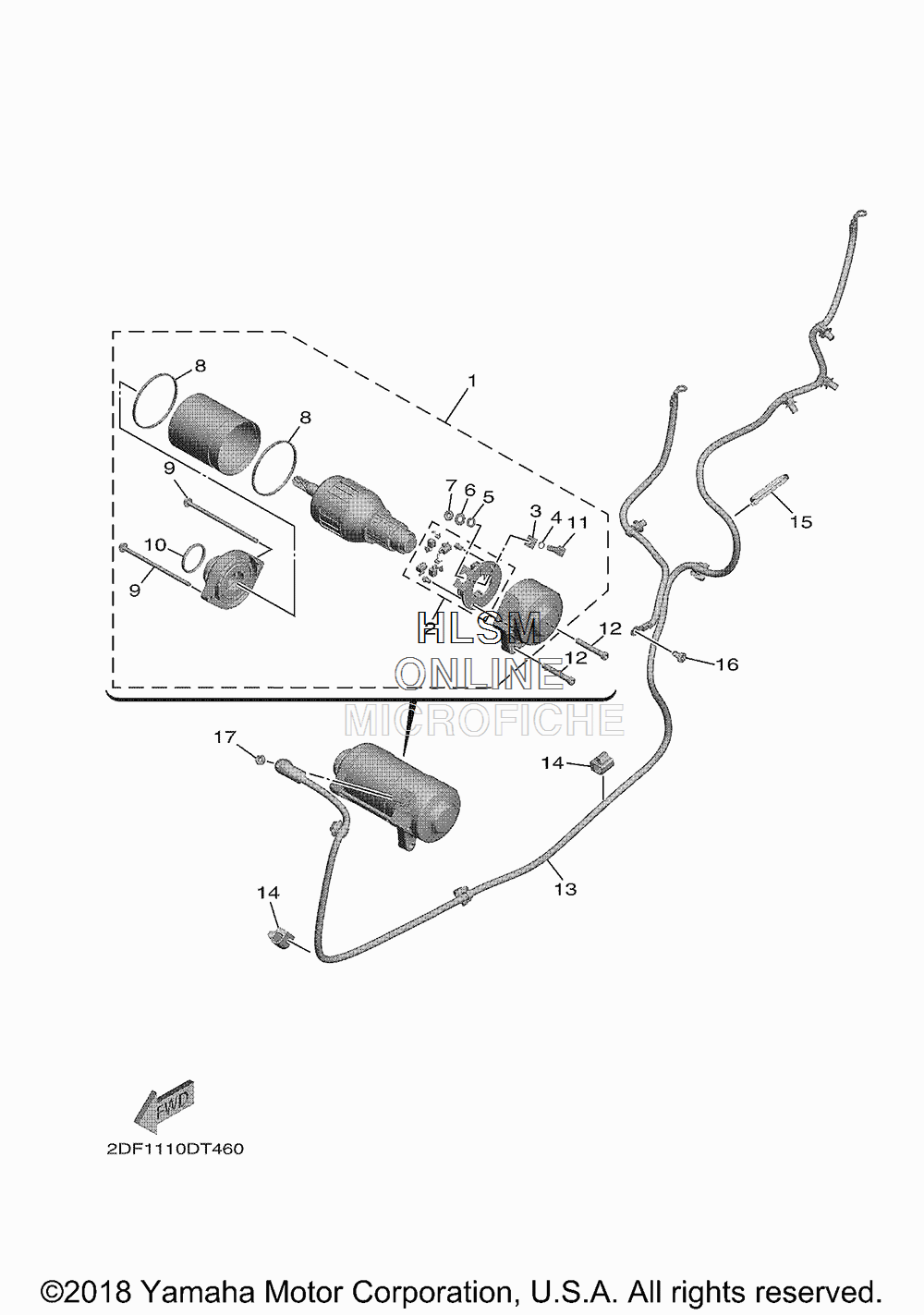

STARTING MOTOR для Yamaha STAR VENTURE - 2018 года выпуска
-
№АртикулНазвание
-
12DF-81890-00-00 MOTOR ASSYMOTOR ASSY
-
22S3-81801-00-00 ...BRUSH SET...BRUSH SET
-
32S3-8182G-00-00 ...BUSH, TERMINAL...BUSH, TERMINAL
-
493210-06422-00 ...O-RING...O-RING
-
58FA-8181L-00-00 ...WASHER, PLAIN...WASHER, PLAIN
-
61D7-81835-00-00 ...WASHER...WASHER
-
795302-06700-00 ...NUT, HEXAGON...NUT, HEXAGON
-
81D7-81861-00-00 ...GASKET...GASKET
-
98FA-81846-01-00 ...SCREW...SCREW
-
1093210-25711-00 ...O-RING...O-RING
-
112S3-81828-00-00 ...SCREW 2...SCREW 2
-
1290110-06387-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
132DF-8183G-00-00 CORD COMP.CORD COMP.
-
1490464-08011-00 CLAMPCLAMP
-
1590464-15195-00 CLAMPCLAMP
-
1690153-06044-00 SCREW, HEXAGONSCREW, HEXAGON
-
1795302-06700-00 NUT, HEXAGONNUT, HEXAGON
