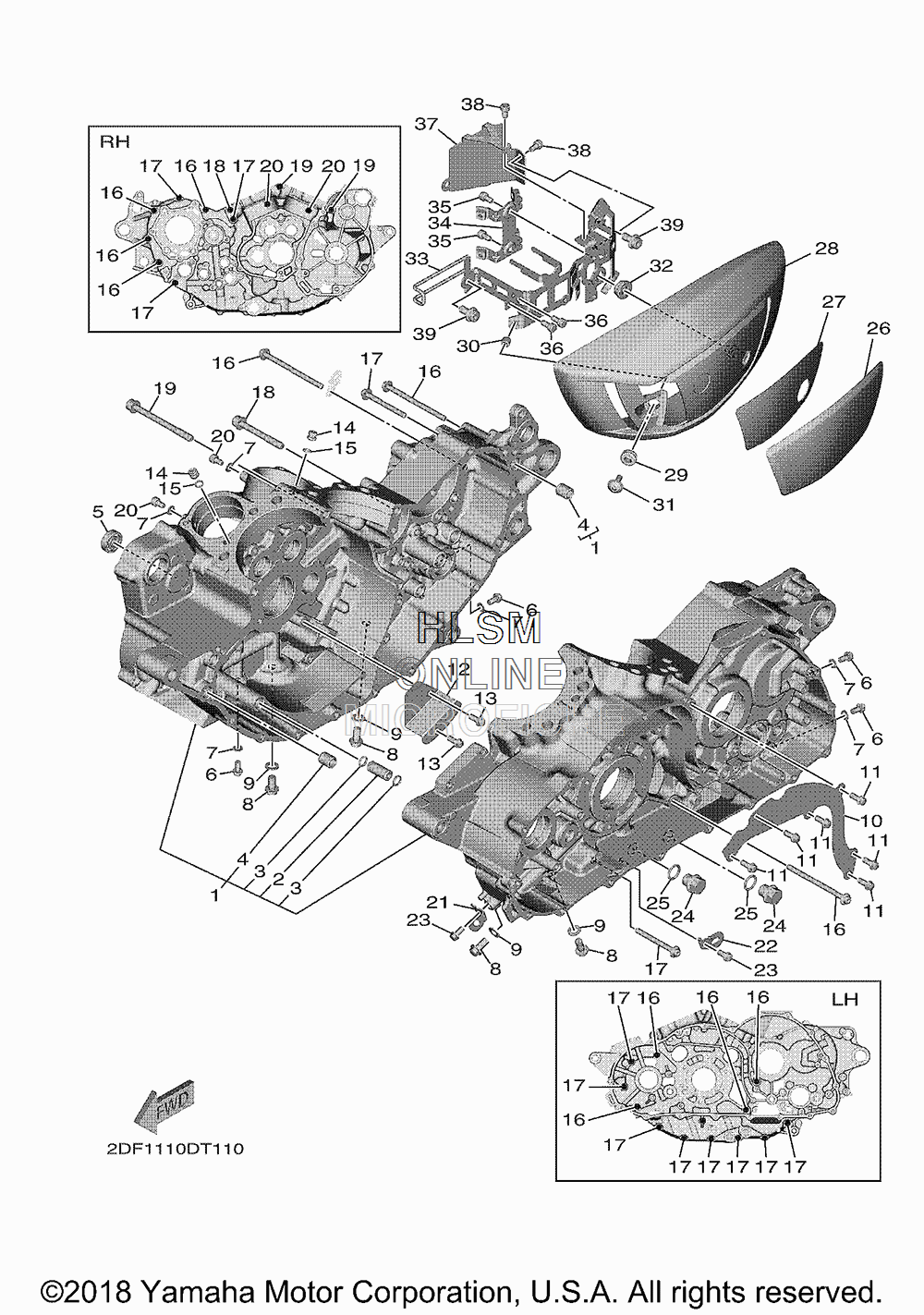

CRANKCASE для Yamaha STAR VENTURE - 2018 года выпуска
-
№АртикулНазвание
-
12DF-15100-09-00 CRANKCASE ASSYCRANKCASE ASSY
-
22DF-15138-00-00 ...NOZZLE 1...NOZZLE 1
-
393210-10003-00 ...O-RING...O-RING
-
499530-14016-00 ...PIN, DOWEL...PIN, DOWEL
-
593306-00006-00 BEARINGBEARING
-
695022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
790430-06014-00 GASKETGASKET
-
895022-08016-00 BOLT, FLANGEBOLT, FLANGE
-
990430-08119-00 GASKETGASKET
-
102DF-15191-00-00 PLATEPLATE
-
1190105-06218-00 BOLT, FLANGEBOLT, FLANGE
-
122DF-15412-00-00 COVER, OIL PUMPCOVER, OIL PUMP
-
1390105-06218-00 BOLT, FLANGEBOLT, FLANGE
-
142DF-15189-00-00 PLUGPLUG
-
1593210-07435-00 O-RINGO-RING
-
1690110-06408-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1790110-06407-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1890110-08119-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1990110-08117-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2091314-06010-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
212DF-15563-00-00 HOLDER, CLIPHOLDER, CLIP
-
222DF-15758-00-00 GUIDE, ROPEGUIDE, ROPE
-
2395022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
2490340-14005-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
25214-11198-01-00 GASKETGASKET
-
262DF-2172W-00-00 COVERCOVER
-
272DF-21732-00-00 SEAL 1SEAL 1
-
282DF-21731-00-00 COVER, SIDE 3COVER, SIDE 3
-
2990480-13018-00 GROMMETGROMMET
-
3090387-0611W-00 COLLARCOLLAR
-
3190111-06130-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
3290480-13567-00 GROMMETGROMMET
-
332DF-2175V-00-00 BRACKET 3BRACKET 3
-
343D8-21359-01-00 BRACKET, COILBRACKET, COIL
-
3591312-06010-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3691312-06012-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
372DF-1442F-00-00 PROTECTORPROTECTOR
-
3891312-06010-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3990110-08052-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
