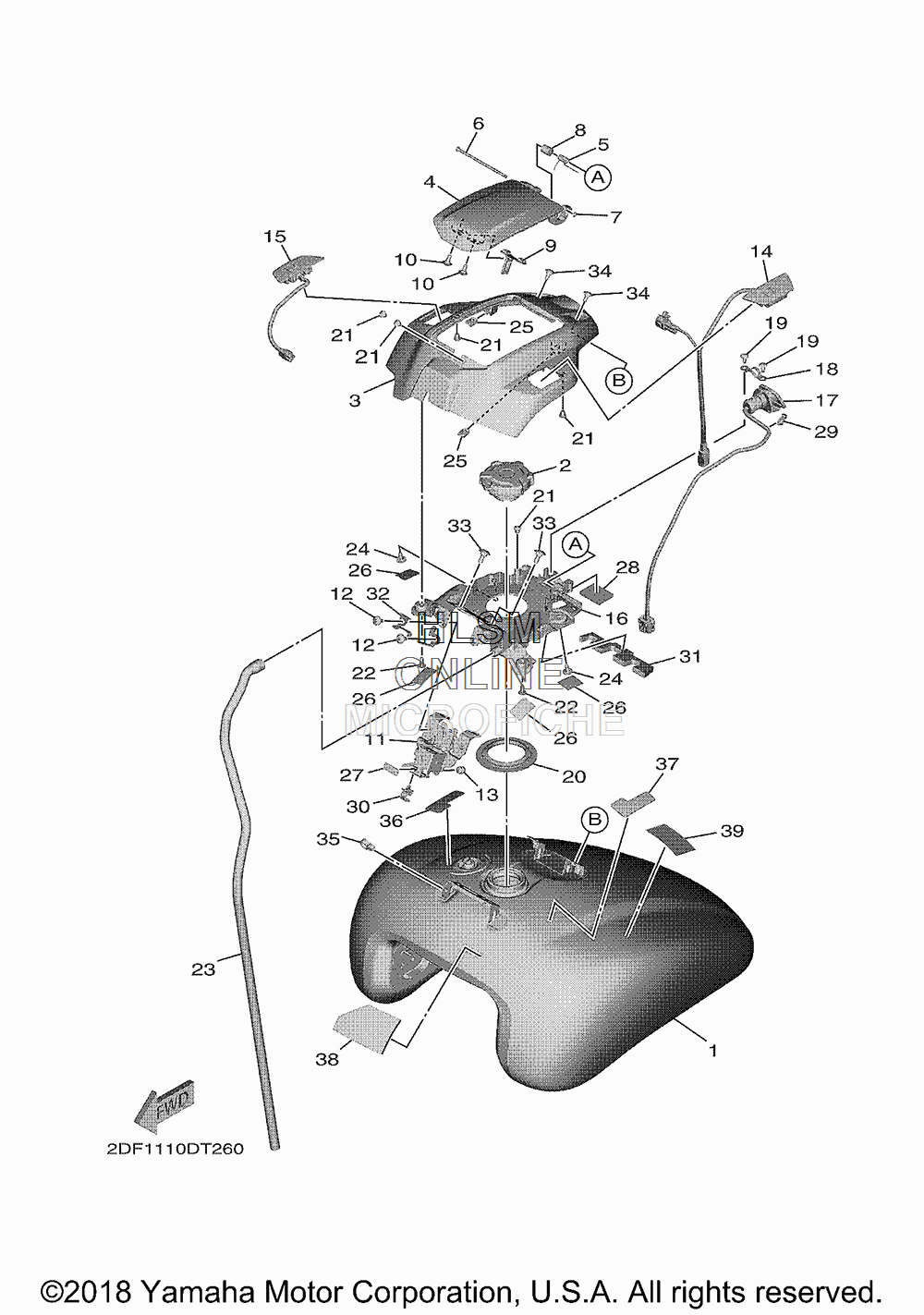

FUEL TANK для Yamaha STAR VENTURE - 2018 года выпуска
-
№АртикулНазвание
-
12DF-YK241-00-P0 FUEL TANK COMP. (DNMG - DARK GRAY)FUEL TANK COMP. (DNMG - DARK GRAY)
-
12DF-YK241-00-P1 FUEL TANK COMP. (DRMD - DULL RED)FUEL TANK COMP. (DRMD - DULL RED)
-
22DF-24610-00-00 CAP ASSYCAP ASSY
-
32DF-241B1-00-00 COVER, TANKCOVER, TANK
-
42DF-274A8-00-00 LID, FUELLID, FUEL
-
590508-15012-00 SPRING, TORSIONSPRING, TORSION
-
62DF-24374-00-00 PINPIN
-
799002-03600-00 CIRCLIPCIRCLIP
-
82DF-2834E-00-00 DAMPER 3DAMPER 3
-
92DF-2814J-00-00 HOOK 2HOOK 2
-
1090111-05054-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
112DF-21780-00-00 LOCK ASSYLOCK ASSY
-
1290110-05215-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
135A8-21639-00-00 DAMPER 2DAMPER 2
-
142DF-8259E-00-00 SWITCH ASSYSWITCH ASSY
-
152DF-8259F-00-00 SWITCH ASSYSWITCH ASSY
-
162DF-2414A-00-00 COVER, FILLERCOVER, FILLER
-
172DF-88196-00-00 CORD, HEAD SET 1CORD, HEAD SET 1
-
182DF-24216-00-00 STAYSTAY
-
1990160-05018-00 SCREW, ROUND TAPPINGSCREW, ROUND TAPPING
-
202DF-2414G-00-00 SEALSEAL
-
2190338-06018-00 PLUGPLUG
-
2297702-50012-00 SCREW, TAPPINGSCREW, TAPPING
-
232DF-24318-00-00 PIPE, OVERFLOWPIPE, OVERFLOW
-
2490110-05201-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2590183-05076-00 NUT, SPRINGNUT, SPRING
-
265GJ-24723-00-00 DAMPER, SEATDAMPER, SEAT
-
275B6-23455-00-00 DAMPERDAMPER
-
2890520-06008-00 DAMPER, PLATEDAMPER, PLATE
-
2990464-36005-00 CLAMPCLAMP
-
3090464-09129-00 CLAMPCLAMP
-
312DF-28371-00-00 DAMPERDAMPER
-
322DF-23486-00-00 STAY, PLATESTAY, PLATE
-
3390109-06253-00 BOLTBOLT
-
3490111-05054-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
3590464-13133-00 CLAMPCLAMP
-
362DF-241A3-00-00 SEAL 3SEAL 3
-
372DF-241A4-00-00 SEAL 4SEAL 4
-
382DF-2414K-00-00 DAMPER, PLATE 3DAMPER, PLATE 3
-
3929P-2816R-00-00 LABEL, WARNING GENERAL INFO.LABEL, WARNING GENERAL INFO.
