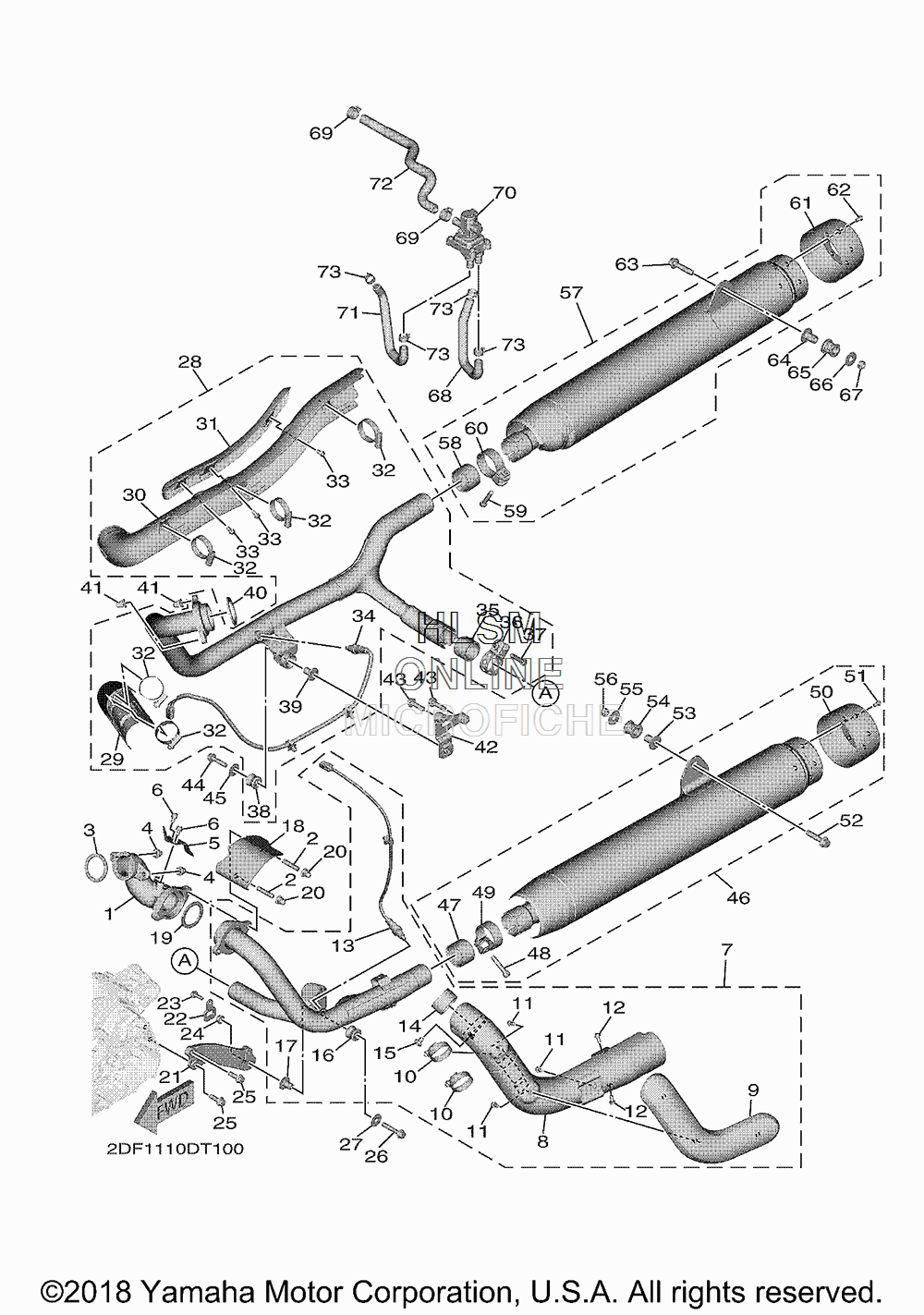

EXHAUST для Yamaha STAR VENTURE - 2018 года выпуска
-
№АртикулНазвание
-
12DF-14615-00-00 JOINT, EXHAUST 1JOINT, EXHAUST 1
-
295612-08625-00 BOLT, STUDBOLT, STUD
-
33EG-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
490185-08097-00 NUT,SELF-LOCKINGNUT,SELF-LOCKING
-
52DF-1468X-00-00 PLATE, SILENCER 4PLATE, SILENCER 4
-
690119-06115-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
72DF-14610-00-00 EXHAUST PIPE ASSY 1EXHAUST PIPE ASSY 1
-
82DF-14718-00-00 ...PROTECTOR, MUFFLER 1...PROTECTOR, MUFFLER 1
-
92DF-14728-00-00 ...PROTECTOR, MUFFLER 2...PROTECTOR, MUFFLER 2
-
1090450-45001-00 ...HOSE CLAMP ASSY...HOSE CLAMP ASSY
-
1195022-06010-00 ...BOLT, FLANGE...BOLT, FLANGE
-
1295024-06012-00 ...BOLT, FLANGE (SMALL HEAD)...BOLT, FLANGE (SMALL HEAD)
-
132DF-8592A-00-00 ...SENSOR, OXYGEN...SENSOR, OXYGEN
-
141D7-14714-00-00 ...GASKET, MUFFLER...GASKET, MUFFLER
-
1590111-08086-00 ...BOLT, HEX. SOCKET BUTTON...BOLT, HEX. SOCKET BUTTON
-
165VY-14747-00-00 ...DAMPER, MUFFLER...DAMPER, MUFFLER
-
1790387-08021-00 ...COLLAR...COLLAR
-
182DF-14624-00-00 COVER, EXHAUSTCOVER, EXHAUST
-
193EG-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
2090176-08006-00 NUT, CROWNNUT, CROWN
-
212DF-1478K-00-00 PLATE, 5PLATE, 5
-
222DF-1464L-00-00 BRACKET, 4-1BRACKET, 4-1
-
2390105-06127-00 BOLT, FLANGEBOLT, FLANGE
-
2495702-08500-00 NUT, FLANGENUT, FLANGE
-
2595812-08025-00 BOLT, FLANGEBOLT, FLANGE
-
2695812-08045-00 BOLT, FLANGEBOLT, FLANGE
-
2790201-08061-00 WASHER, PLATEWASHER, PLATE
-
282DF-14620-00-00 EXHAUST PIPE ASSY 2EXHAUST PIPE ASSY 2
-
292DF-14738-00-00 ...PROTECTOR, MUFFLER 3...PROTECTOR, MUFFLER 3
-
302DF-14748-00-00 ...PROTECTOR, MUFFLER 4...PROTECTOR, MUFFLER 4
-
312DF-14758-00-00 ...PROTECTOR, SILENCER...PROTECTOR, SILENCER
-
3290450-45001-00 ...HOSE CLAMP ASSY...HOSE CLAMP ASSY
-
3395022-06010-00 ...BOLT, FLANGE...BOLT, FLANGE
-
342DF-8592A-10-00 ...SENSOR, OXYGEN...SENSOR, OXYGEN
-
3519D-14755-00-00 ...GASKET, SILENCER...GASKET, SILENCER
-
362DF-14725-00-00 ...BAND, MUFFLER...BAND, MUFFLER
-
3791312-08040-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
385VY-14747-00-00 ...DAMPER, MUFFLER...DAMPER, MUFFLER
-
3990387-08021-00 ...COLLAR...COLLAR
-
403EG-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
4190176-08006-00 NUT, CROWNNUT, CROWN
-
422DF-14649-00-00 STAY, EXHAUST PIPE 2STAY, EXHAUST PIPE 2
-
4395817-08030-00 BOLT, FLANGEBOLT, FLANGE
-
4495812-08035-00 BOLT, FLANGEBOLT, FLANGE
-
4590201-08061-00 WASHER, PLATEWASHER, PLATE
-
462DF-14710-00-00 MUFFLER ASSY 1MUFFLER ASSY 1
-
47B71-14755-00-00 ...GASKET, SILENCER...GASKET, SILENCER
-
4890110-08112-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
492DF-14715-00-00 ...BAND, MUFFLER...BAND, MUFFLER
-
502DF-14799-00-00 ...CAP...CAP
-
5190111-06166-00 ...BOLT, HEX. SOCKET BUTTON...BOLT, HEX. SOCKET BUTTON
-
5295812-10045-00 BOLT, FLANGEBOLT, FLANGE
-
5390387-10636-00 COLLARCOLLAR
-
542DF-14747-00-00 DAMPER, MUFFLERDAMPER, MUFFLER
-
5590201-10043-00 WASHER, PLATEWASHER, PLATE
-
5695602-10100-00 NUT, UNUT, U
-
572DF-14720-00-00 MUFFLER ASSY 2MUFFLER ASSY 2
-
58B71-14755-00-00 ...GASKET, SILENCER...GASKET, SILENCER
-
5990110-08112-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
605S7-14715-00-00 ...BAND, MUFFLER...BAND, MUFFLER
-
612DF-14799-00-00 ...CAP...CAP
-
6290111-06166-00 ...BOLT, HEX. SOCKET BUTTON...BOLT, HEX. SOCKET BUTTON
-
6395812-10045-00 BOLT, FLANGEBOLT, FLANGE
-
6490387-10636-00 COLLARCOLLAR
-
652DF-14747-00-00 DAMPER, MUFFLERDAMPER, MUFFLER
-
6690201-10043-00 WASHER, PLATEWASHER, PLATE
-
6795602-10100-00 NUT, UNUT, U
-
682DF-14881-00-00 HOSE, BEND 1HOSE, BEND 1
-
6990467-17003-00 CLIPCLIP
-
702DF-14803-00-00 AIR INDUCTION SYSTEM ASSYAIR INDUCTION SYSTEM ASSY
-
712DF-14882-00-00 HOSE, BEND 2HOSE, BEND 2
-
722DF-14883-00-00 HOSE, BEND 3HOSE, BEND 3
-
7390468-08104-00 CLIPCLIP
