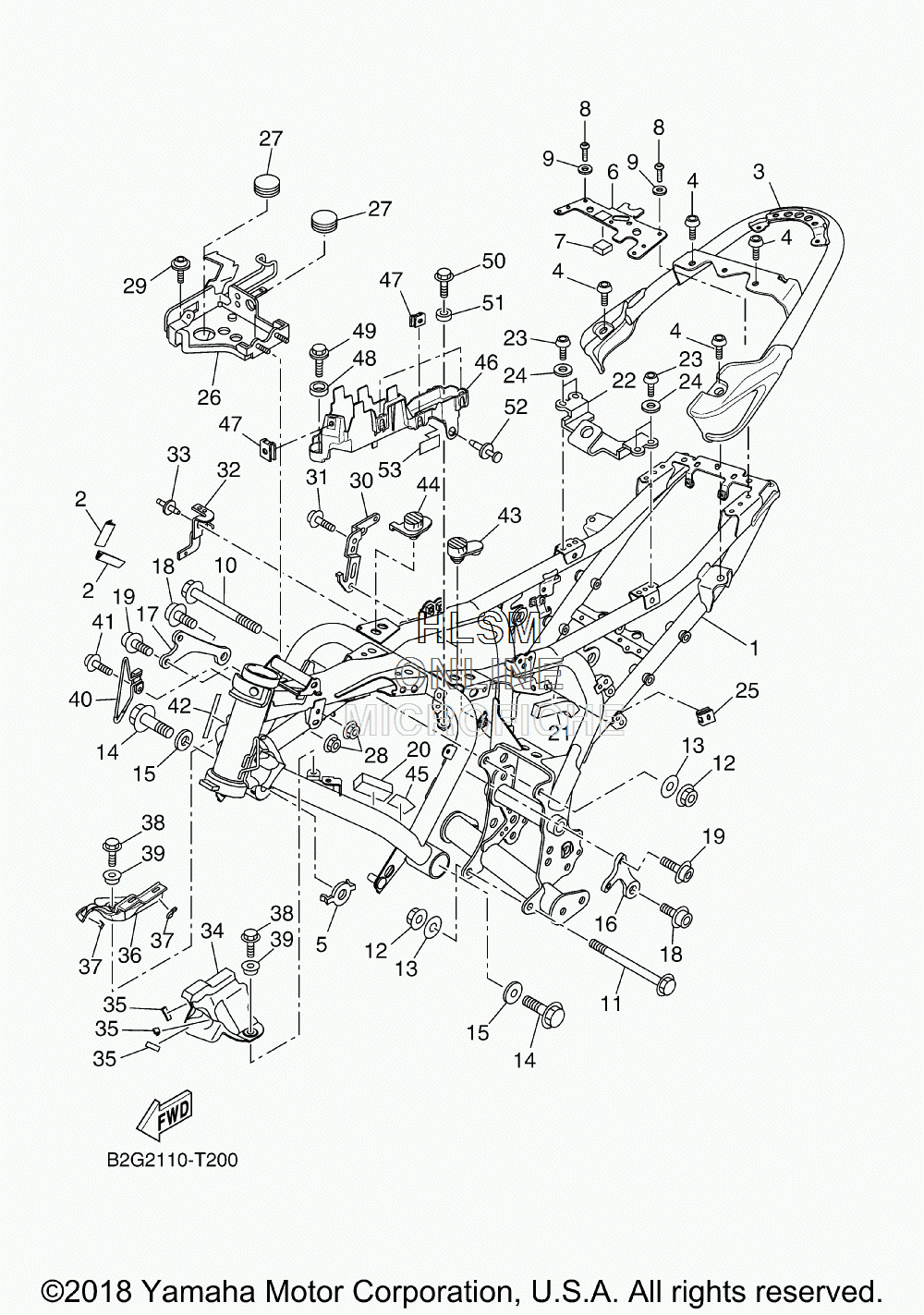

FRAME для Yamaha XSR 700 - 2018 года выпуска
-
№АртикулНазвание
-
1B2G-21110-10-00 FRAME COMP.FRAME COMP.
-
21FK-2171M-00-00 MOLE, SIDE COVER 2MOLE, SIDE COVER 2
-
3B34-F1190-00-00 REAR FRAME COMP.REAR FRAME COMP.
-
490110-08111-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
51WS-2191B-00-00 PLATE 1PLATE 1
-
6B34-F1349-10-00 BRACKET, SEATBRACKET, SEAT
-
73B4-24182-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
892017-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
990201-07081-00 WASHER, PLATEWASHER, PLATE
-
1090105-10219-00 BOLT, FLANGEBOLT, FLANGE
-
1190105-10349-00 BOLT, FLANGEBOLT, FLANGE
-
1290179-10024-00 NUTNUT
-
1390201-10035-00 WASHER, PLATEWASHER, PLATE
-
1490105-12092-00 BOLT, FLANGEBOLT, FLANGE
-
1590201-13020-00 WASHER, PLATEWASHER, PLATE
-
161WS-21315-00-00 STAY, ENGINE 1STAY, ENGINE 1
-
171WS-21316-00-00 STAY, ENGINE 2STAY, ENGINE 2
-
1890110-10044-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1990110-08111-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2090520-20004-00 DAMPER, PLATEDAMPER, PLATE
-
2190520-20003-00 DAMPER, PLATEDAMPER, PLATE
-
22B34-F1946-00-00 BRACKET, SEAT FITTINGBRACKET, SEAT FITTING
-
2392017-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2490201-07081-00 WASHER, PLATEWASHER, PLATE
-
2590183-05X04-00 NUT, SPRINGNUT, SPRING
-
26B34-21158-00-00 BRACKETBRACKET
-
2790480-30167-00 GROMMETGROMMET
-
2895702-06500-00 NUT, FLANGENUT, FLANGE
-
2990111-06122-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
30B2G-2161J-00-00 BRACKET 8BRACKET 8
-
3192017-06010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
32B34-2175U-00-00 BRACKET 2BRACKET 2
-
3390269-07077-00 RIVETRIVET
-
341WS-2117R-00-00 COVER 4COVER 4
-
351HX-27415-00-00 PLATE, DAMPERPLATE, DAMPER
-
361WS-2117T-00-00 COVER 5COVER 5
-
371HX-27415-00-00 PLATE, DAMPERPLATE, DAMPER
-
3895807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
3990387-062M9-00 COLLARCOLLAR
-
401XB-21288-00-00 GUIDE, CABLEGUIDE, CABLE
-
4195027-06010-00 BOLT, FLANGEBOLT, FLANGE
-
423HA-24141-00-00 PROTECTOR, FUEL TANKPROTECTOR, FUEL TANK
-
43B2G-23376-00-00 STOPPERSTOPPER
-
44B2G-23429-00-00 STOPPERSTOPPER
-
45B2G-2476U-00-00 PROTECTOR 1PROTECTOR 1
-
46B34-H1952-00-00 HOLDER, RELAYHOLDER, RELAY
-
4790183-05X04-00 NUT, SPRINGNUT, SPRING
-
4890387-1001B-00 COLLARCOLLAR
-
4990119-06209-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
5095822-06012-00 BOLT, FLANGEBOLT, FLANGE
-
5190387-06372-00 COLLARCOLLAR
-
5290269-06002-00 RIVETRIVET
-
535C7-84143-00-00 DAMPER, HEADLIGHT STAYDAMPER, HEADLIGHT STAY
