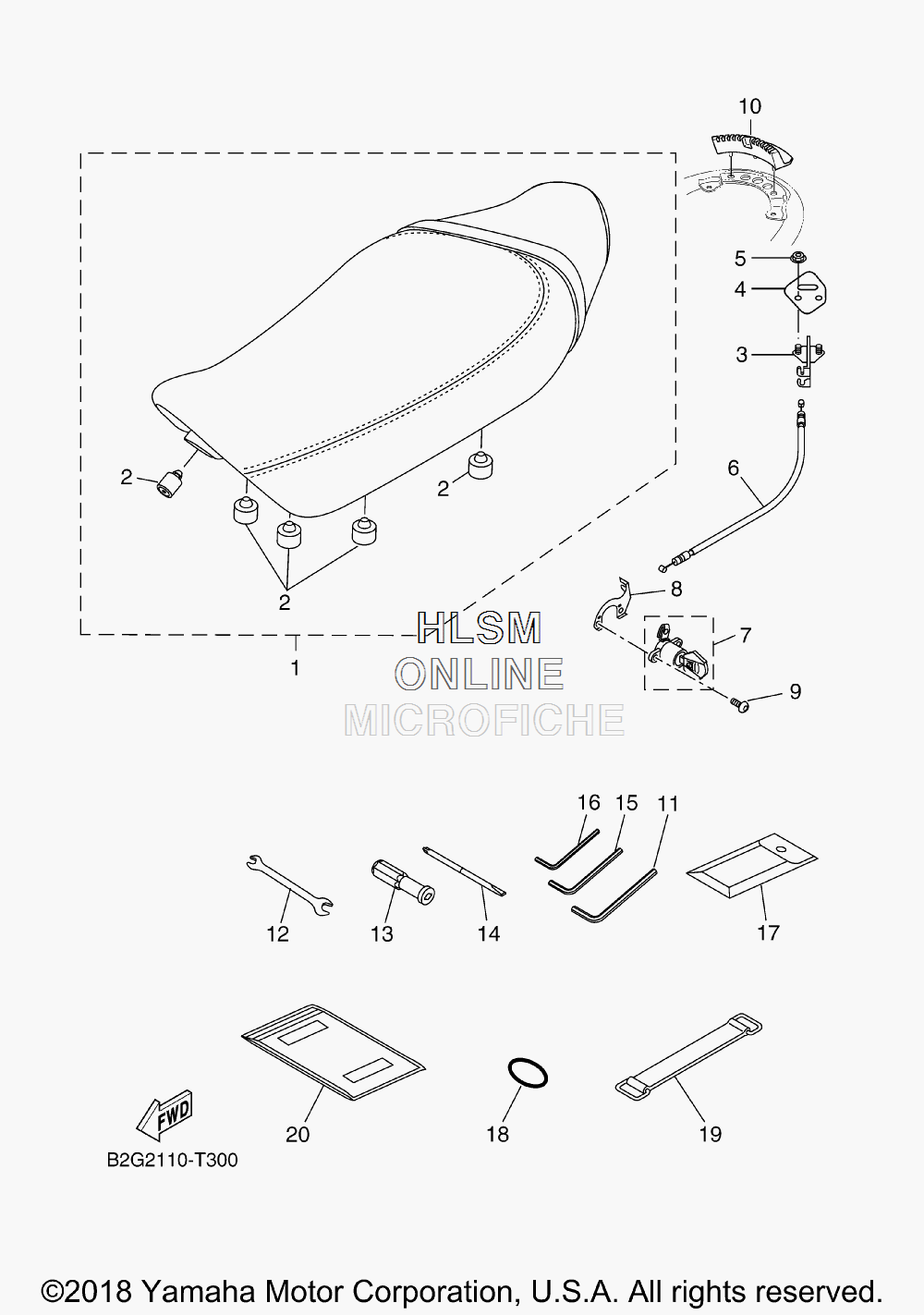

SEAT для Yamaha XSR 700 - 2018 года выпуска
-
№АртикулНазвание
-
1B34-F4730-21-00 DOUBLE SEAT ASSY (MNM3 - MAT GRAY)DOUBLE SEAT ASSY (MNM3 - MAT GRAY)
-
1B34-F4730-11-00 DOUBLE SEAT ASSY (DRMD - DULL RED)DOUBLE SEAT ASSY (DRMD - DULL RED)
-
25YK-F4741-00-00 ...PAD, SEAT...PAD, SEAT
-
31WS-24780-00-00 SEAT LOCK ASSYSEAT LOCK ASSY
-
4B34-F1978-00-00 PROTECTOR, FRAMEPROTECTOR, FRAME
-
54XV-8182A-00-00 NUTNUT
-
6B34-F478E-00-00 CABLE, SEAT LOCKCABLE, SEAT LOCK
-
72TV-W2470-00-00 ROTOR SETROTOR SET
-
823P-2117K-00-00 STAY, LOCKSTAY, LOCK
-
990149-06030-00 SCREWSCREW
-
10B2G-21779-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
1114B-28164-00-00 WRENCH, HEXAGON 8WRENCH, HEXAGON 8
-
12B2G-28122-00-00 SPANNER 8-10SPANNER 8-10
-
13B2G-28151-00-00 GRIP, DRIVERGRIP, DRIVER
-
14137-28152-00-00 DRIVERDRIVER
-
1523P-28164-00-00 WRENCH, HEXAGON 8WRENCH, HEXAGON 8
-
16B34-F816G-00-00 WRENCH HEXAGONAL 3WRENCH HEXAGONAL 3
-
17B2G-28100-00-00 TOOL KITTOOL KIT
-
1893210-40351-00 O-RINGO-RING
-
19120-82131-00-00 BAND, BATTERYBAND, BATTERY
-
204KG-28186-10-00 POUCHPOUCH
