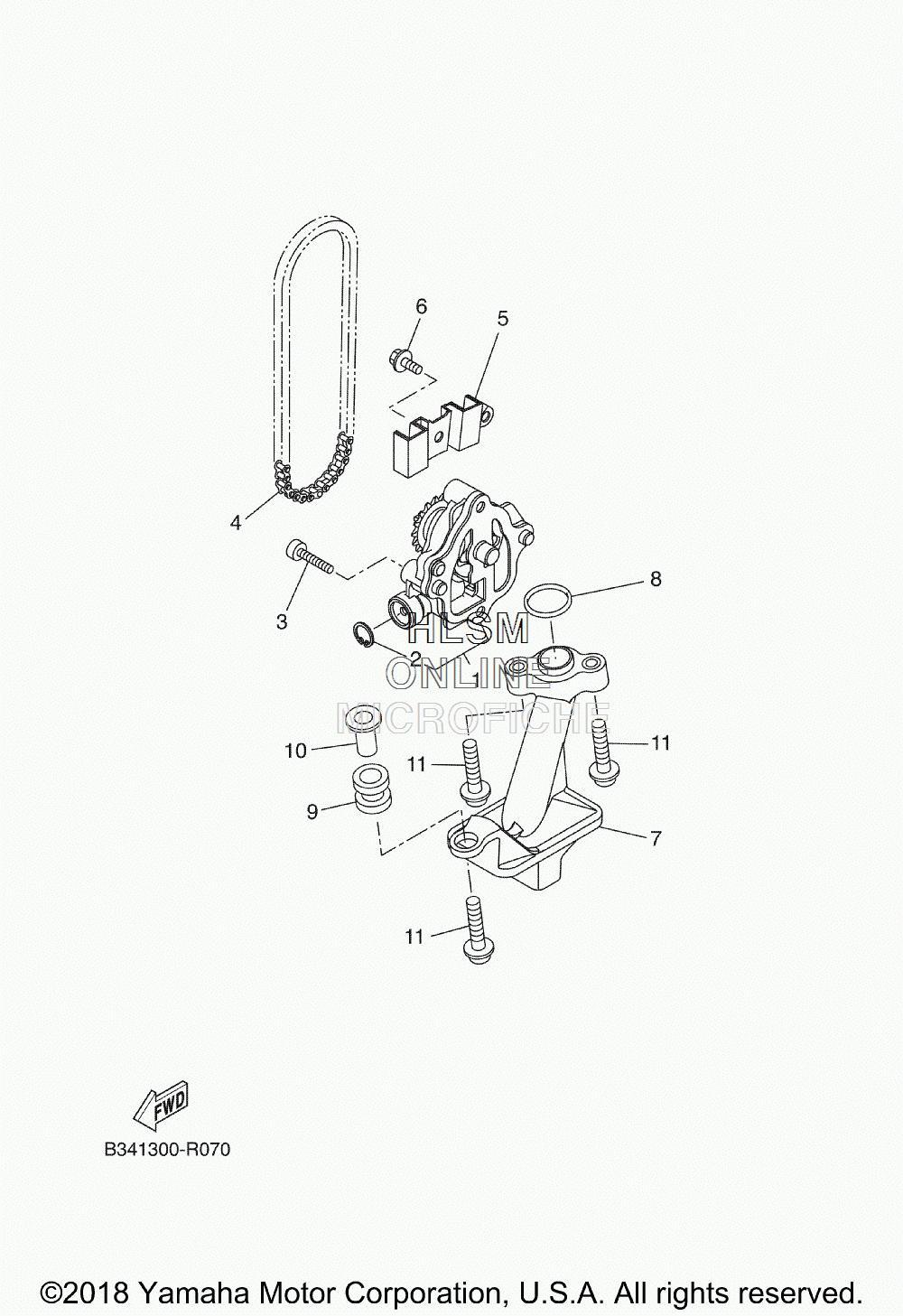

OIL PUMP для Yamaha XSR 700 - 2018 года выпуска
-
№АртикулНазвание
-
11WS-13300-00-00 OIL PUMP ASSYOIL PUMP ASSY
-
299009-15500-00 ...CIRCLIP...CIRCLIP
-
395812-06040-00 BOLT, FLANGEBOLT, FLANGE
-
494581-79060-00 CHAIN (DID25H-66L)CHAIN (DID25H-66L)
-
51WS-13898-00-00 HOLDERHOLDER
-
690110-06168-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
71WS-13410-00-00 STRAINER HOUSING ASSYSTRAINER HOUSING ASSY
-
893210-207A0-00 O-RINGO-RING
-
990480-13010-00 GROMMETGROMMET
-
105VY-13117-10-00 COLLAR, DISTANCECOLLAR, DISTANCE
-
1190110-06173-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
