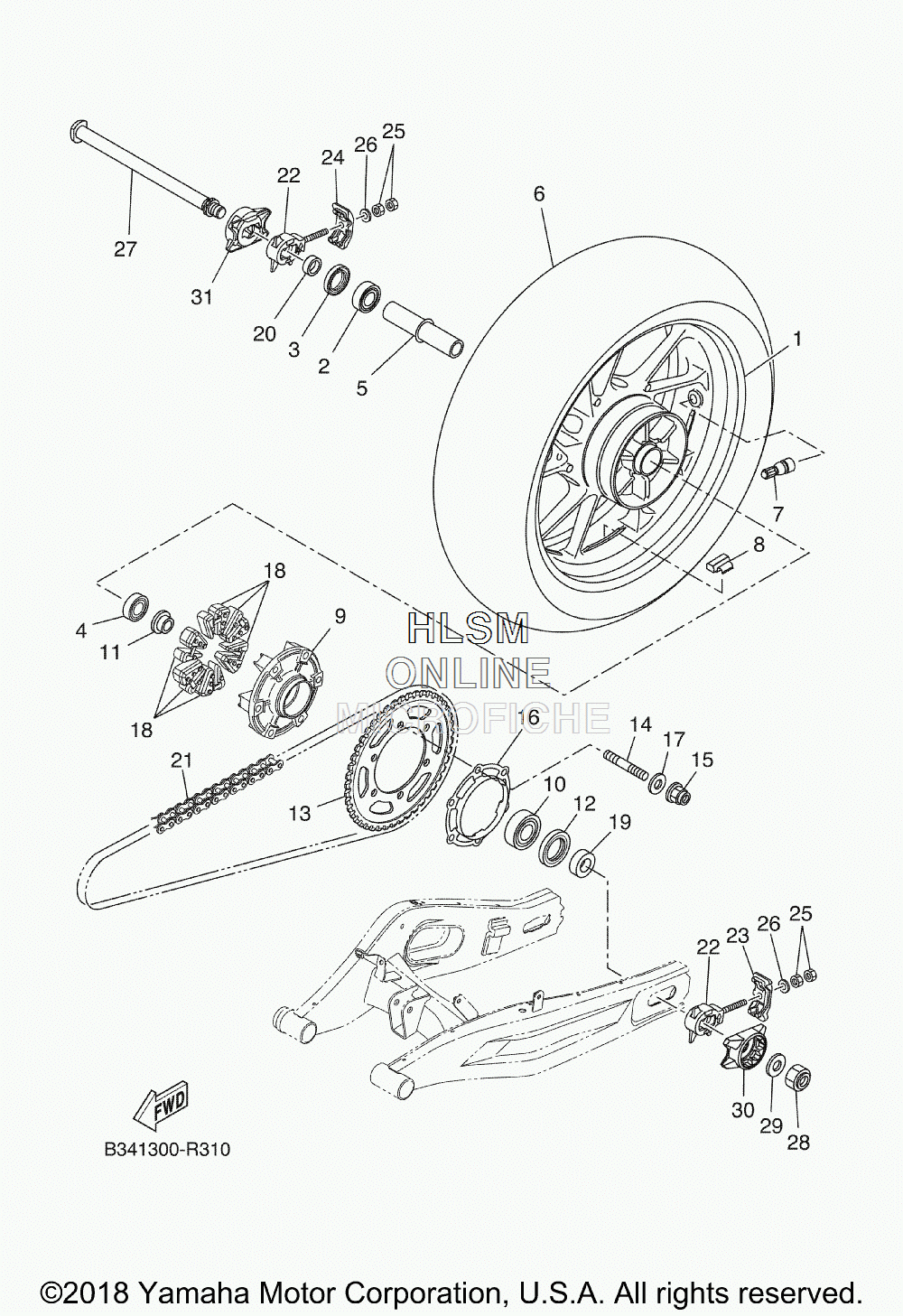

WHEEL - REAR для Yamaha XSR 700 - 2018 года выпуска
-
№АртикулНазвание
-
12DR-25338-00-98 CAST WHEEL, REAR (LGB - GLOSS BLACK)CAST WHEEL, REAR (LGB - GLOSS BLACK)
-
293306-20480-00 BEARINGBEARING
-
393102-28022-00 OIL SEALOIL SEAL
-
493306-00416-00 BEARINGBEARING
-
52PP-25317-00-00 SPACER, BEARINGSPACER, BEARING
-
793900-00030-00 VALVE, RIM (TR412)VALVE, RIM (TR412)
-
85MT-25398-10-00 BALANCER, WHEEL (20G)BALANCER, WHEEL (20G)
-
85MT-25398-20-00 BALANCER, WHEEL (30G)BALANCER, WHEEL (30G)
-
85MT-25398-00-00 BALANCER, WHEEL (10G)BALANCER, WHEEL (10G)
-
95JJ-25366-00-00 CLUTCH, HUBCLUTCH, HUB
-
1093306-205B5-00 BEARINGBEARING
-
111RC-25383-00-00 COLLAR, WHEELCOLLAR, WHEEL
-
1293106-40013-00 OIL SEALOIL SEAL
-
131WS-25443-00-00 SPROCKET, DRIVEN (43T)SPROCKET, DRIVEN (43T)
-
1490116-10048-00 BOLT, STUDBOLT, STUD
-
1590185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
161WS-2537W-00-00 BRACKET 1BRACKET 1
-
1790201-10045-00 WASHER, PLATEWASHER, PLATE
-
185SL-25364-00-00 DAMPERDAMPER
-
1990387-20036-00 COLLARCOLLAR
-
2090387-20035-00 COLLARCOLLAR
-
2194582-40108-00 CHAIN (DID 525VZ-108LE)CHAIN (DID 525VZ-108LE)
-
221WS-25388-00-00 PULLER, CHAIN 1PULLER, CHAIN 1
-
23B34-22174-00-00 END 1END 1
-
24B34-22175-00-00 END 1END 1
-
2595302-08600-00 NUT, HEXAGONNUT, HEXAGON
-
2692902-08600-00 WASHER, PLATEWASHER, PLATE
-
274FN-22141-00-00 SHAFT, PIVOTSHAFT, PIVOT
-
2890185-18009-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2990201-18021-00 WASHER, PLATEWASHER, PLATE
-
301WS-2538D-10-00 COVER, REAR AXLE 1COVER, REAR AXLE 1
-
311WS-2538N-10-00 COVER, REAR AXLE 2COVER, REAR AXLE 2
