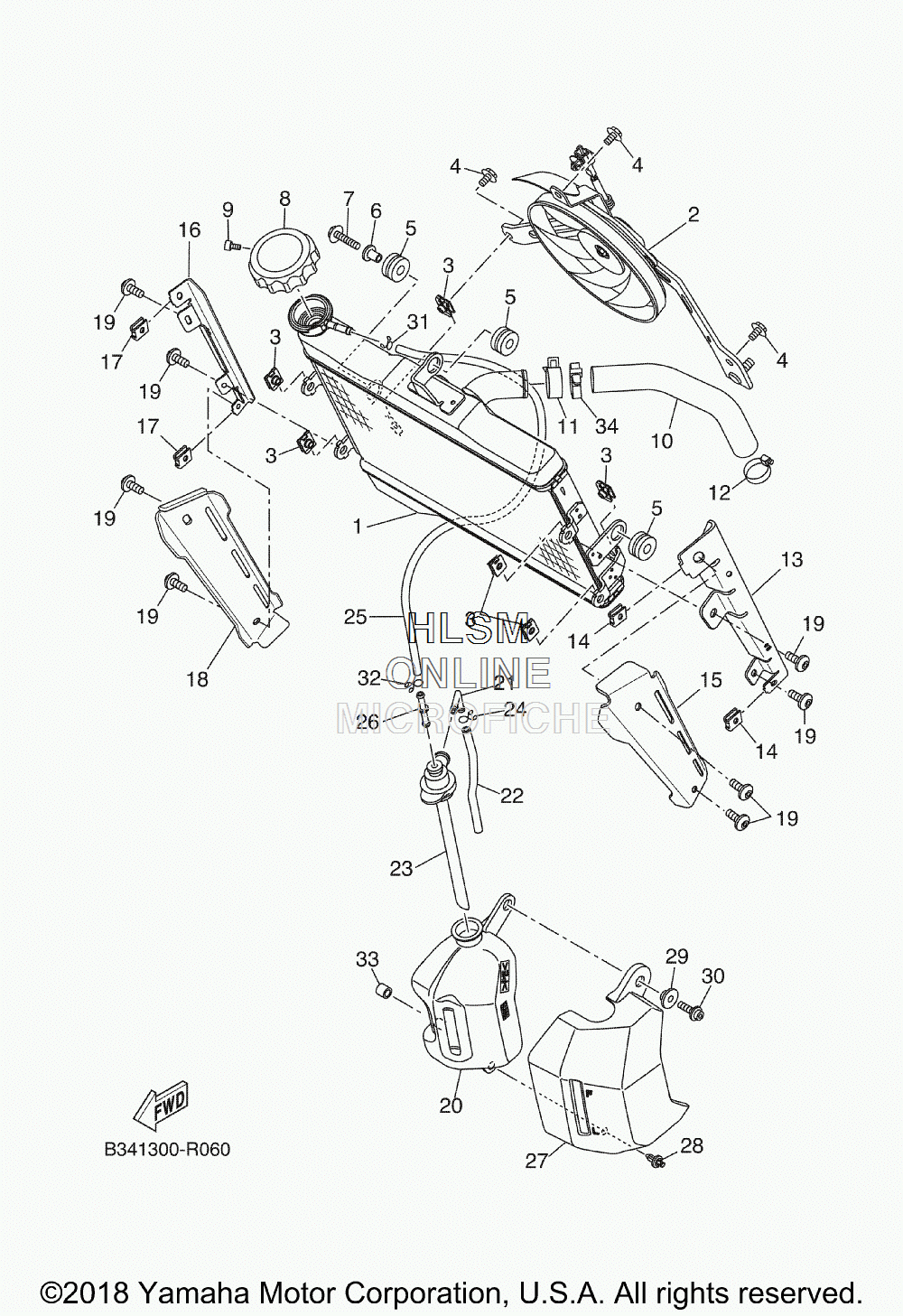

RADIATOR для Yamaha XSR 700 - 2018 года выпуска
-
№АртикулНазвание
-
11WS-12461-00-00 RADIATOR COMPRADIATOR COMP
-
21WS-12405-00-00 BLOWER ASSYBLOWER ASSY
-
31WS-12671-00-00 NUT 1NUT 1
-
45GJ-12675-00-00 BOLT, BLOWER HOLDINGBOLT, BLOWER HOLDING
-
590480-15363-00 GROMMETGROMMET
-
690387-06311-00 COLLARCOLLAR
-
790111-06156-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
83D7-12462-00-00 CAP, RADIATORCAP, RADIATOR
-
991317-03006-00 BOLT, HEX. SOCKET HEADBOLT, HEX. SOCKET HEAD
-
101WS-12578-00-00 HOSE 3HOSE 3
-
1190467-290A0-00 CLIPCLIP
-
1290450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
13B34-E2464-00-00 STAY, RADIATORSTAY, RADIATOR
-
1490183-06X00-00 NUT, SPRINGNUT, SPRING
-
15B34-E246F-20-00 COVER 3 (DRMD - DULL RED)COVER 3 (DRMD - DULL RED)
-
15B34-E246F-10-00 COVER 3 (MNM3 - MAT GRAY)COVER 3 (MNM3 - MAT GRAY)
-
16B34-E2464-10-00 STAY, RADIATORSTAY, RADIATOR
-
1790183-06X00-00 NUT, SPRINGNUT, SPRING
-
18B34-E246G-20-00 COVER 4 (DRMD - DULL RED)COVER 4 (DRMD - DULL RED)
-
18B34-E246G-10-00 COVER 4 (MNM3 - MAT GRAY)COVER 4 (MNM3 - MAT GRAY)
-
1990111-06038-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
201WS-21871-00-00 TANK, RECOVERYTANK, RECOVERY
-
2126H-21828-00-00 ELBOWELBOW
-
2290445-08020-00 HOSEHOSE
-
233P6-21875-00-00 CAPCAP
-
2490467-08075-00 CLIPCLIP
-
251WS-21816-00-00 PIPE 1PIPE 1
-
264XY-14568-00-00 JOINTJOINT
-
271WS-2172W-00-00 COVERCOVER
-
2890269-06008-00 RIVETRIVET
-
2990387-06024-00 COLLARCOLLAR
-
3090110-06163-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3190467-08075-00 CLIPCLIP
-
3290467-08003-00 CLIPCLIP
-
3390445-10064-00 HOSEHOSE
-
3490464-07M40-00 CLAMPCLAMP
