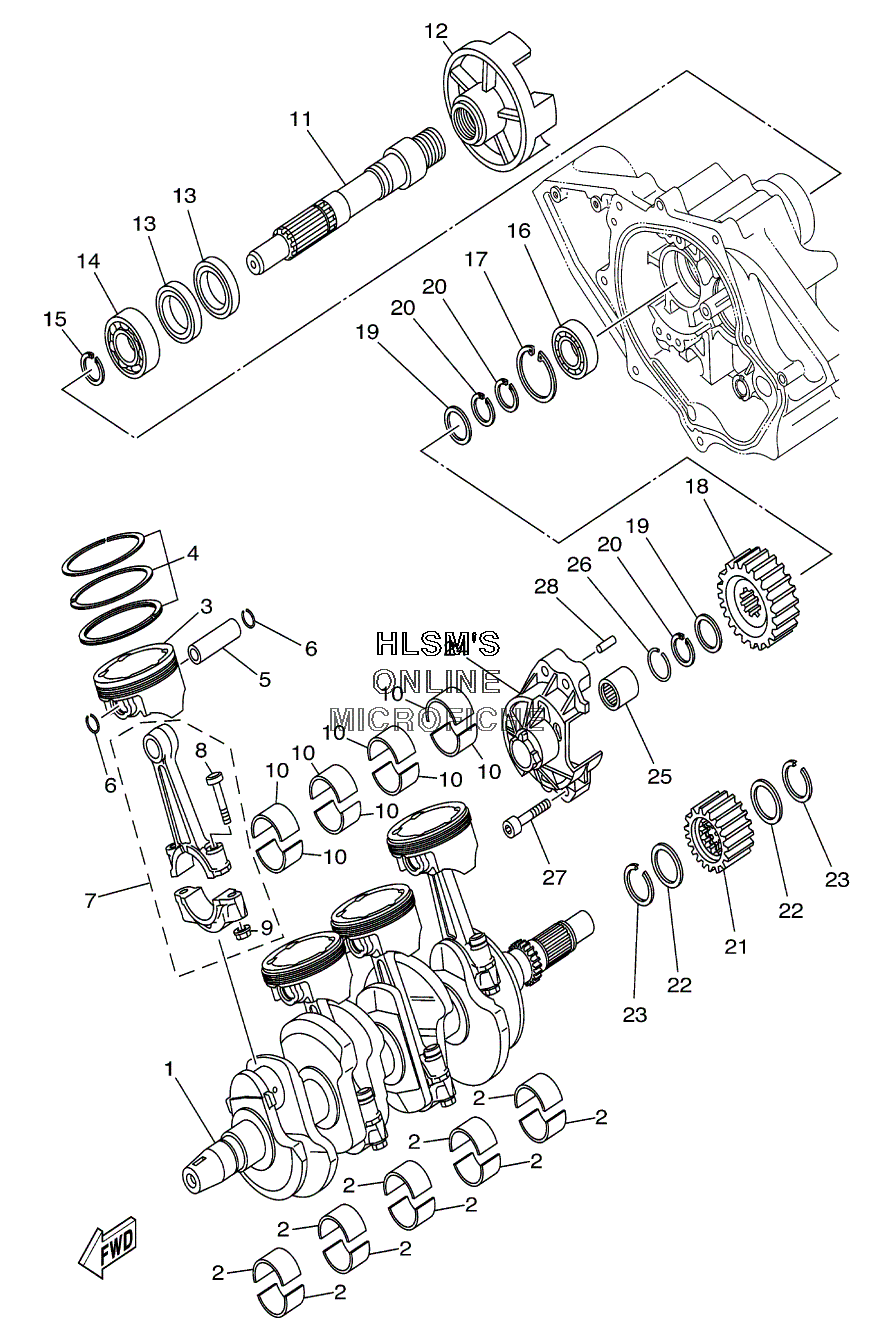

CRANKSHAFT W/ PISTON для Yamaha FX 140 A - 2002 года выпуска
-
№АртикулНазвание
-
160E-11411-01-00 CRANKSHAFTCRANKSHAFT
-
260E-11416-00-00 PLANE BEARING, CRANKSHAFT (PURPLE)*PLANE BEARING, CRANKSHAFT (PURPLE)*
-
260E-11416-10-00 PLANE BEARING, CRANKSHAFT (WHITE)*PLANE BEARING, CRANKSHAFT (WHITE)*
-
260E-11416-40-00 PLANE BEARING, CRANKSHAFT (BROWN)*PLANE BEARING, CRANKSHAFT (BROWN)*
-
260E-11416-30-00 PLANE BEARING, CRANKSHAFT (BLACK)*PLANE BEARING, CRANKSHAFT (BLACK)*
-
260E-11416-20-00 PLANE BEARING, CRANKSHAFT (BLUE)*PLANE BEARING, CRANKSHAFT (BLUE)*
-
360E-11631-00-B0 PISTON (STD)PISTON (STD)
-
360E-11636-00-00 PISTON (0.50MM O/S) (OPT)PISTON (0.50MM O/S) (OPT)
-
44XV-11603-00-00 PISTON RING SET (STD)PISTON RING SET (STD)
-
460E-11605-00-00 PISTON RING SET (0.50MM O/S) (OPT)PISTON RING SET (0.50MM O/S) (OPT)
-
54XV-11633-00-00 PIN, PISTONPIN, PISTON
-
690468-12069-00 CLIPCLIP
-
75PW-11650-00-00 CONNECTING ROD ASSYCONNECTING ROD ASSY
-
85JW-11654-10-00 ....BOLT, CONNECTING ROD....BOLT, CONNECTING ROD
-
990179-08327-00 ....NUT....NUT
-
1060E-11656-00-00 PLANE BEARING, CONNECTING ROD (YELLOW)*PLANE BEARING, CONNECTING ROD (YELLOW)*
-
1060E-11656-10-00 PLANE BEARING, CONNECTING ROD (GREEN)*PLANE BEARING, CONNECTING ROD (GREEN)*
-
1060E-11656-20-00 PLANE BEARING, CONNECTING ROD (BROWN)*PLANE BEARING, CONNECTING ROD (BROWN)*
-
1060E-11656-30-00 PLANE BEARING, CONNECTING ROD (BLACK)*PLANE BEARING, CONNECTING ROD (BLACK)*
-
1160E-17572-00-00 SHAFT, TRANSFERSHAFT, TRANSFER
-
1266E-45813-10-94 FLANGE, COUPLINGFLANGE, COUPLING
-
1393101-35004-00 .OIL SEAL.OIL SEAL
-
1493306-205U0-00 BEARINGBEARING
-
1593440-25084-00 CIRCLIPCIRCLIP
-
1693306-00501-00 BEARING (B6005)BEARING (B6005)
-
1799009-47500-00 CIRCLIPCIRCLIP
-
1860E-17588-00-00 GEAR, TRANSFER DRIVENGEAR, TRANSFER DRIVEN
-
1990209-21011-00 WASHERWASHER
-
2093440-25084-00 CIRCLIPCIRCLIP
-
2160E-17586-00-00 GEAR, TRANSFER DRIVEGEAR, TRANSFER DRIVE
-
2290209-25008-00 WASHERWASHER
-
2393440-28062-00 CIRCLIPCIRCLIP
-
2460E-17521-00-00 HOUSING, BEARINGHOUSING, BEARING
-
2593311-32079-00 BALL BEARINGBALL BEARING
-
2693450-30150-00 CIRCLIPCIRCLIP
-
2791318-08040-00 BOLTBOLT
-
2893606-12019-00 PIN, DOWELPIN, DOWEL
