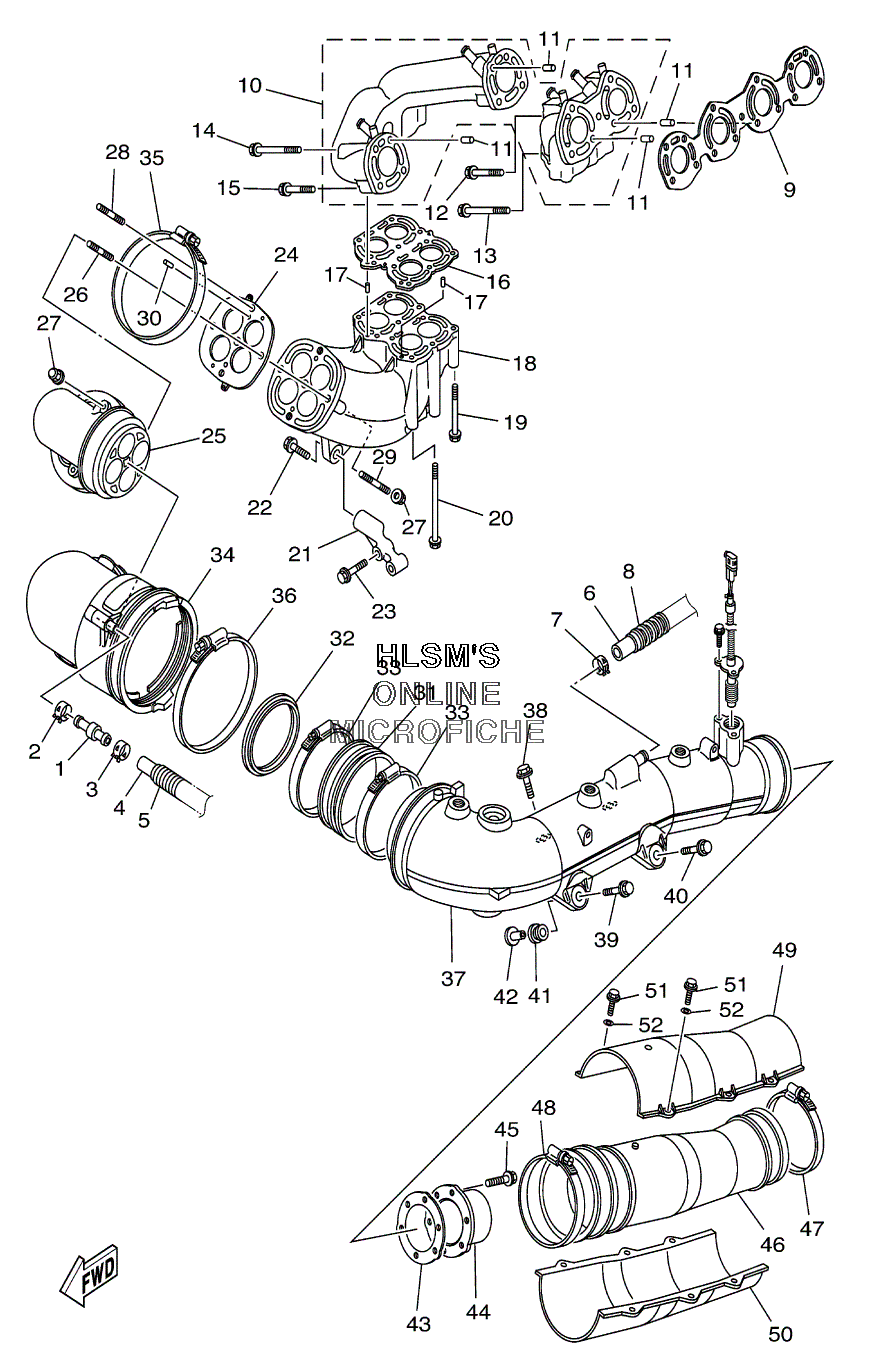

EXHAUST SYSTEM для Yamaha FX 140 A - 2002 года выпуска
-
№АртикулНазвание
-
160E-12594-00-00 JOINT, HOSE 4JOINT, HOSE 4
-
290467-120A0-00 CLIPCLIP
-
390467-130A0-00 CLIPCLIP
-
490445-14M06-00 HOSE (L630)HOSE (L630)
-
590446-20M65-00 HOSEHOSE
-
690445-20002-00 HOSEHOSE
-
790467-200A0-00 CLIPCLIP
-
890447-22002-00 HOSE, WITH SPRINGHOSE, WITH SPRING
-
960E-14613-00-00 .GASKET, EXHAUST PIPE.GASKET, EXHAUST PIPE
-
1060E-14610-00-94 EXHAUST PIPE ASSY 1EXHAUST PIPE ASSY 1
-
1193608-16M16-00 PIN, DOWELPIN, DOWEL
-
1290119-08029-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1390119-08034-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1490119-08029-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1590119-08M62-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1660E-14739-00-00 .GASKET, MUFFLER DAMPER 1.GASKET, MUFFLER DAMPER 1
-
1793606-12019-00 PIN, DOWELPIN, DOWEL
-
1860E-14631-00-94 PIPE, EXHAUST 3PIPE, EXHAUST 3
-
1990119-08036-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2090119-08031-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2160E-14771-00-94 STAY, MUFFLER 1STAY, MUFFLER 1
-
2290119-10013-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2390119-08043-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2460E-14749-00-00 .GASKET, MUFFLER DAMPER 2.GASKET, MUFFLER DAMPER 2
-
2560E-14712-00-94 RING, JOINTRING, JOINT
-
2690116-10016-00 BOLT, STUDBOLT, STUD
-
2790179-10M35-00 NUTNUT
-
2890116-10017-00 BOLT, STUDBOLT, STUD
-
2990116-10018-00 BOLT, STUDBOLT, STUD
-
3093606-12019-00 PIN, DOWELPIN, DOWEL
-
3160E-14625-00-00 JOINT, EXHAUST 2JOINT, EXHAUST 2
-
3260E-14642-00-00 .SEAL, EXHAUST.SEAL, EXHAUST
-
3390450-99M06-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
3460E-14615-00-00 JOINT, EXHAUST 1JOINT, EXHAUST 1
-
3590450-99M16-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
3690450-99M18-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
3760E-14721-00-94 MUFFLER 2MUFFLER 2
-
3890119-10013-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3990119-10011-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
4090119-10017-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
4190480-21M63-00 GROMMETGROMMET
-
4290387-11002-00 COLLARCOLLAR
-
4360E-14623-00-00 .GASKET, EXHAUST PIPE.GASKET, EXHAUST PIPE
-
4460E-14784-00-94 PIPE, TAILPIPE, TAIL
-
4595023-06016-00 BOLTBOLT
-
4660E-14752-00-00 PIPE, OUTLETPIPE, OUTLET
-
4790460-90M11-00 CLAMP, HOSECLAMP, HOSE
-
4890450-99M06-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
4960E-14718-00-94 PROTECTOR, MUFFLER 1PROTECTOR, MUFFLER 1
-
5060E-14728-00-94 PROTECTOR, MUFFLER 2PROTECTOR, MUFFLER 2
-
5197013-06025-00 BOLTBOLT
-
5292903-06600-00 WASHER, PLATEWASHER, PLATE
