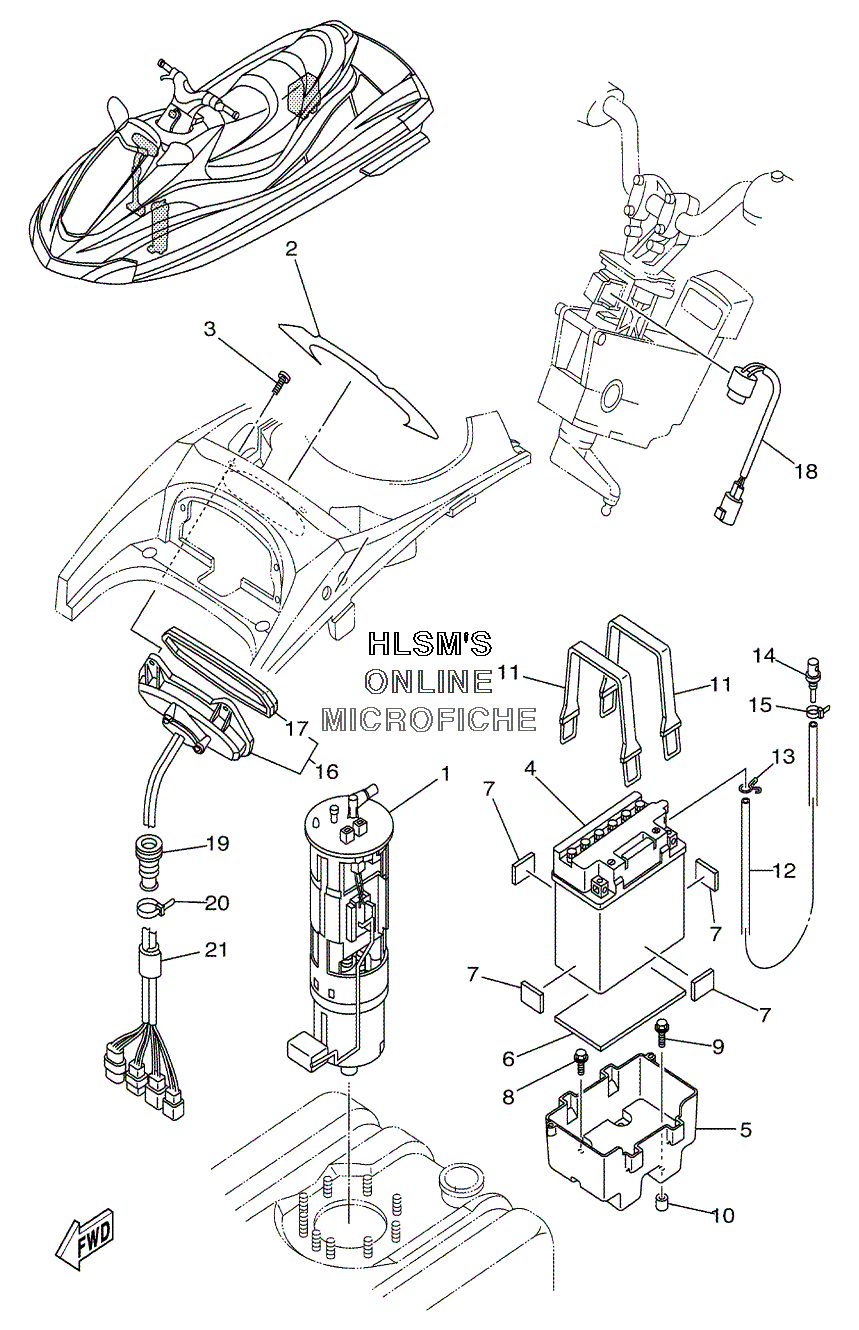

FUEL PUMP для Yamaha FX 140 A - 2002 года выпуска
-
№АртикулНазвание
-
160E-13907-00-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
2F1B-64174-00-00 GRAPHIC BGRAPHIC B
-
390111-05004-00 BOLTBOLT
-
4EU0-82110-09-00 BATTERY ASSYBATTERY ASSY
-
5GP7-U8211-00-00 CASE, BATTERYCASE, BATTERY
-
6F0X-U8221-00-00 PAD, BATTERYPAD, BATTERY
-
7EU0-U8221-30-00 PAD, BATTERY 2PAD, BATTERY 2
-
890119-06854-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
990119-06832-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
10F1B-6821G-00-00 PLATE, BATTERYPLATE, BATTERY
-
11EU0-U821D-00-00 BAND,BATTERY 2BAND,BATTERY 2
-
12F0D-U785G-10-00 HOSE, AIR VENTHOSE, AIR VENT
-
1390467-089U1-00 CLIPCLIP
-
14GJ3-6215F-00-00 NIPPLENIPPLE
-
1590465-11829-00 CLAMPCLAMP
-
16F1B-6820A-00-00 METER ASSYMETER ASSY
-
17F1B-6821K-00-00 ....PANEL, METER....PANEL, METER
-
18F0D-U8341-00-00 BUZZERBUZZER
-
19GU2-6822E-01-00 GROMMETGROMMET
-
2090601-200U1-00 BANDBAND
-
21GJ1-U7578-11-00 PACKING, HOSE 2PACKING, HOSE 2
