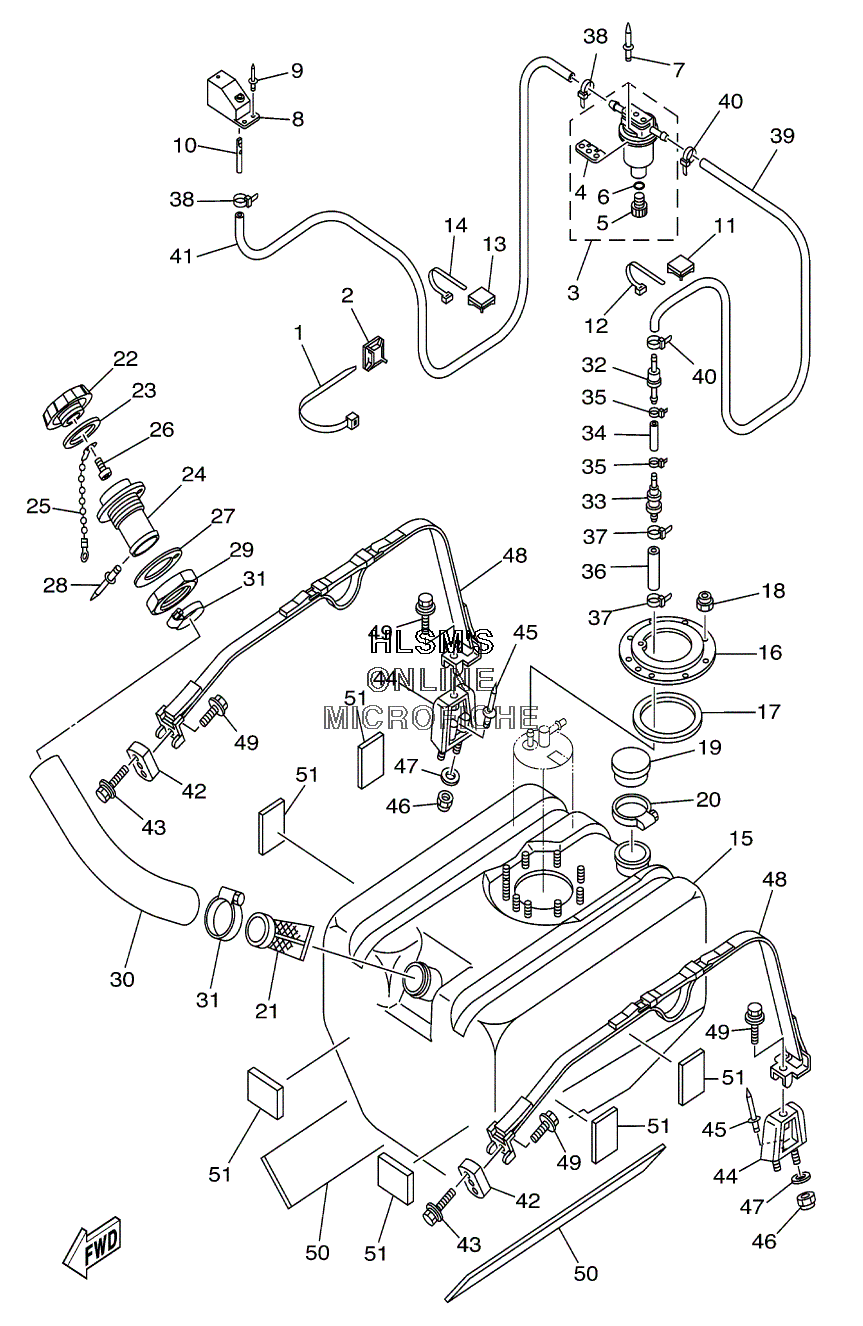

FUEL TANK для Yamaha FX 140 A - 2002 года выпуска
-
№АртикулНазвание
-
190464-99804-00 CLAMPCLAMP
-
290600-900U6-00 BASE, CLAMPBASE, CLAMP
-
3EW2-62140-00-00 FILTER, VENT ASSYFILTER, VENT ASSY
-
4EW2-62142-00-00 ....PLATE, FILTER....PLATE, FILTER
-
570R-24543-00-00 ....PLUG, DRAIN....PLUG, DRAIN
-
670R-24489-00-00 ....O-RING....O-RING
-
790267-489U2-00 RIVET, BLINDRIVET, BLIND
-
8GP7-62159-01-00 SOCKET, VENTILATIONSOCKET, VENTILATION
-
990267-489U6-00 RIVET, BLINDRIVET, BLIND
-
10EW2-62149-00-00 PIPE, VENTILATION 1PIPE, VENTILATION 1
-
1190600-900U6-00 BASE, CLAMPBASE, CLAMP
-
1290464-40825-00 CLAMPCLAMP
-
1390600-900U6-00 BASE, CLAMPBASE, CLAMP
-
1490464-40825-00 CLAMPCLAMP
-
15F1B-U7711-01-00 TANK, FUELTANK, FUEL
-
16F1B-U7773-00-00 RINGRING
-
17F1B-67747-00-00 PACKING, SEALPACKING, SEAL
-
189572R-06300-00 NUT, FLANGENUT, FLANGE
-
19FN8-6771K-00-00 COVERCOVER
-
2090601-162U5-00 BAND, HOSE 62BAND, HOSE 62
-
21F1B-6775C-00-00 FILTERFILTER
-
22GP7-U7831-01-00 CAP, FUEL FILLER (PURE WHITE)CAP, FUEL FILLER (PURE WHITE)
-
23GP7-U7832-01-00 PACKINGPACKING
-
24GP7-U7833-00-00 SOCKETSOCKET
-
25GP7-U7835-00-00 CHAIN BALLCHAIN BALL
-
2690169-049U1-00 TAPPING SCREWTAPPING SCREW
-
27GP7-U7834-00-00 PACKING FUEL FILLERPACKING FUEL FILLER
-
2890267-329UR-00 RIVET, BLINDRIVET, BLIND
-
29GP7-U783F-00-00 NUT, FUEL FILLERNUT, FUEL FILLER
-
30F1B-U7844-00-00 HOSEHOSE
-
3190601-155U4-00 BAND, HOSE 55BAND, HOSE 55
-
32F1B-67767-00-00 CHECK VALVECHECK VALVE
-
33FJ0-67766-00-00 ROLL OVER VALVEROLL OVER VALVE
-
3490699-50004-00 HOSEHOSE
-
3590465-11M10-00 CLAMPCLAMP
-
36GP7-U785H-00-00 HOSE, AIR VENT 3HOSE, AIR VENT 3
-
3790465-11829-00 CLAMPCLAMP
-
3890465-11829-00 CLAMPCLAMP
-
39F0D-U785G-10-00 HOSE, AIR VENTHOSE, AIR VENT
-
4090465-11829-00 CLAMPCLAMP
-
41F0D-U7856-10-00 HOSE, AIR VENT 3HOSE, AIR VENT 3
-
42F1B-U2873-00-00 NUT, SPECIALNUT, SPECIAL
-
4390119-08814-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
44F1B-6774J-00-00 BRKT, BANDBRKT, BAND
-
4590267-489U2-00 RIVET, BLINDRIVET, BLIND
-
469572R-06300-00 NUT, FLANGENUT, FLANGE
-
479299R-06200-00 WASHERWASHER
-
48F1B-67743-01-00 BELT, TANK 1BELT, TANK 1
-
4990119-08814-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
50F1B-U759B-00-00 MAT 1MAT 1
-
51F1B-U759C-00-00 MAT 2MAT 2
