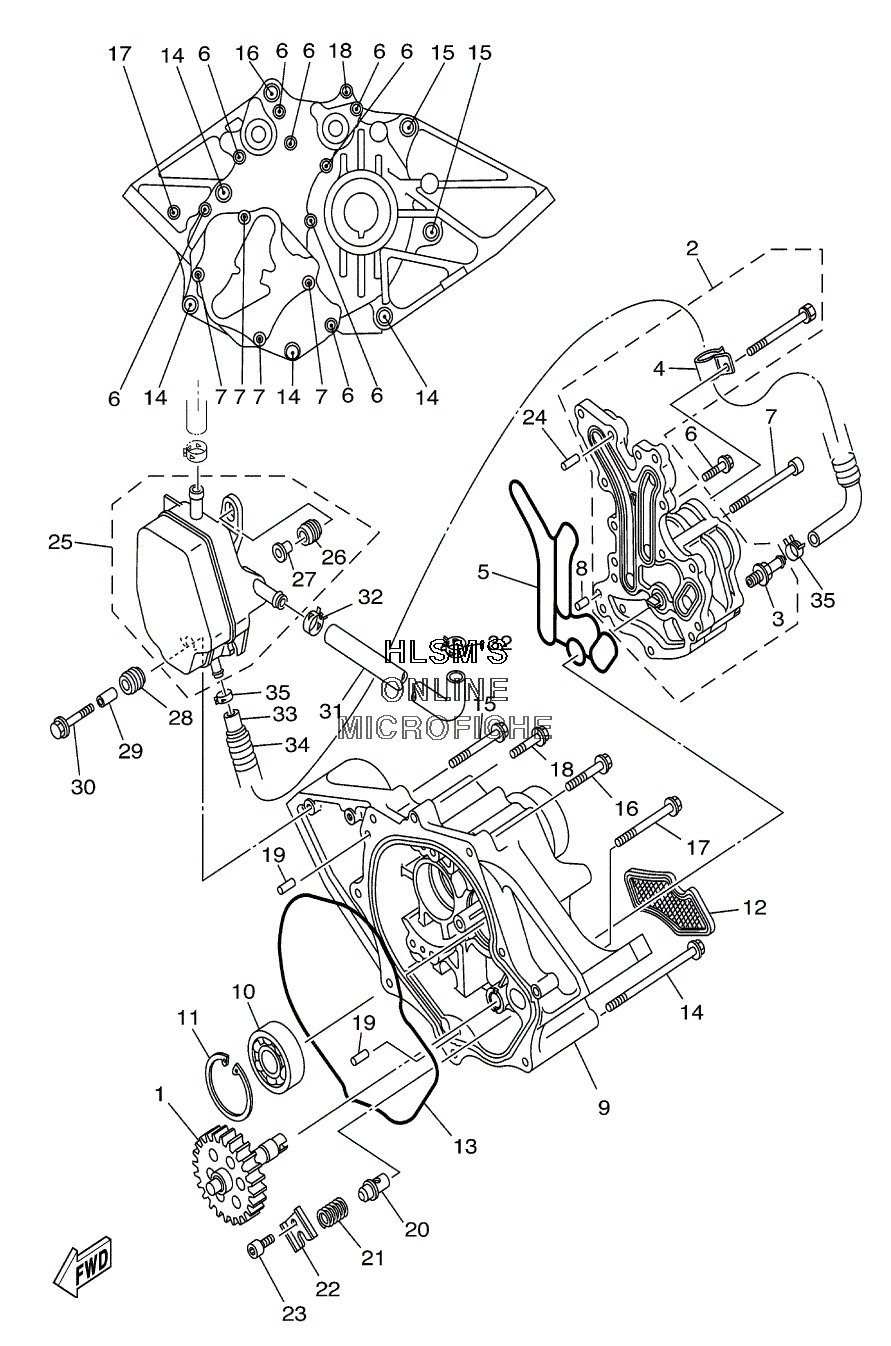

OIL PUMP для Yamaha FX 140 A - 2002 года выпуска
-
№АртикулНазвание
-
160E-13360-00-00 DRIVEN GEAR ASSYDRIVEN GEAR ASSY
-
260E-13300-00-00 OIL PUMP ASSYOIL PUMP ASSY
-
360E-13185-00-00 ....BOLT, BREATHER....BOLT, BREATHER
-
490462-08019-00 ....CLAMP....CLAMP
-
560E-13563-00-00 GASKETGASKET
-
697513-06525-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
791314-06090-00 BOLTBOLT
-
893606-12019-00 PIN, DOWELPIN, DOWEL
-
960E-13327-00-94 COVER, PUMP GEARCOVER, PUMP GEAR
-
1093306-30441-00 BEARINGBEARING
-
1199009-52500-00 CIRCLIPCIRCLIP
-
1260E-13411-00-00 STRAINER, OILSTRAINER, OIL
-
1393211-95001-00 .O-RING.O-RING
-
1490119-08045-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1590119-08034-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1690119-08043-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1797513-06555-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1897513-06535-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1993608-16M16-00 PIN, DOWELPIN, DOWEL
-
2060E-13483-00-00 PLUNGER, RELIEFPLUNGER, RELIEF
-
214WM-13484-00-00 SPRING, RELIEFSPRING, RELIEF
-
2290214-06029-00 WASHER, CLAWWASHER, CLAW
-
2391317-06016-00 BOLTBOLT
-
2493606-25M00-00 PIN, DOWELPIN, DOWEL
-
2560E-11164-00-00 SEPERATOR, OILSEPERATOR, OIL
-
266A0-82317-00-00 ...DAMPER, IGNITION COIL...DAMPER, IGNITION COIL
-
27624-42542-00-00 ...PIPE...PIPE
-
286A0-82317-00-00 DAMPER, IGNITION COILDAMPER, IGNITION COIL
-
29624-42542-00-00 PIPEPIPE
-
3090119-06M65-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3160E-11126-00-00 PIPE, BREATHER 3PIPE, BREATHER 3
-
3290467-170A0-00 CLIPCLIP
-
3360E-11125-01-00 PIPE, BREATHER 4PIPE, BREATHER 4
-
3490446-17M75-00 HOSEHOSE
-
3590467-110A1-00 CLIPCLIP
