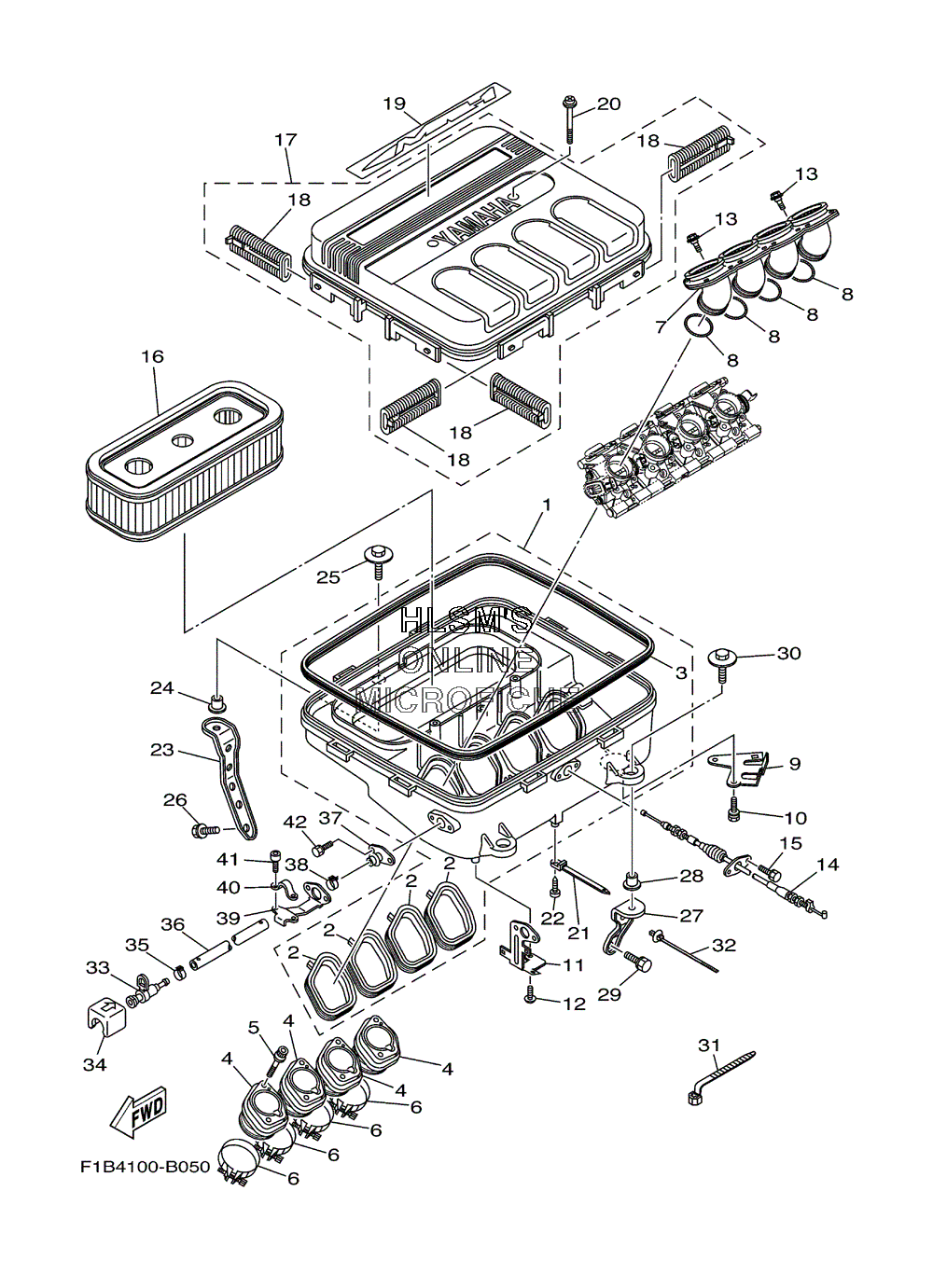

AIR SILENCER W/ INTAKE для Yamaha FX140 WAVERUNNER 3-PERSON - 2003 года выпуска
-
№АртикулНазвание
-
160E-14410-00-00 AIR FILTER ASSY.AIR FILTER ASSY.
-
260E-14239-00-00 ...SEAL...SEAL
-
360E-14457-00-00 ...SEAL...SEAL
-
460E-13795-00-00 JOINNT, THROTTLE BODY 1JOINNT, THROTTLE BODY 1
-
590110-08020-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
690450-57002-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
760E-1440A-01-00 RIBON, SUB ASSYRIBON, SUB ASSY
-
84XV-14275-00-00 SPRINGSPRING
-
960E-14869-00-00 BRACKET 3BRACKET 3
-
1097513-06516-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1160E-14867-00-00 BRACKETBRACKET
-
1290160-05003-00 SCREW, ROUND TAPPINGSCREW, ROUND TAPPING
-
1390109-06053-00 BOLTBOLT
-
1460E-26311-00-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
1597513-06514-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1660E-14451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
1760E-14420-00-00 AIR CLEANER ASSY 2AIR CLEANER ASSY 2
-
1866V-13898-00-00 ...HOLDER...HOLDER
-
1960E-2339E-20-00 GRAPHIC 1GRAPHIC 1
-
2090159-05006-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
2190465-12M53-00 CLAMPCLAMP
-
2290160-05003-00 SCREW, ROUND TAPPINGSCREW, ROUND TAPPING
-
2360E-14413-00-00 STAYSTAY
-
2460E-14449-00-00 COLLARCOLLAR
-
2590119-08050-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2690119-08032-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2760E-14414-00-00 STAY 2STAY 2
-
2860E-14449-00-00 COLLARCOLLAR
-
2990119-08050-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3090119-08032-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3190464-20005-00 CLAMPCLAMP
-
3290464-28002-00 CLAMPCLAMP
-
3360E-24300-00-00 FUEL PIPE JOINTFUEL PIPE JOINT
-
3460E-24474-00-00 COVERCOVER
-
3590450-17M17-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
3660E-14294-00-00 HOSEHOSE
-
3760E-24329-00-00 SEALSEAL
-
3890467-09120-00 CLIPCLIP
-
3960E-24364-00-00 STAYSTAY
-
4060E-24366-00-00 CLAMP, FUEL PIPE 1CLAMP, FUEL PIPE 1
-
4191380-04008-00 BOLTBOLT
-
4297513-06516-00 BOLT, WITH WASHERBOLT, WITH WASHER
