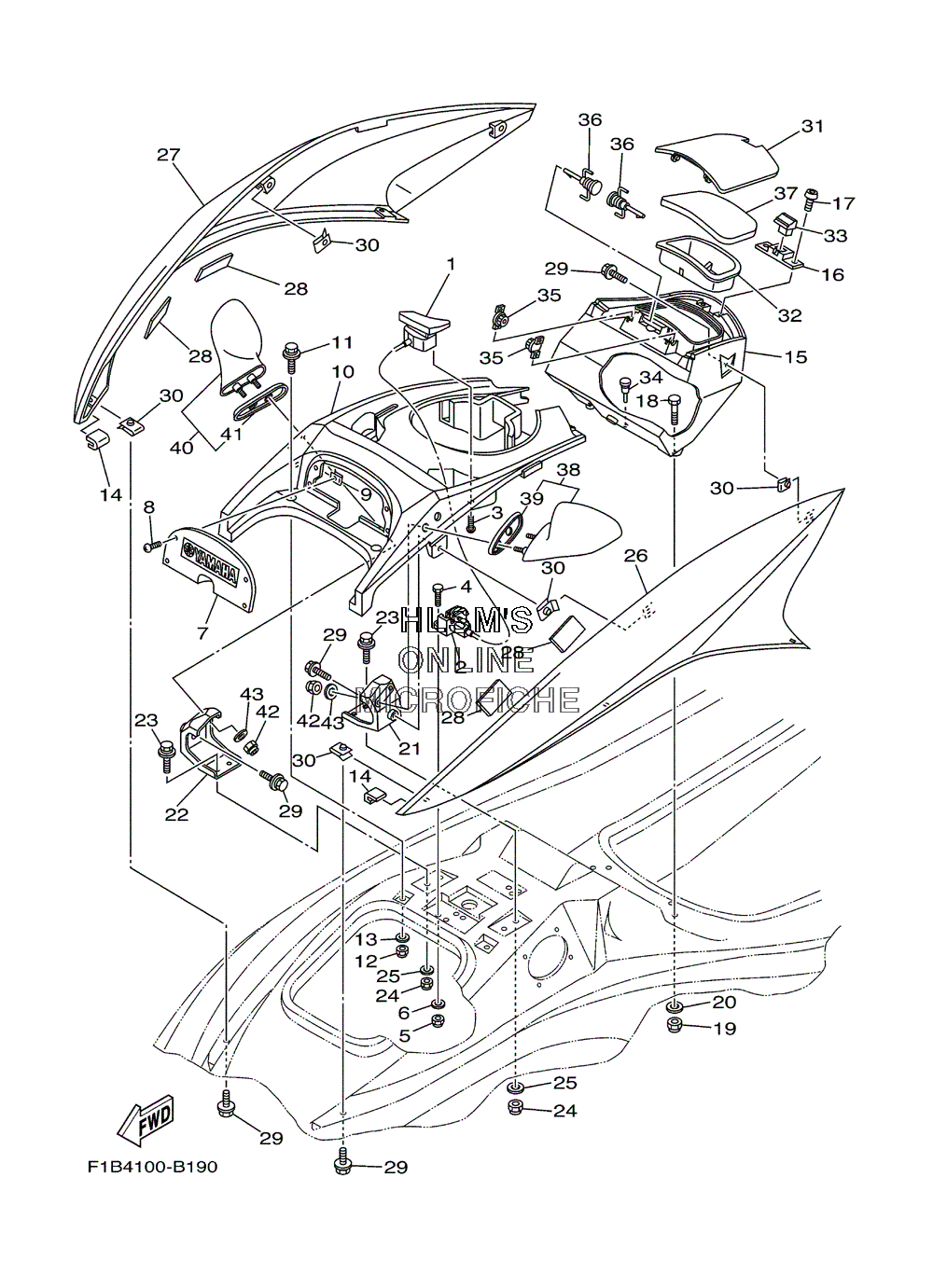

SIDE COVERS для Yamaha FX140 WAVERUNNER 3-PERSON - 2003 года выпуска
-
№АртикулНазвание
-
1F1B-651A1-00-00 LEVER, LID LOCKLEVER, LID LOCK
-
2F1B-6517C-00-00 LOCK, LIDLOCK, LID
-
390149-05946-00 SCREWSCREW
-
490119-06824-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
59572R-06300-00 NUT, NYLONNUT, NYLON
-
69299R-06200-00 WASHERWASHER
-
7F1B-U555B-00-00 SEAL, COVER CENTERSEAL, COVER CENTER
-
890149-05981-00 SCREWSCREW
-
9FJ0-61432-00-00 NUTNUT
-
10F1B-U5554-00-00 COVER, CENTER (BLACK (BL))COVER, CENTER (BLACK (BL))
-
1190119-06934-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
129572R-06300-00 NUT, NYLONNUT, NYLON
-
139299R-06200-00 WASHERWASHER
-
14F1B-U5115-00-00 TRIM, HATCH 1TRIM, HATCH 1
-
15F1B-U516P-00-00 BOX GLOVE (BLACK (BL))BOX GLOVE (BLACK (BL))
-
16F1B-65193-00-00 PLATEPLATE
-
1790111-06036-00 BOLTBOLT
-
1897080-08030-00 BOLTBOLT
-
199572R-08300-00 NUT, FLANGENUT, FLANGE
-
209299R-08200-00 WASHERWASHER
-
21F1B-U377M-00-00 BRKT, COVER SIDE 1BRKT, COVER SIDE 1
-
22F1B-U377N-00-00 BRKT, COVER SIDE 2BRKT, COVER SIDE 2
-
2390119-06934-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
249572R-06300-00 NUT, NYLONNUT, NYLON
-
259299R-06200-00 WASHERWASHER
-
26F1B-U377B-10-P0 COVER, SIDE 1 (DARK PURPLISH BLUE METALLIC)COVER, SIDE 1 (DARK PURPLISH BLUE METALLIC)
-
26F1B-U377B-20-P0 COVER, SIDE 1 (BLACK METALLIC (SMF))COVER, SIDE 1 (BLACK METALLIC (SMF))
-
27F1B-U377C-10-P0 COVER, SIDE 2 (DARK PURPLISH BLUE METALLIC)COVER, SIDE 2 (DARK PURPLISH BLUE METALLIC)
-
27F1B-U377C-20-P1 COVER, SIDE 2 (BLACK METALLIC (SMF))COVER, SIDE 2 (BLACK METALLIC (SMF))
-
28GJ1-U759C-00-00 MAT 2MAT 2
-
2990119-06858-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3090183-06902-00 NUT, SPRINGNUT, SPRING
-
31F1B-U517H-00-00 LID HATCHLID HATCH
-
32F1B-U5633-00-00 HOLDER, DRINKHOLDER, DRINK
-
33F0D-62875-00-00 LOCKLOCK
-
3490605-502U2-00 PLUGPLUG
-
35F1B-60210-00-00 GEAR ASSYGEAR ASSY
-
36F1B-6517R-00-00 PIN, HINGEPIN, HINGE
-
37F1B-U519D-00-00 PACKING CASEPACKING CASE
-
38F1B-6596B-00-00 MIRROR LEFT HAND (BLACK (BL))MIRROR LEFT HAND (BLACK (BL))
-
39F1B-6596F-00-00 ...GASKET, MIRROR LEFT HAND (BLACK (BL))...GASKET, MIRROR LEFT HAND (BLACK (BL))
-
40F1B-6596C-00-00 MIRROR RIGHT HAND (BLACK (BL))MIRROR RIGHT HAND (BLACK (BL))
-
41F1B-6596G-00-00 ...GASKET, MIRROR RIGHT HAND (BLACK (BL))...GASKET, MIRROR RIGHT HAND (BLACK (BL))
-
429572R-08300-00 NUT, FLANGENUT, FLANGE
-
439299R-08200-00 WASHERWASHER
