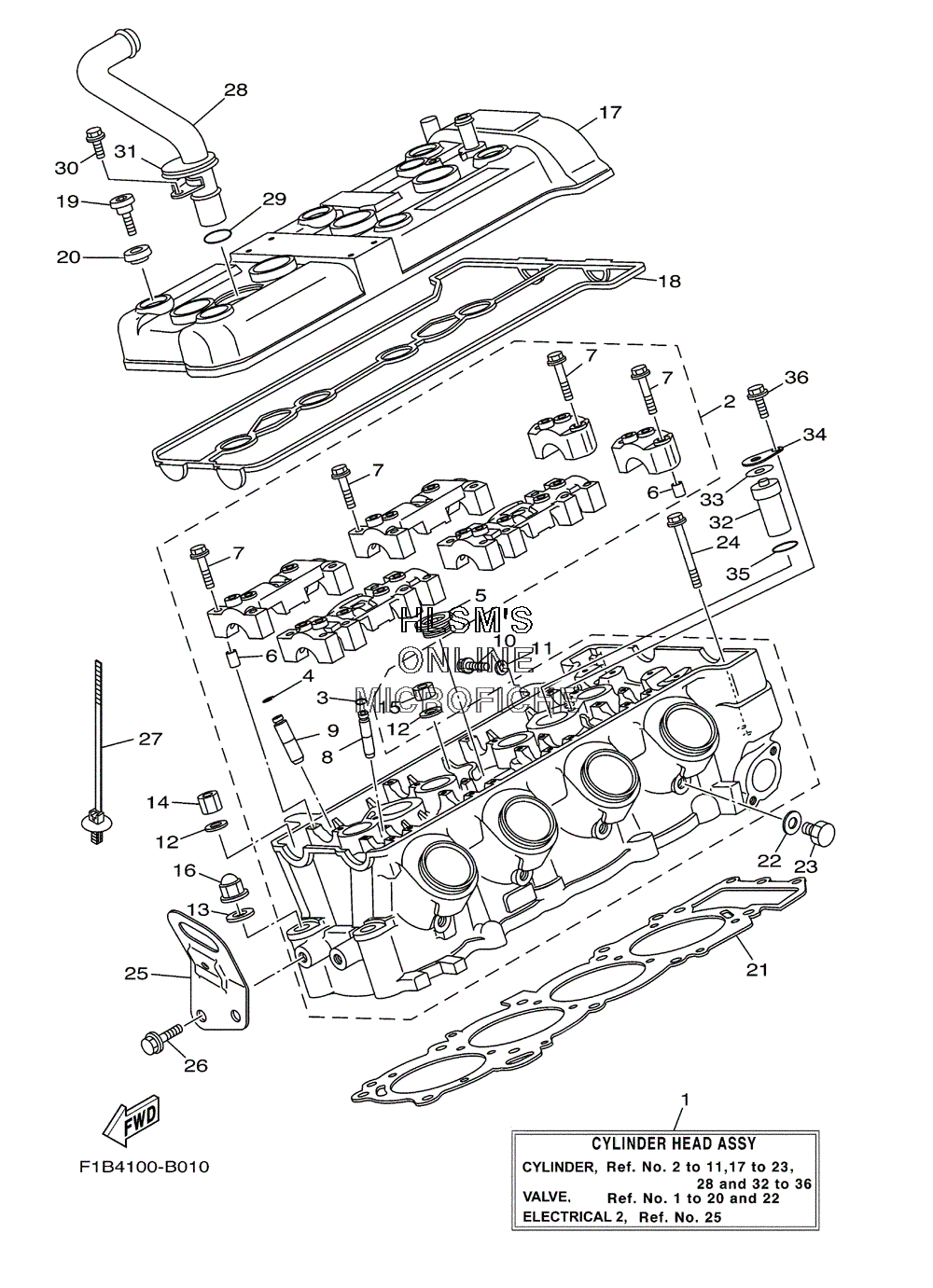

CYLINDER W/ HEAD для Yamaha FX140 WAVERUNNER 3-PERSON - 2003 года выпуска
-
№АртикулНазвание
-
160E-W009A-10-8P CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
260E-11102-00-94 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
393440-07149-00 ...CIRCLIP...CIRCLIP
-
493440-10153-00 ...CIRCLIP...CIRCLIP
-
590340-27001-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
691808-16023-00 ...PIN, DOWEL...PIN, DOWEL
-
790105-06026-00 ...BOLT, FLANGE...BOLT, FLANGE
-
83TJ-11133-10-00 ...GUIDE, VALVE...GUIDE, VALVE
-
91WG-11133-11-00 ...GUIDE, VALVE...GUIDE, VALVE
-
1095023-06012-00 BOLTBOLT
-
1190430-06014-00 GASKETGASKET
-
1290201-10013-00 WASHER, PLATEWASHER, PLATE
-
1390201-10019-00 WASHER, PLATEWASHER, PLATE
-
1490179-10006-00 NUTNUT
-
1590179-10414-00 NUTNUT
-
1690176-10001-00 NUT, CROWNNUT, CROWN
-
1760E-11191-00-94 COVER, CYLINDER HEAD 1COVER, CYLINDER HEAD 1
-
1860E-11193-00-00 GASKET, HEAD COVER 1GASKET, HEAD COVER 1
-
1990109-066F0-00 BOLTBOLT
-
204KG-1111G-00-00 RUBBER, MOUNT 1RUBBER, MOUNT 1
-
2160E-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
2290430-06014-00 GASKETGASKET
-
2391380-06012-00 BOLTBOLT
-
2497513-06555-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2560E-1111E-00-00 HANGER, ENGINE 2HANGER, ENGINE 2
-
2697513-08520-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2790464-20005-00 CLAMPCLAMP
-
2860E-12482-00-00 PIPE 2PIPE 2
-
2993210-18417-00 O-RINGO-RING
-
3091317-06016-00 BOLTBOLT
-
3160E-12494-00-00 SEAL, PIPE 1SEAL, PIPE 1
-
3260E-12483-10-00 PIPE 3PIPE 3
-
3360E-12474-00-00 GASKET 1GASKET 1
-
3460E-12537-00-00 PLATE 2PLATE 2
-
3593210-18417-00 O-RINGO-RING
-
3691317-06016-00 BOLTBOLT
