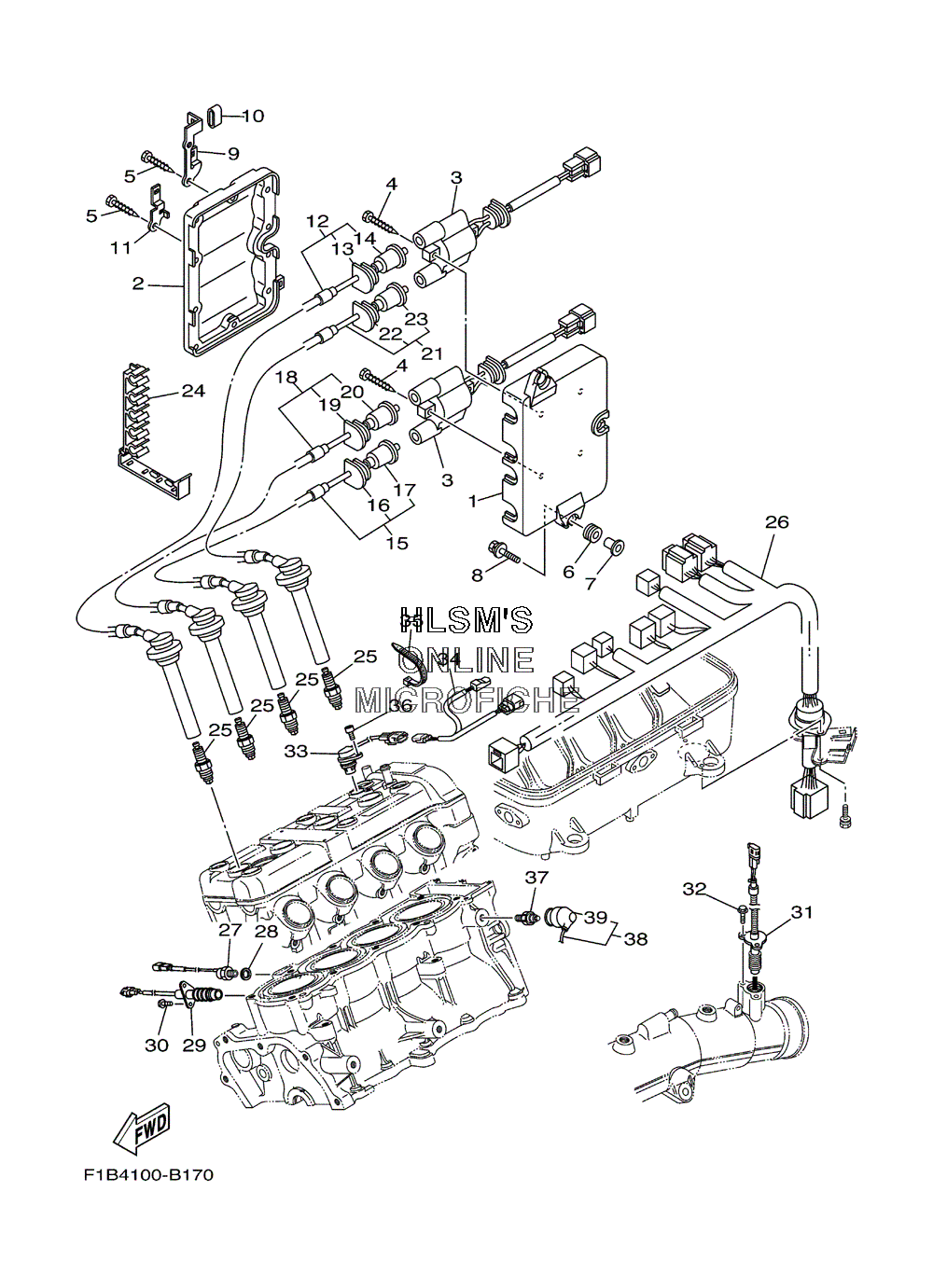

ELECTRICAL 2 для Yamaha FX140 WAVERUNNER 3-PERSON - 2003 года выпуска
-
№АртикулНазвание
-
160E-8235A-00-00 CASE 1CASE 1
-
260E-82314-00-00 COVER, IGNITION COILCOVER, IGNITION COIL
-
360E-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
497780-60525-00 SCREW, TAPPINGSCREW, TAPPING
-
597780-60520-00 SCREW, TAPPINGSCREW, TAPPING
-
66A0-82317-00-00 DAMPER, IGNITION COILDAMPER, IGNITION COIL
-
7624-42542-00-00 PIPEPIPE
-
890119-06M59-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
960E-85112-00-00 BRACKET, REFLECTOR 1BRACKET, REFLECTOR 1
-
1060E-82353-00-00 HOSEHOSE
-
1160E-85122-00-00 BRACKET, REFLECTOR 2BRACKET, REFLECTOR 2
-
1260E-82341-00-00 CORD, HIGH TENSION 1CORD, HIGH TENSION 1
-
1390480-06M43-00 ...GROMMET...GROMMET
-
1466V-82355-00-00 ...GROMMET...GROMMET
-
1560E-82342-00-00 CORD, HIGH TENSION 2CORD, HIGH TENSION 2
-
1690480-06M43-00 ...GROMMET...GROMMET
-
1766V-82355-00-00 ...GROMMET...GROMMET
-
1860E-82343-00-00 CORD, HIGH TENSION 3CORD, HIGH TENSION 3
-
1990480-06M43-00 ...GROMMET...GROMMET
-
2066V-82355-00-00 ...GROMMET...GROMMET
-
2160E-82344-00-00 CORD, HIGH TENSION 4CORD, HIGH TENSION 4
-
2290480-06M43-00 ...GROMMET...GROMMET
-
2366V-82355-00-00 ...GROMMET...GROMMET
-
2460E-81317-00-00 CLAMP, CORDCLAMP, CORD
-
25NGK-CR9EB-00-00 PLUG, SPARK (NGK CR9EB)PLUG, SPARK (NGK CR9EB)
-
2660E-8259M-10-00 WIRE HARNESS ASSY 2WIRE HARNESS ASSY 2
-
2760E-85790-01-00 THERMOSENSOR ASSYTHERMOSENSOR ASSY
-
2892990-10600-00 WASHER, PLATEWASHER, PLATE
-
2960E-82560-A0-00 THERMO SWITCH ASSYTHERMO SWITCH ASSY
-
3097595-06416-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3160E-82560-00-00 THERMO SWITCH ASSYTHERMO SWITCH ASSY
-
3297595-06416-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3360E-85896-00-00 SENSOR, CAM POSITIONSENSOR, CAM POSITION
-
3460E-81325-00-00 CONDENSER 1CONDENSER 1
-
3590465-13M11-00 CLAMPCLAMP
-
3691380-06016-00 BOLTBOLT
-
3768V-82504-00-00 OIL PRESSURE SWITCH ASSYOIL PRESSURE SWITCH ASSY
-
3860E-81315-00-00 LEAD WIRE ASSYLEAD WIRE ASSY
-
3960E-82532-00-00 ...CAP...CAP
