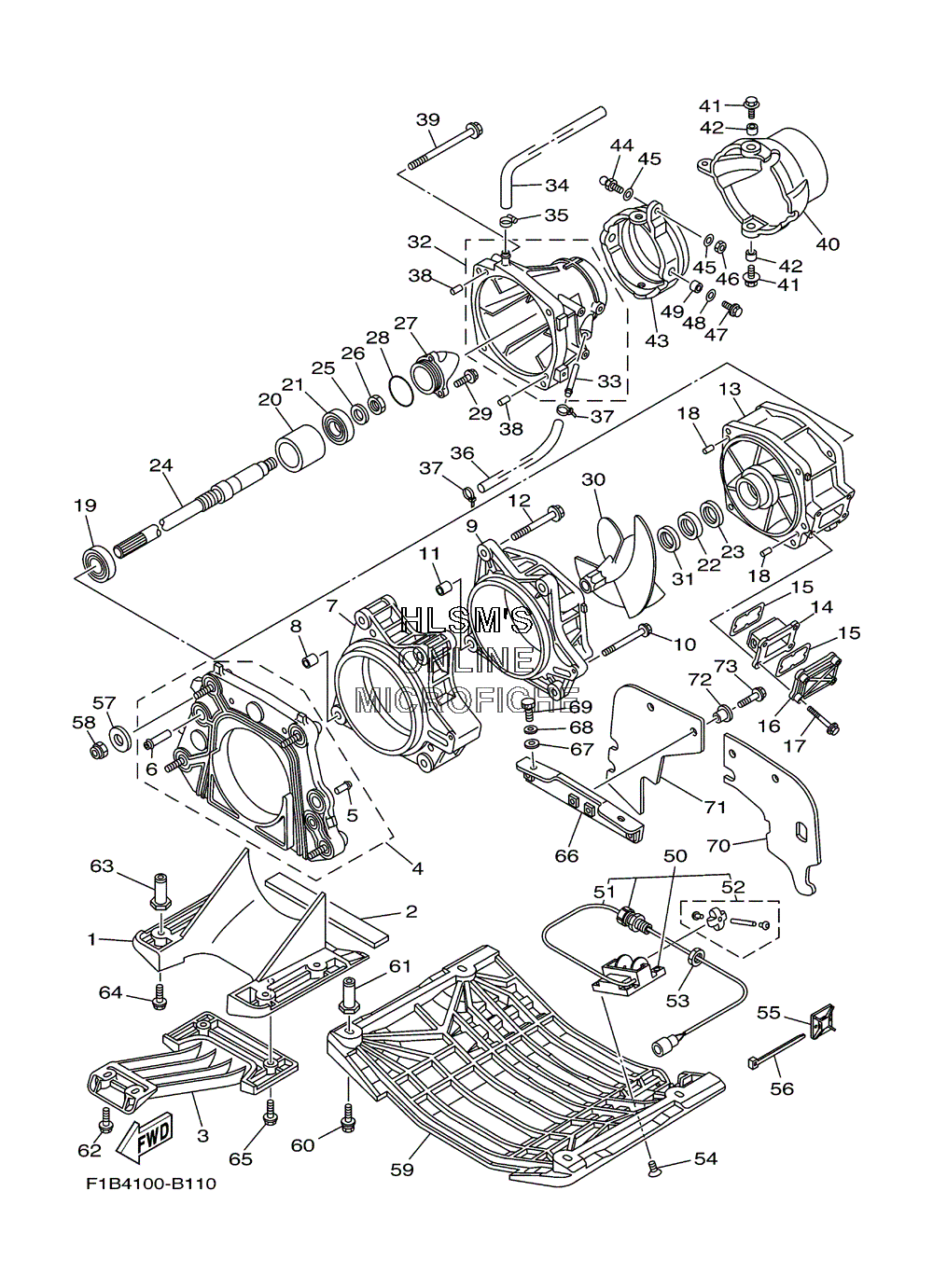

PROPULSION SYSTEM - EXTERNAL для Yamaha FX140 WAVERUNNER 3-PERSON - 2003 года выпуска
-
№АртикулНазвание
-
160E-R1311-00-94 DUCT, INTAKEDUCT, INTAKE
-
266V-51367-00-00 FELT, PACKINGFELT, PACKING
-
360E-R1333-00-94 SCREEN, INTAKESCREEN, INTAKE
-
460E-G5831-00-00 PLATE, TRANSOMPLATE, TRANSOM
-
565A-R1129-00-00 ...NIPPLE...NIPPLE
-
666V-51129-10-00 ...NIPPLE...NIPPLE
-
760E-51317-00-94 HOUSING, IMPELLER 2HOUSING, IMPELLER 2
-
899590-14016-00 PIN, DOWELPIN, DOWEL
-
966V-51312-01-94 HOUSING, IMPELLERHOUSING, IMPELLER
-
1090119-06842-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1199590-14016-00 PIN, DOWELPIN, DOWEL
-
1290119-10800-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1366V-51315-00-94 DUCT, IMPELLERDUCT, IMPELLER
-
1466V-46882-00-00 FILTERFILTER
-
1566V-42414-00-00 O-RINGO-RING
-
1666V-45214-00-94 COVER, WATER INLETCOVER, WATER INLET
-
1790119-06800-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1893606-12019-00 PIN, DOWELPIN, DOWEL
-
1993306-205U0-00 BEARINGBEARING
-
2065V-45538-00-00 SPACER 1SPACER 1
-
2193306-304U1-00 BEARINGBEARING
-
2293101-28M66-00 OIL SEALOIL SEAL
-
2393101-28M65-00 OIL SEALOIL SEAL
-
2468Y-45511-00-00 SHAFT, DRIVESHAFT, DRIVE
-
259299R-16600-00 WASHERWASHER
-
269531P-16700-00 NUTNUT
-
2765A-R1326-00-00 CAPCAP
-
2893210-46M16-00 O-RINGO-RING
-
2990119-069UB-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3068N-R1321-00-00 IMPELLERIMPELLER
-
3166V-R1348-10-00 SPACERSPACER
-
3260E-51318-00-94 NOZZLENOZZLE
-
3363M-51334-00-00 ...NIPPLE, HOSE...NIPPLE, HOSE
-
3490445-16M09-00 HOSE (L310)HOSE (L310)
-
3590601-118UF-00 BAND, HOSE 18BAND, HOSE 18
-
3690445-14804-00 HOSE (L330)HOSE (L330)
-
3790465-11829-00 CLAMPCLAMP
-
3893606-12019-00 PIN, DOWELPIN, DOWEL
-
3990119-10837-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
4060E-51313-00-00 NOZZLE, DEFLECTORNOZZLE, DEFLECTOR
-
4190119-089UE-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
4290387-08M06-00 COLLARCOLLAR
-
4360E-51190-00-94 RING,TRIMRING,TRIM
-
44GH3-U146E-00-00 STUD, JOINT BALLSTUD, JOINT BALL
-
4590201-068M4-00 WASHER, PLATEWASHER, PLATE
-
469538R-06700-00 NUTNUT
-
4790105-08829-00 BOLT, FLANGEBOLT, FLANGE
-
4890202-10M56-00 WASHER, PLATEWASHER, PLATE
-
4990387-08M19-00 COLLARCOLLAR
-
50GJ1-U8K31-02-00 SENSOR SPEEDSENSOR SPEED
-
51EU0-67267-20-00 ...CONNECTOR, CABLE...CONNECTOR, CABLE
-
52GJ1-U835D-00-00 ...REPAIR KIT (SPEED SENSOR)...REPAIR KIT (SPEED SENSOR)
-
53EU0-62241-30-00 NUT, DRAIN 1NUT, DRAIN 1
-
549878R-05512-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
5590600-900U6-00 BASE, CLAMPBASE, CLAMP
-
5690464-40825-00 CLAMPCLAMP
-
57F1B-U725E-00-00 WASHERWASHER
-
589572R-10300-00 NUT, FLANGENUT, FLANGE
-
59F1B-U273B-02-00 PLATE 2PLATE 2
-
6090119-089U6-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
6190179-08812-00 NUTNUT
-
6290119-069UK-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
6390179-08812-00 NUTNUT
-
6490119-089U6-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
6590119-069UB-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
66F1B-67557-00-00 BRACKETBRACKET
-
6790430-12002-00 GASKETGASKET
-
6890201-12017-00 WASHER, PLATEWASHER, PLATE
-
6990109-08041-00 BOLTBOLT
-
70F1B-6757E-00-00 PLATE, RUBBER 1PLATE, RUBBER 1
-
71F1B-6757F-00-00 PLATE, RUBBER 2PLATE, RUBBER 2
-
7290387-06051-00 COLLARCOLLAR
-
7390119-06827-00 BOLT, WITH WASHERBOLT, WITH WASHER
