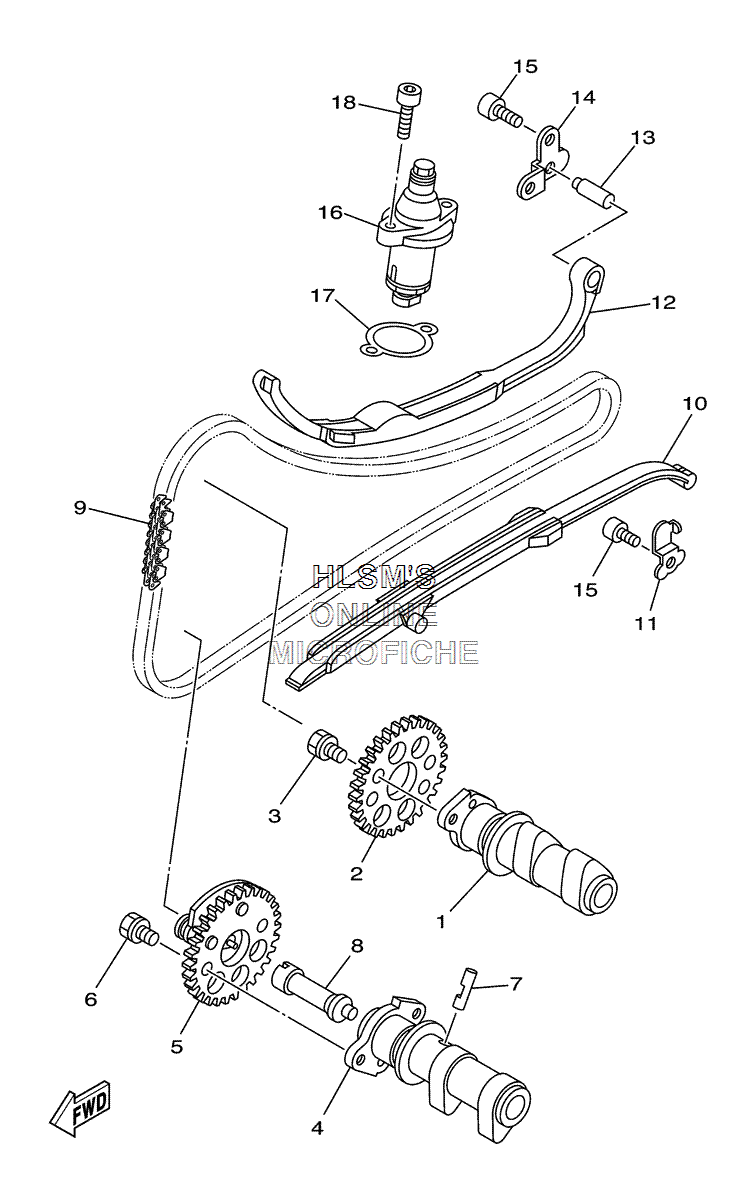

CAMSHAFT W/ CHAIN для Yamaha MAJESTY - 2005 года выпуска
-
№АртикулНазвание
-
15RU-12171-00-00 CAMSHAFT 1CAMSHAFT 1
-
25RU-12176-00-00 SPROCKET, CAM CHAINSPROCKET, CAM CHAIN
-
390105-07005-00 BOLT, FLANGEBOLT, FLANGE
-
45RU-12181-00-00 CAMSHAFT 2CAMSHAFT 2
-
55RU-12280-00-00 DECOMPRESSION ASSY.DECOMPRESSION ASSY.
-
690105-07005-00 BOLT, FLANGEBOLT, FLANGE
-
75TA-12288-00-00 CAM, DECOMPRESSIONCAM, DECOMPRESSION
-
85VK-12290-00-00 LEVER, DECOMPRESSION SPRINGLEVER, DECOMPRESSION SPRING
-
994582-18136-00 CHAINCHAIN
-
105RU-12231-00-00 GUIDE, STOPPER 1GUIDE, STOPPER 1
-
115RU-12233-00-00 PLATE, GUIDE STOPPER 1PLATE, GUIDE STOPPER 1
-
125RU-12241-00-00 GUIDE, STOPPER 2GUIDE, STOPPER 2
-
135RU-12257-00-00 SHAFT 2SHAFT 2
-
145RU-12243-00-00 PLATE, GUIDE STOPPER 2PLATE, GUIDE STOPPER 2
-
1590110-06226-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
165GJ-12210-10-00 TENSIONER ASSY., CAM CHAINTENSIONER ASSY., CAM CHAIN
-
174FM-12213-00-00 GASKET, TENSIONER CASEGASKET, TENSIONER CASE
-
1891317-06020-00 BOLTBOLT
