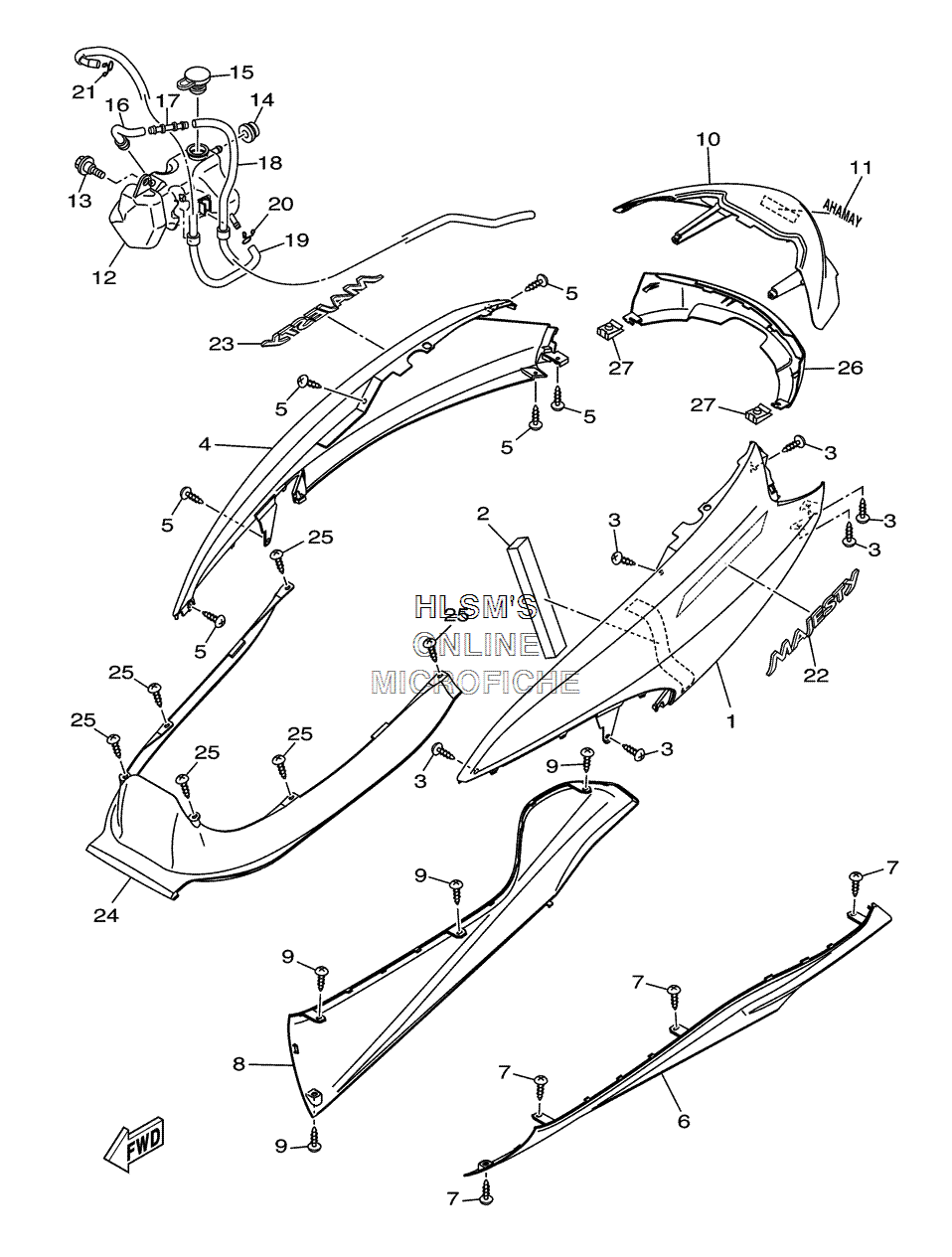

SIDE COVER для Yamaha MAJESTY - 2005 года выпуска
-
№АртикулНазвание
-
15RU-21711-00-P1 COVER, SIDE 1 (DPBML)COVER, SIDE 1 (DPBML)
-
15RU-21711-00-P2 COVER, SIDE 1 (DBNM8)COVER, SIDE 1 (DBNM8)
-
25RU-21732-00-00 SEAL 1SEAL 1
-
397707-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
45RU-21721-00-P1 COVER, SIDE 2 (DPBML)COVER, SIDE 2 (DPBML)
-
45RU-21721-00-P2 COVER, SIDE 2 (DBNM8)COVER, SIDE 2 (DBNM8)
-
597707-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
65RU-2171L-00-P1 MOLE, SIDE COVER 1 (DPBML)MOLE, SIDE COVER 1 (DPBML)
-
65RU-2171L-00-P2 MOLE, SIDE COVER 1 (DBNM8)MOLE, SIDE COVER 1 (DBNM8)
-
797707-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
85RU-2171M-00-P1 MOLE, SIDE COVER 2 (DPBML)MOLE, SIDE COVER 2 (DPBML)
-
85RU-2171M-00-P2 MOLE, SIDE COVER 2 (DBNM8)MOLE, SIDE COVER 2 (DBNM8)
-
997707-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
105RU-2171N-01-P1 MOLE, SIDE COVER 3 (DPBML)MOLE, SIDE COVER 3 (DPBML)
-
105RU-2171N-01-P2 MOLE, SIDE COVER 3 (DBNM8)MOLE, SIDE COVER 3 (DBNM8)
-
1199246-00080-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
-
125RU-21871-00-00 TANK, RECOVERYTANK, RECOVERY
-
1390109-063F1-00 BOLTBOLT
-
1490480-13426-00 GROMMETGROMMET
-
1510V-21875-00-00 CAPCAP
-
165RU-21816-00-00 PIPE 1PIPE 1
-
171E7-21753-00-00 BOSS, CONNECTORBOSS, CONNECTOR
-
185RU-2125J-00-00 PIPE, DRAINPIPE, DRAIN
-
195RU-21817-00-00 PIPE 2PIPE 2
-
2090467-08003-00 CLIP, SCISSORCLIP, SCISSOR
-
2190467-10008-00 CLIP, SCISSORCLIP, SCISSOR
-
225RU-2173B-00-00 EMBLEM 3DEMBLEM 3D
-
235RU-2174B-00-00 EMBLEM 3DEMBLEM 3D
-
245RU-21731-00-00 COVER, SIDE 3COVER, SIDE 3
-
2597707-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
265RU-21741-00-P1 COVER, SIDE 4 (DPBML)COVER, SIDE 4 (DPBML)
-
265RU-21741-00-P2 COVER, SIDE 4 (DBNM8)COVER, SIDE 4 (DBNM8)
-
2790183-05042-00 NUT, SPRINGNUT, SPRING
