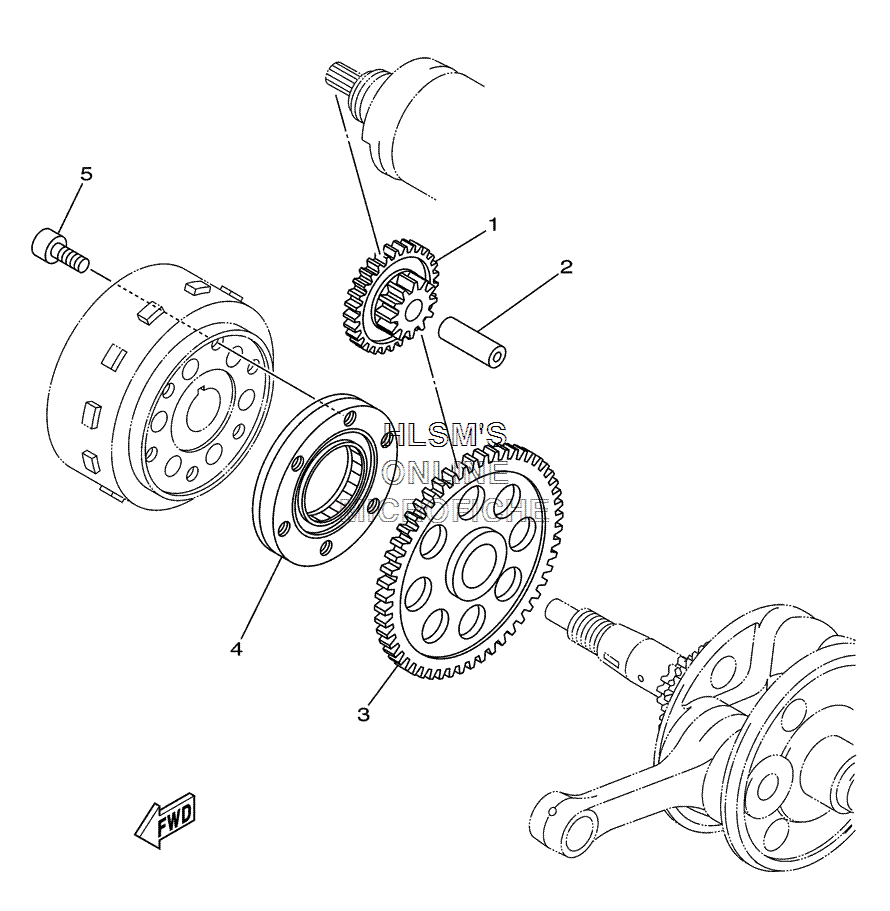

STARTER CLUTCH ASSY. для Yamaha MAJESTY - 2005 года выпуска
-
№АртикулНазвание
-
15RU-15512-00-00 GEAR, IDLER 1GEAR, IDLER 1
-
24GY-15521-00-00 SHAFT 1SHAFT 1
-
35RU-15517-00-00 GEAR, IDLER 2GEAR, IDLER 2
-
45RU-15590-00-00 STARTER ONE-WAY ASSY.STARTER ONE-WAY ASSY.
-
590110-08037-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
