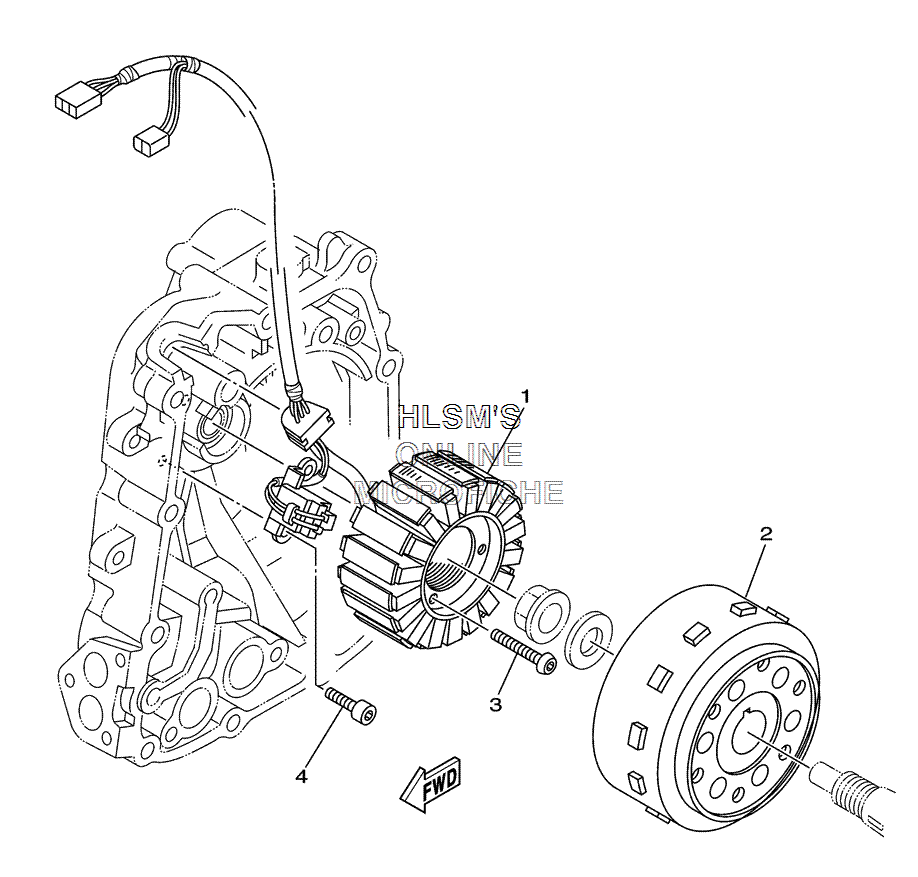

GENERATOR ASSY. для Yamaha MAJESTY - 2005 года выпуска
-
№АртикулНазвание
-
15RU-81410-00-00 STATOR ASSY.STATOR ASSY.
-
25RU-81450-00-00 ROTOR ASSY.ROTOR ASSY.
-
390149-06042-00 SCREWSCREW
-
490110-06004-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
