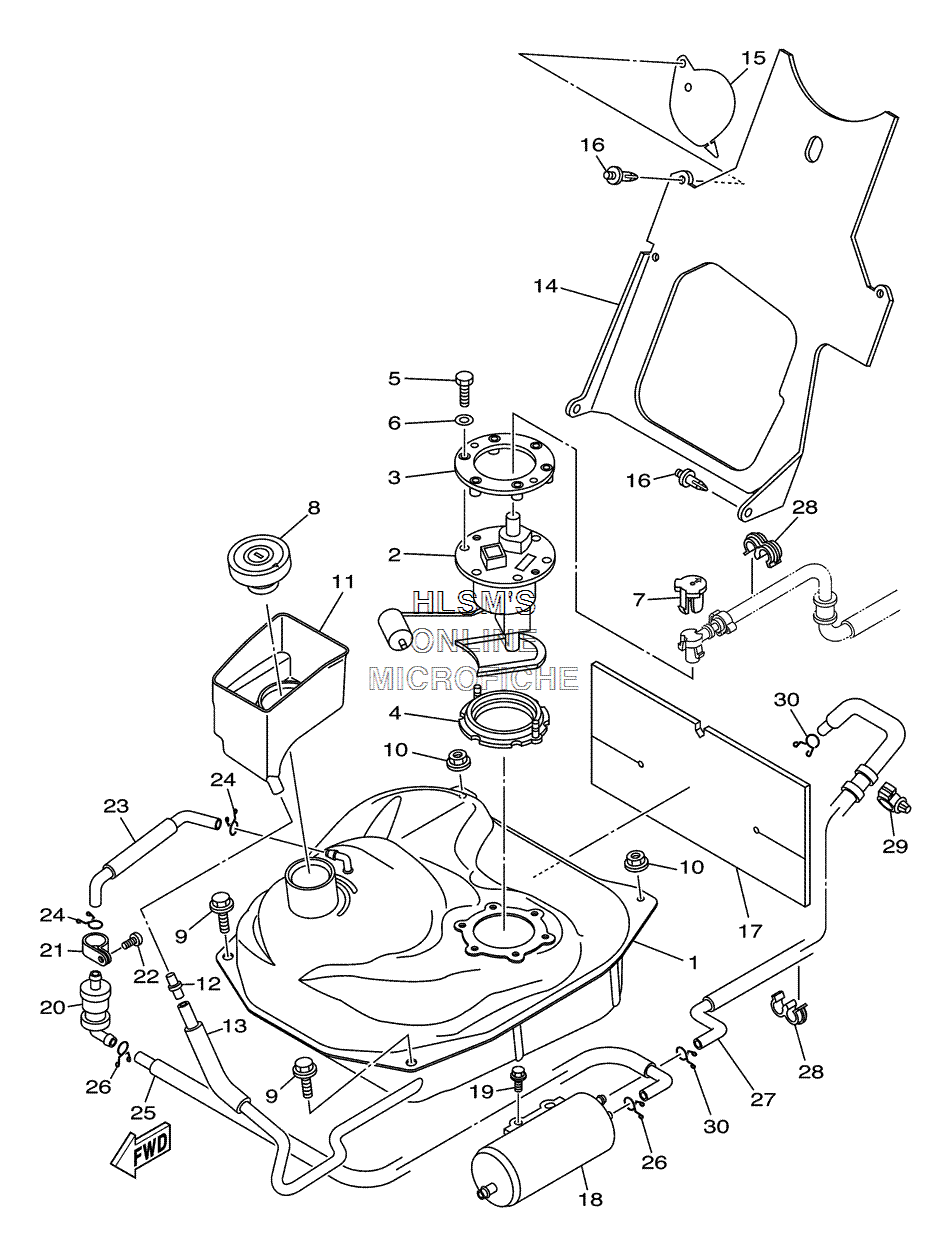

FUEL TANK ASSY. для Yamaha MAJESTY - 2005 года выпуска
-
№АртикулНазвание
-
15RU-24110-10-00 FUEL TANK COMP.FUEL TANK COMP.
-
25RU-13907-00-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
35CA-24491-00-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
45CA-2414G-00-00 SEALSEAL
-
597007-05020-00 BOLTBOLT
-
692907-05600-00 WASHER, PLATEWASHER, PLATE
-
75VU-24135-00-00 CLAMP 1CLAMP 1
-
854K-24602-00-00 CAP ASSY.CAP ASSY.
-
995827-06012-00 BOLT, FLANGEBOLT, FLANGE
-
1095707-06500-00 NUT, FLANGENUT, FLANGE
-
115RU-2414A-00-00 COVER, FILLERCOVER, FILLER
-
124JP-21753-00-00 BOSS, CONNECTORBOSS, CONNECTOR
-
135RU-24312-00-00 PIPE 2PIPE 2
-
145RU-2414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
-
155RU-2475X-00-00 COVER,2COVER,2
-
1690269-07008-00 RIVETRIVET
-
175RU-2414J-00-00 DAMPER, PLATE 2DAMPER, PLATE 2
-
185RU-24170-00-00 CANISTER ASSY.CANISTER ASSY.
-
1995807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
205RB-24180-00-00 ROLL OVER VALVE ASSY.ROLL OVER VALVE ASSY.
-
2190461-15139-00 CLAMPCLAMP
-
2298907-05012-00 SCREW, BINDSCREW, BIND
-
235RU-24313-00-00 PIPE 3PIPE 3
-
2490467-10041-00 CLIP, SCISSORCLIP, SCISSOR
-
255RU-24315-00-00 PIPE 5PIPE 5
-
2690467-09006-00 CLIP, SCISSORCLIP, SCISSOR
-
275RU-24314-00-00 PIPE 4PIPE 4
-
2890464-13194-00 CLAMPCLAMP
-
2990464-18002-00 CLAMPCLAMP
-
3090467-09006-00 CLIP, SCISSORCLIP, SCISSOR
