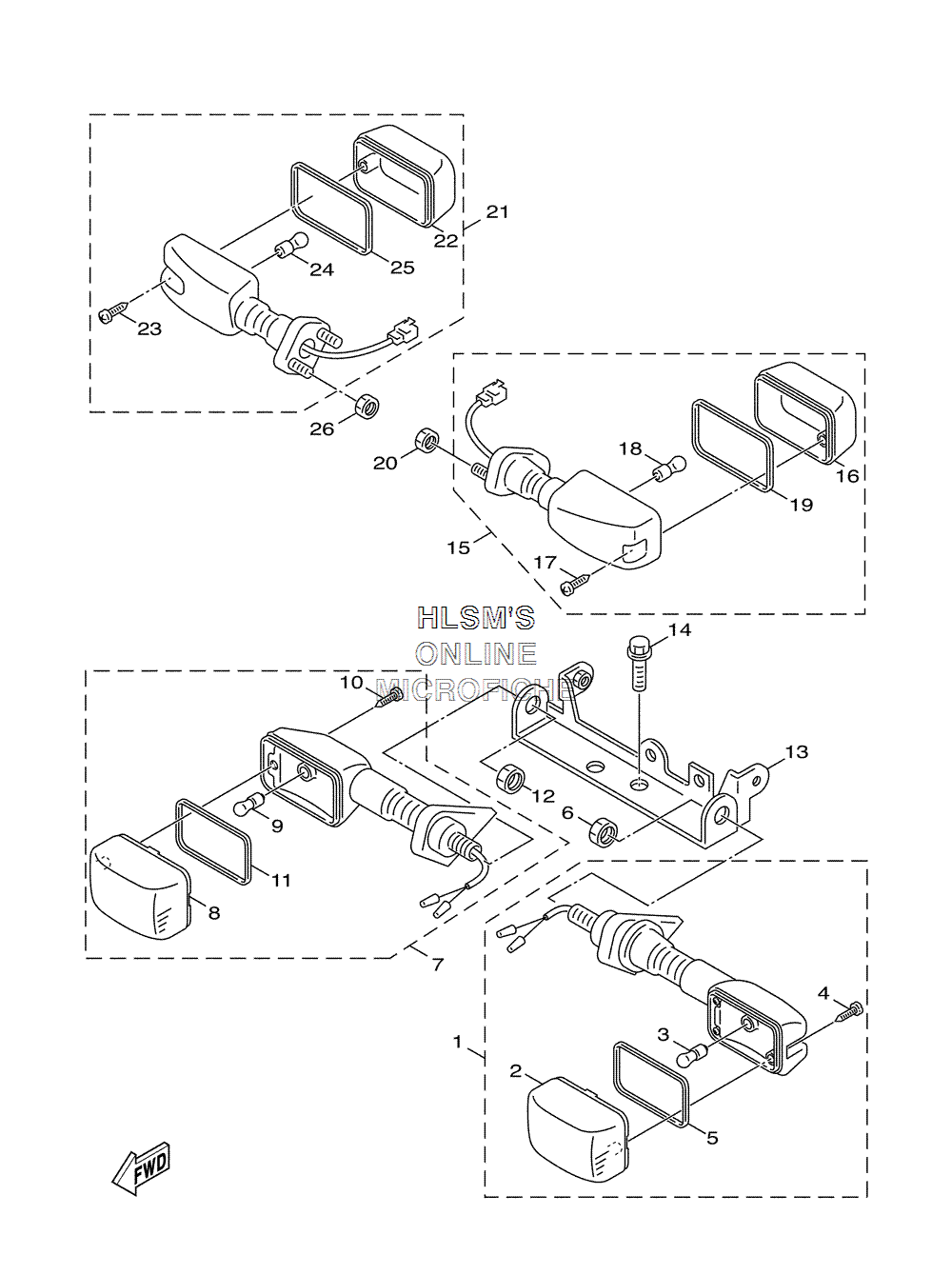

FLASHER LIGHT для Yamaha VINO 125 - 2005 года выпуска
-
№АртикулНазвание
-
15YR-H3310-00-00 FRONT FLASHER LIGHT ASSY 1FRONT FLASHER LIGHT ASSY 1
-
25PJ-H3312-00-00 ...LENS, FLASHER...LENS, FLASHER
-
34VP-H3311-00-00 ...BULB 12V 10W...BULB 12V 10W
-
497780-40614-00 ...SCREW, TAPPING...SCREW, TAPPING
-
55PJ-H3313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
695307-12600-00 NUTNUT
-
75YR-H3320-00-00 FRONT FLASHER LIGHT ASSY 2FRONT FLASHER LIGHT ASSY 2
-
85PJ-H3312-00-00 ...LENS, FLASHER...LENS, FLASHER
-
94VP-H3311-00-00 ...BULB 12V 10W...BULB 12V 10W
-
1097780-40614-00 ...SCREW, TAPPING...SCREW, TAPPING
-
115PJ-H3313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
1295307-12600-00 NUTNUT
-
135YR-H3318-00-00 STAY, FLASHER 1STAY, FLASHER 1
-
1495807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
155YR-H3330-00-00 REAR FLASHER LIGHT ASSY 1REAR FLASHER LIGHT ASSY 1
-
165PJ-H3312-00-00 ...LENS, FLASHER...LENS, FLASHER
-
1797780-40614-00 ...SCREW, TAPPING...SCREW, TAPPING
-
184VP-H3311-00-00 ...BULB 12V 10W...BULB 12V 10W
-
195PJ-H3313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
2095707-06500-00 NUT, FLANGENUT, FLANGE
-
215YR-H3340-00-00 REAR FLASHER LIGHT ASSY 2REAR FLASHER LIGHT ASSY 2
-
225PJ-H3312-00-00 ...LENS, FLASHER...LENS, FLASHER
-
2397780-40614-00 ...SCREW, TAPPING...SCREW, TAPPING
-
244VP-H3311-00-00 ...BULB 12V 10W...BULB 12V 10W
-
255PJ-H3313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
2695707-06500-00 NUT, FLANGENUT, FLANGE
Все узлы модели:
- AIR CLEANER ASSY. W/ INTAKE
- AIR SHROUD W/ FAN
- BRAKE - FRONT CALIPER
- BRAKE - FRONT MASTER CYLINDER
- CARBURETOR ASSY.
- CLUTCH ASSY.
- COWLING W/ LEG SHIELD
- CRANKCASE ASSY.
- CRANKSHAFT W/ PISTON ASSY.
- CYLINDER W/ HEAD ASSY.
- ELECTRICAL
- EXHAUST ASSY.
- FENDER - FRONT
- • FLASHER LIGHT
- FRAME
- FUEL TANK ASSY.
- GENERATOR ASSY.
- HANDLEBAR - COVER W/ MIRRORS
- HANDLEBAR W/ CABLES - MIRRORS
- HANDLEBAR W/ SWITCHES - LEVERS
- HEADLIGHT ASSY.
- INSTRUMENT PANEL
- MODEL INFO - MANUALS
- OIL PUMP
- SEAT ASSY.
- SIDE COVER
- STAND W/ FOOTREST
- STARTER CLUTCH ASSY.
- STARTING MOTOR ASSY.
- SUSPENSION - FRONT FORK
- SUSPENSION - REAR ARM W/ SHOCK
- TAILLIGHT ASSY.
- TRANSMISSION
- VALVE ASSY.
- WHEEL - FRONT
- WHEEL - REAR
