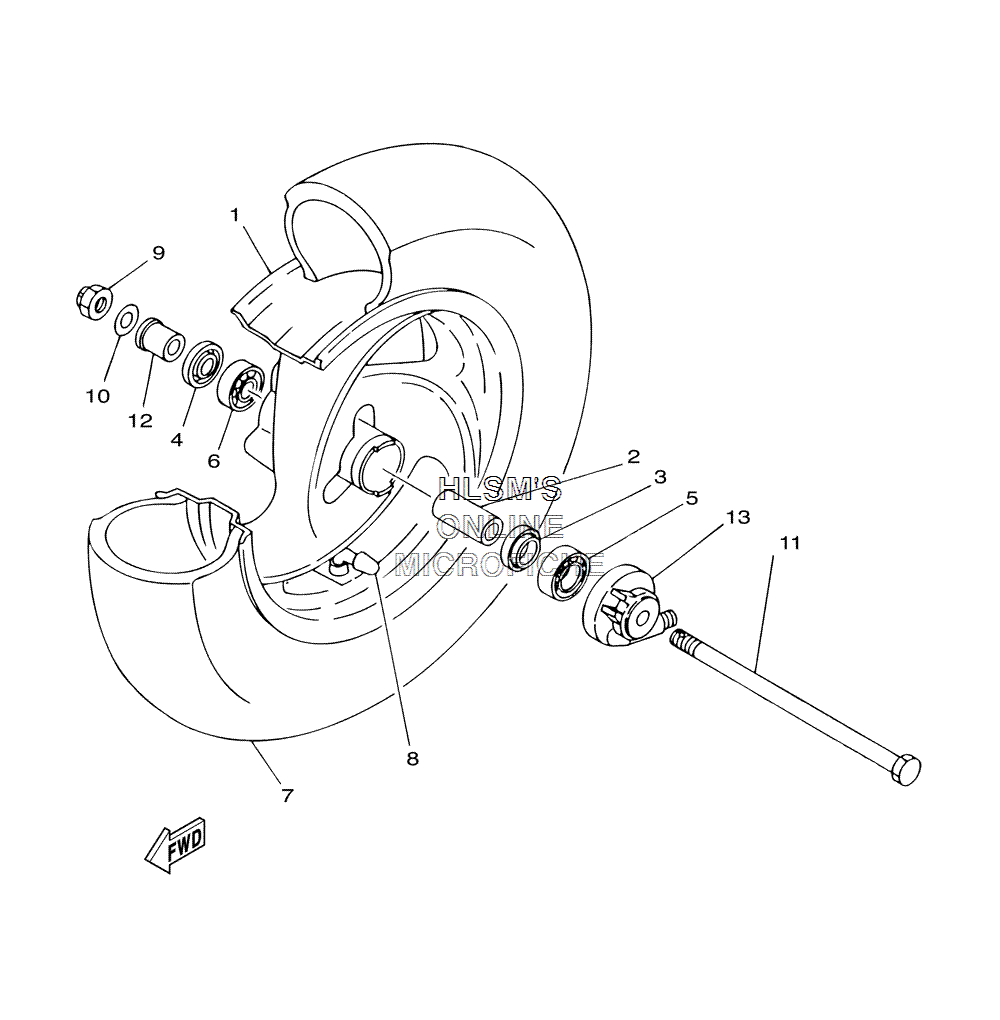

WHEEL - FRONT для Yamaha VINO 125 - 2005 года выпуска
-
№АртикулНазвание
-
14HP-F5168-01-1V CAST WHEEL, FRONT (SILVER)CAST WHEEL, FRONT (SILVER)
-
290387-124H3-00 COLLARCOLLAR
-
33KW-F5315-00-00 FLANGE, SPACERFLANGE, SPACER
-
493102-17853-00 OIL SEALOIL SEAL
-
593306-301Y3-00 BEARINGBEARING
-
693306-201X2-00 BEARINGBEARING
-
794135-108G9-00 TIRE (3.50-10) CHENGSHINTIRE (3.50-10) CHENGSHIN
-
893900-00802-00 VALVE, RIMVALVE, RIM
-
995607-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1090201-12729-00 WASHER, PLATEWASHER, PLATE
-
115JS-F5181-00-00 AXLE, WHEELAXLE, WHEEL
-
1290387-125J1-00 COLLARCOLLAR
-
135UA-F5190-00-00 GEAR UNIT ASSYGEAR UNIT ASSY
