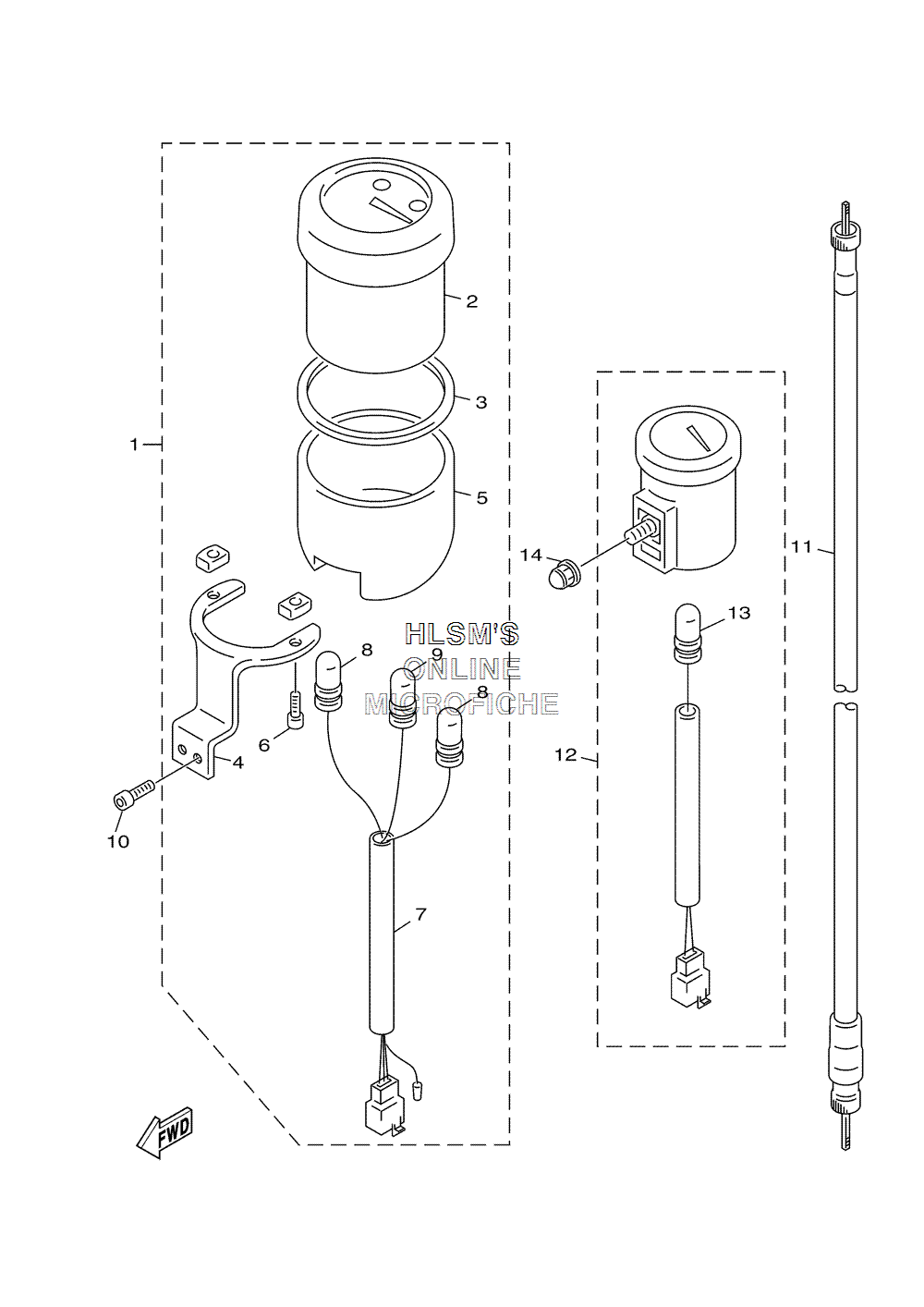

INSTRUMENT PANEL для Yamaha VINO 125 - 2005 года выпуска
-
№АртикулНазвание
-
15YR-H3510-00-00 SPEEDOMETER ASSYSPEEDOMETER ASSY
-
25YR-H351A-00-00 ...METER ASSY...METER ASSY
-
35FH-H357K-00-00 ...PACKING, METER...PACKING, METER
-
45YR-H3519-00-00 ...BRACKET, METER...BRACKET, METER
-
55FH-H3507-00-00 ...COVER, SPEEDOMETER...COVER, SPEEDOMETER
-
65FH-H3616-00-00 ...SCREW, TAPPING...SCREW, TAPPING
-
75YR-H3509-00-00 ...SOCKET CORD ASSY...SOCKET CORD ASSY
-
85FH-H3517-00-00 ...BULB...BULB
-
93KW-H3517-00-00 ...BULB (12V 1.7W)...BULB (12V 1.7W)
-
1091317-06010-00 BOLTBOLT
-
115YR-H3550-00-00 SPEEDOMETER CABLE ASSYSPEEDOMETER CABLE ASSY
-
125FH-H5750-00-00 FUEL METER ASSYFUEL METER ASSY
-
135FH-H3517-00-00 ...BULB...BULB
-
1490176-06055-00 NUT, CROWNNUT, CROWN
