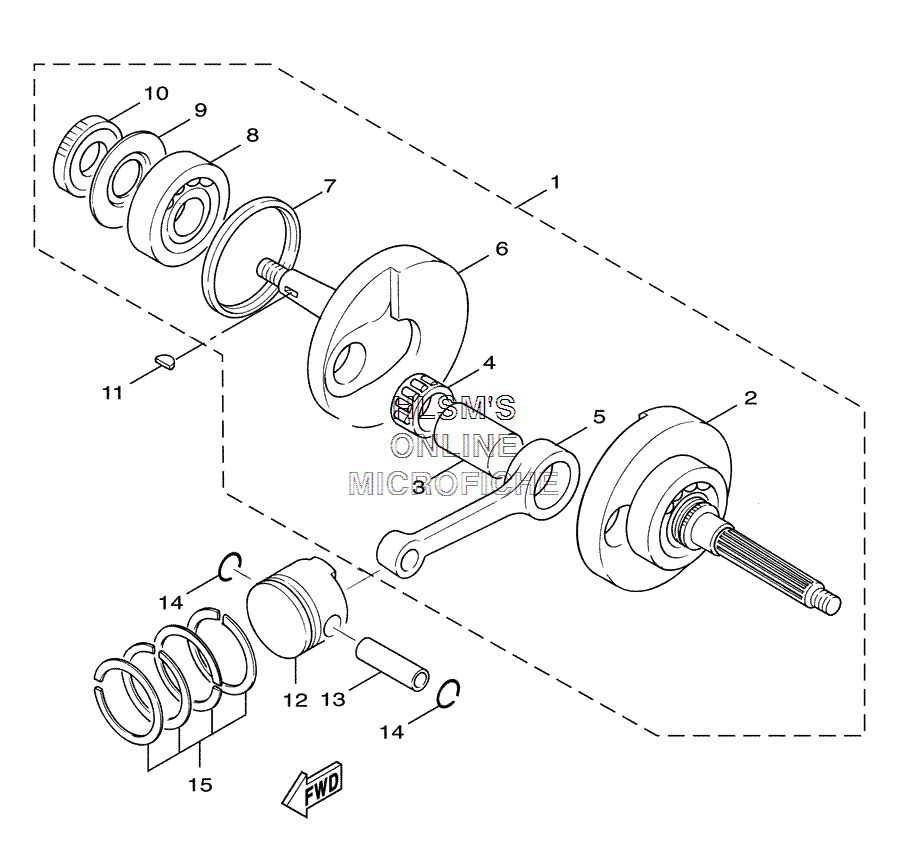

CRANKSHAFT W/ PISTON ASSY. для Yamaha VINO 125 - 2006 года выпуска
-
№АртикулНазвание
-
15NV-E1400-02-00 CRANKSHAFT ASSY.CRANKSHAFT ASSY.
-
25NV-W1141-00-00 ...CRANK 1...CRANK 1
-
35ML-E1681-00-00 ...PIN, CRANK 1...PIN, CRANK 1
-
493310-528Y9-00 ...BEARING...BEARING
-
55NV-E1651-00-00 ...ROD, CONNECTING...ROD, CONNECTING
-
65NV-E1422-00-00 ...CRANK 2...CRANK 2
-
75NV-E3452-00-00 ...COVER, ROTOR FILTER...COVER, ROTOR FILTER
-
893306-20599-00 ...BEARING...BEARING
-
94CW-E1445-00-00 ...SPACER...SPACER
-
104CW-E3324-00-00 ...GEAR, PUMP DRIVE...GEAR, PUMP DRIVE
-
1190280-03045-00 KEY, WOODRUFFKEY, WOODRUFF
-
124KP-E1631-11-A0 PISTON (STD)PISTON (STD)
-
124KP-E1636-11-00 PISTON (0.50MM O/S) (OPT)PISTON (0.50MM O/S) (OPT)
-
134CW-E1633-00-00 PIN, PISTONPIN, PISTON
-
1493450-14088-00 CIRCLIP, INNERCIRCLIP, INNER
-
154CW-E1603-02-00 PISTON RING SET (STD)PISTON RING SET (STD)
-
154CW-E1605-10-00 PISTON RING SET (0.50MM O/S) (OPT)PISTON RING SET (0.50MM O/S) (OPT)
