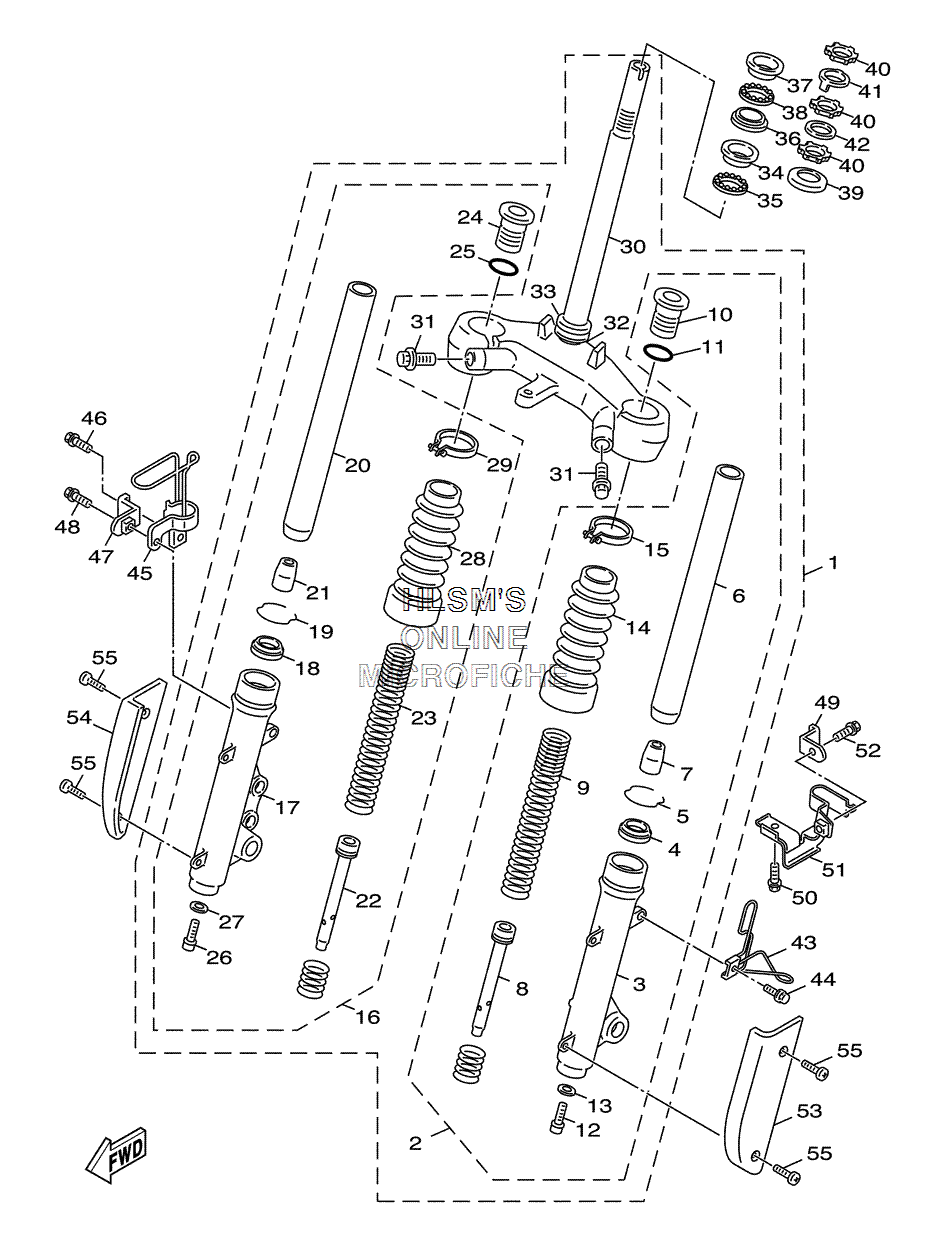

SUSPENSION - FRONT FORK для Yamaha VINO 125 - 2006 года выпуска
-
№АртикулНазвание
-
15YR-F3100-00-1V FRONT FORK ASSY.FRONT FORK ASSY.
-
25YR-F3102-00-1V ...FRONT FORK ASSY. (L.H)...FRONT FORK ASSY. (L.H)
-
35JS-F3126-10-1V ...TUBE, OUTER (LEFT)...TUBE, OUTER (LEFT)
-
43UH-F3145-00-00 ...OIL SEAL...OIL SEAL
-
53UH-F3153-00-00 ...RING, SNAP...RING, SNAP
-
65JS-F3110-00-00 ...INNER TUBE COMP. 1...INNER TUBE COMP. 1
-
73UH-F3173-00-00 ...SPINDLE, TAPER...SPINDLE, TAPER
-
85JS-F3170-00-00 ...CYLINDER COMP., FRONT FOR...CYLINDER COMP., FRONT FOR
-
95YR-F3141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
104HP-F3111-00-00 ...BOLT, CAP...BOLT, CAP
-
113UH-F3114-00-00 ...GASKET...GASKET
-
123UH-F3181-00-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
133UH-F3158-00-00 ...GASKET...GASKET
-
143UH-F3191-00-00 ...BOOT...BOOT
-
153UH-F3192-00-00 ...BAND...BAND
-
165YR-F3103-00-1V ...FRONT FORK ASSY. (R.H)...FRONT FORK ASSY. (R.H)
-
175JS-F3136-10-1V ...TUBE, OUTER (RIGHT)...TUBE, OUTER (RIGHT)
-
183UH-F3145-00-00 ...OIL SEAL...OIL SEAL
-
193UH-F3153-00-00 ...RING, SNAP...RING, SNAP
-
205JS-F3110-00-00 ...INNER TUBE COMP. 1...INNER TUBE COMP. 1
-
213UH-F3173-00-00 ...SPINDLE, TAPER...SPINDLE, TAPER
-
225JS-F3170-00-00 ...CYLINDER COMP., FRONT FOR...CYLINDER COMP., FRONT FOR
-
235YR-F3141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
244HP-F3111-00-00 ...BOLT, CAP...BOLT, CAP
-
253UH-F3114-00-00 ...GASKET...GASKET
-
263UH-F3181-00-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
273UH-F3158-00-00 ...GASKET...GASKET
-
283UH-F3191-00-00 ...BOOT...BOOT
-
293UH-F3192-00-00 ...BAND...BAND
-
305YR-F3340-00-00 ...UNDER BRACKET COMP....UNDER BRACKET COMP.
-
314TE-F3346-00-00 ...BOLT 1...BOLT 1
-
323UH-F3462-00-00 ...SEAL, STEERING...SEAL, STEERING
-
331MH-F3411-00-00 ...RACE, BALL 1...RACE, BALL 1
-
34156-23412-00-00 RACE, BALL 2RACE, BALL 2
-
35156-2341E-00-00 RETAINER, BALL BEARINGRETAINER, BALL BEARING
-
3622F-23412-01-00 RACE, BALL 2RACE, BALL 2
-
3722F-23411-01-00 RACE, BALL 1RACE, BALL 1
-
3822F-2341E-00-00 RETAINER, BALL BEARINGRETAINER, BALL BEARING
-
394TE-F3416-00-00 COVER, BALL RACE 2COVER, BALL RACE 2
-
4090179-25615-00 NUTNUT
-
414VP-F3418-00-00 WASHER, SPECIALWASHER, SPECIAL
-
4290202-26142-00 WASHER, PLATEWASHER, PLATE
-
435JS-F3317-02-00 HOLDER, CABLEHOLDER, CABLE
-
4495807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
455JS-F5875-00-00 HOLDER, BRAKE HOSE 1HOLDER, BRAKE HOSE 1
-
4695807-06025-00 BOLT, FLANGEBOLT, FLANGE
-
475JS-F5876-00-00 HOLDER, BRAKE HOSE 2HOLDER, BRAKE HOSE 2
-
4895807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
495YR-F5876-00-00 HOLDER, BRAKE HOSE 2HOLDER, BRAKE HOSE 2
-
5090119-06821-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
515YR-F5887-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
5295807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
535JS-F3338-00-00 CAP, SIDE 1CAP, SIDE 1
-
545JS-F3339-00-00 CAP, SIDE 2CAP, SIDE 2
-
5598980-06012-00 SCREW, BINDSCREW, BIND
