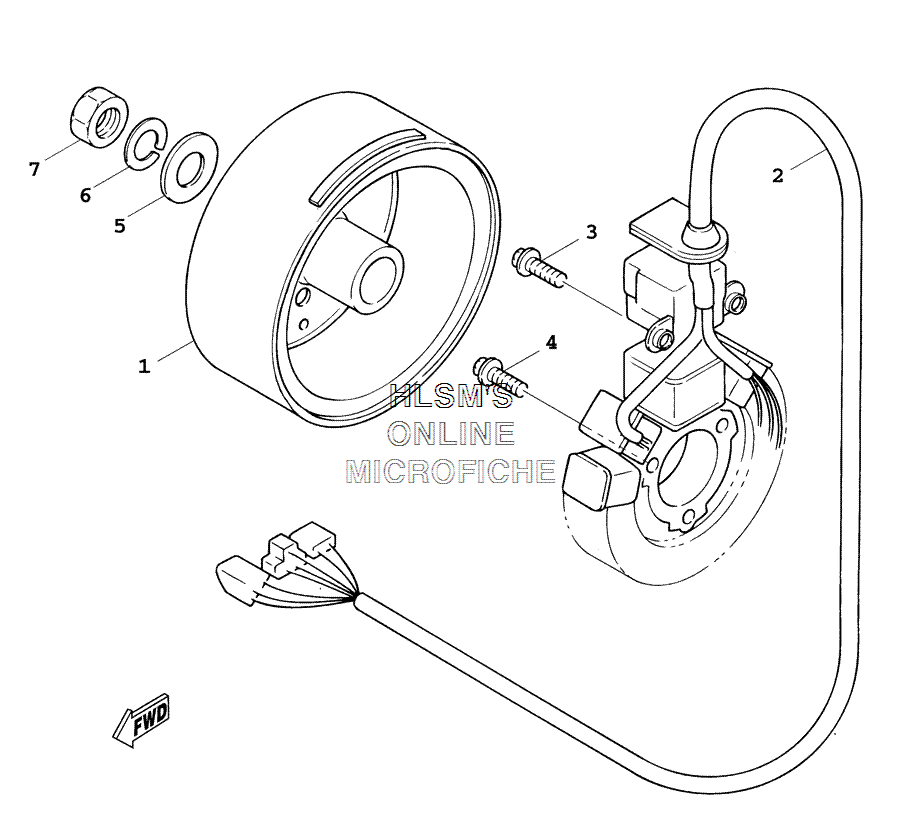

GENERATOR ASSY. для Yamaha VINO 125 - 2006 года выпуска
-
№АртикулНазвание
-
15NW-H5550-00-00 ROTOR ASSY.ROTOR ASSY.
-
25NW-H5510-01-00 STATOR ASSY.STATOR ASSY.
-
397607-06316-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
497607-06220-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
592907-12600-00 WASHER, PLATEWASHER, PLATE
-
692907-12100-00 WASHER, SPRINGWASHER, SPRING
-
790170-12181-00 NUTNUT
